Integrated Power Module C4 - Green 16 Way Connector End View
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

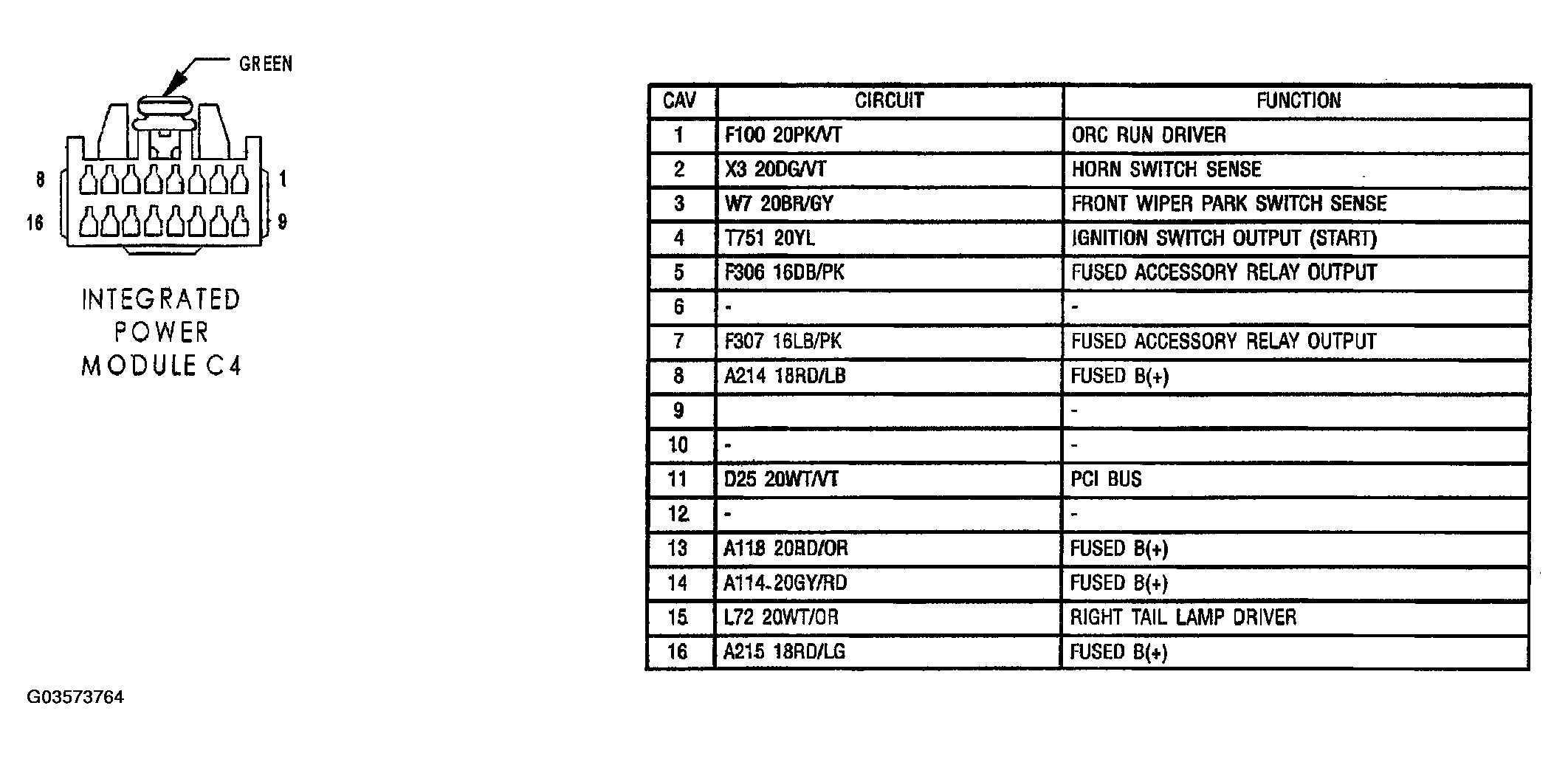

Fig 1: Integrated Power Module Connector End View (C4)
