Front Wiper Arms: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

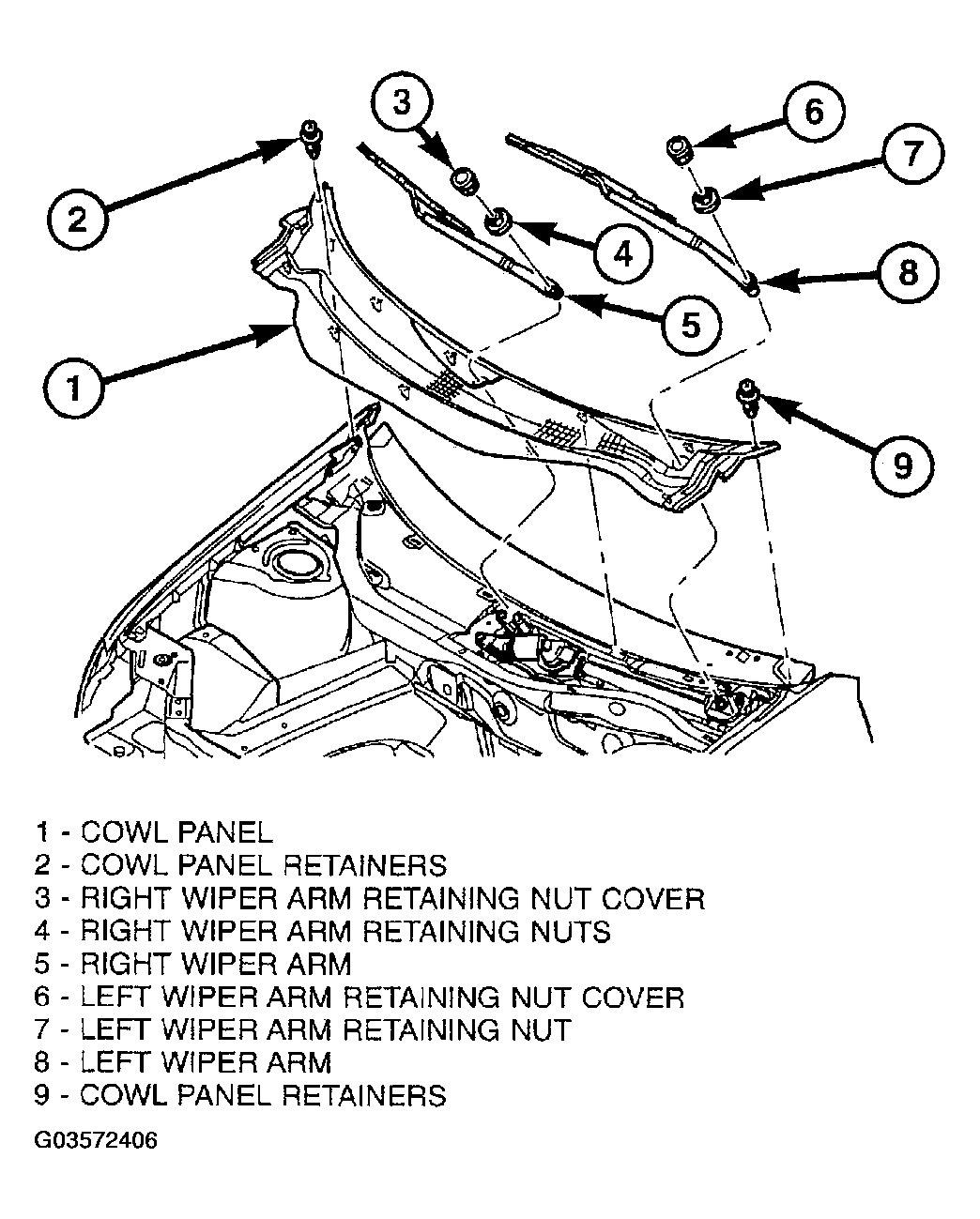

- Position the wiper arm onto the wiper arm pivot (Figure) in approximate position with the tips of the wiper blades on the tick marks at the bottom of the windshield.
- Install the nut holding wiper arm to the wiper pivot.
- Install the retaining nut cover by firmly pressing down on cover over wiper pivot.
- Check wiper arm adjustment (Refer to STANDARD PROCEDURE - FRONT WIPER ARM ALIGNMENT ).
- Verify vehicle and system operation.
