Section 951 (Cruise Control Systems): Switch: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to switch.
  2. Install switch.

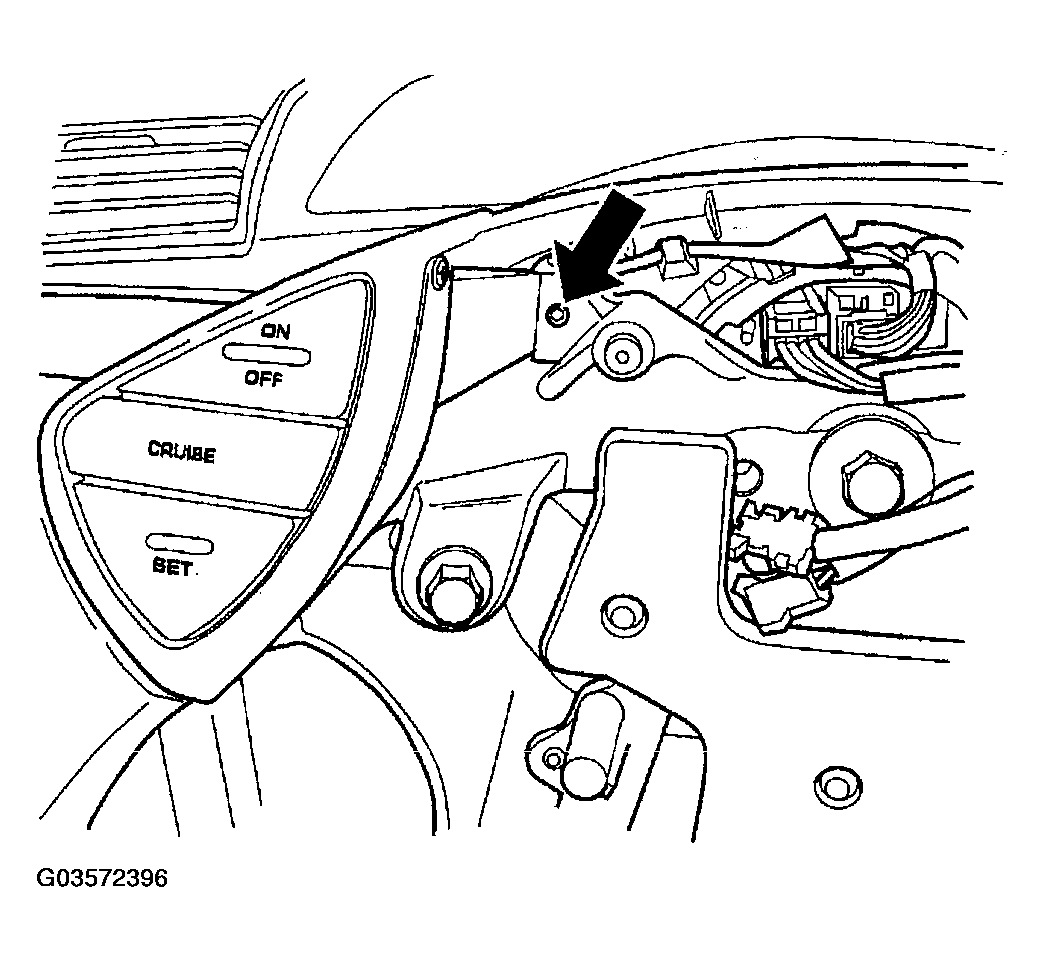

  3. Install the speed control switch mounting screw (Figure ).
  4. Tighten Screw.

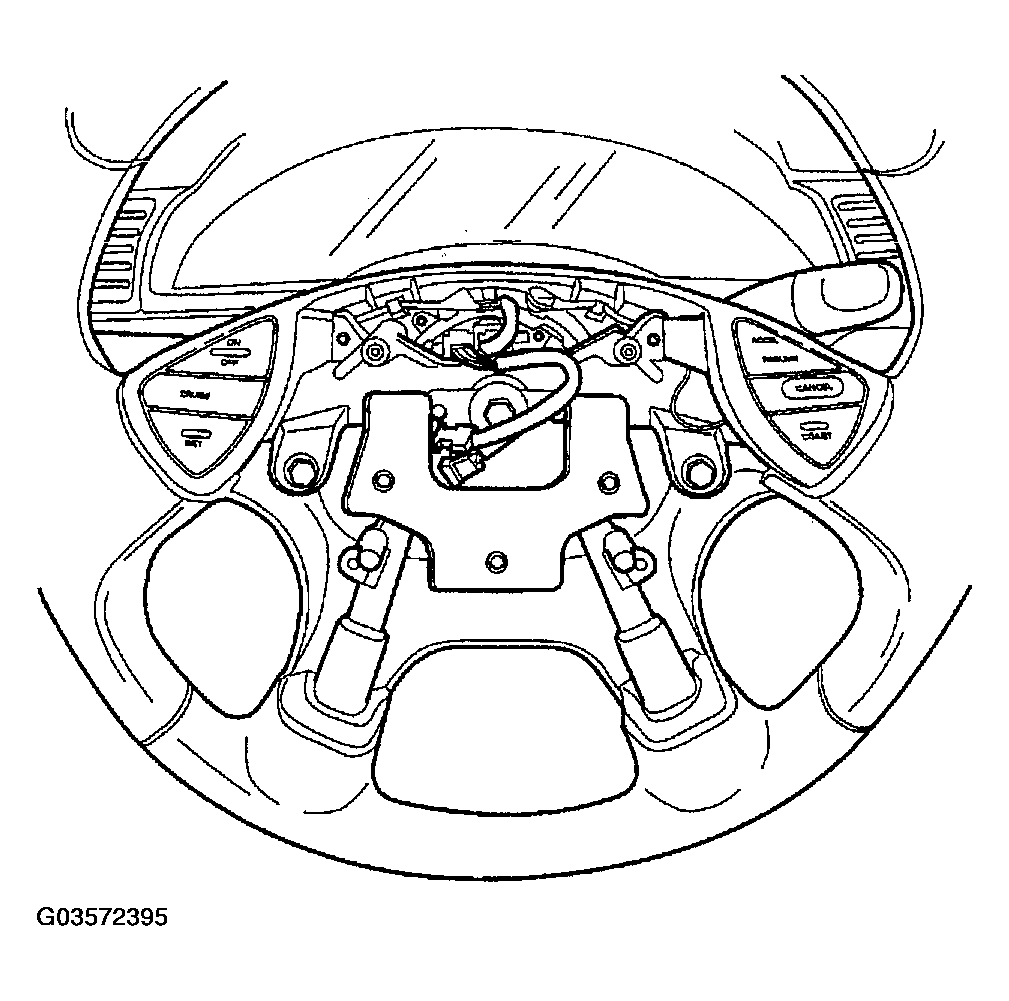

  5. Install the Driver side Airbag (Figure ), (Refer to AIR BAG RESTRAINT SYSTEMS ).
  6. Connect the negative battery cable.
