Section 925 (Hood): Overhaul

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

REMOVE HOOD MOULDING ASSY FRONT (See REPLACEMENT )
REMOVE HOOD INSULATOR
1. Using a clip remover, remove the 13 clips and insulator.
  HINT:

  If clips are damaged during removal, replace them.
REMOVE HOOD TO RADIATOR SUPPORT SEAL
1. Using a clip remover, remove the 10 clips and seal.
  HINT:

  If clips are damaged during removal, replace them.
REMOVE HOOD SUPPORT ASSY RH (See REPLACEMENT )
REMOVE HOOD LOCK ASSY
1. Using a clip remover, disengage the 2 claws and remove the cover.
  HINT:

  Tape the screwdriver tip before use.

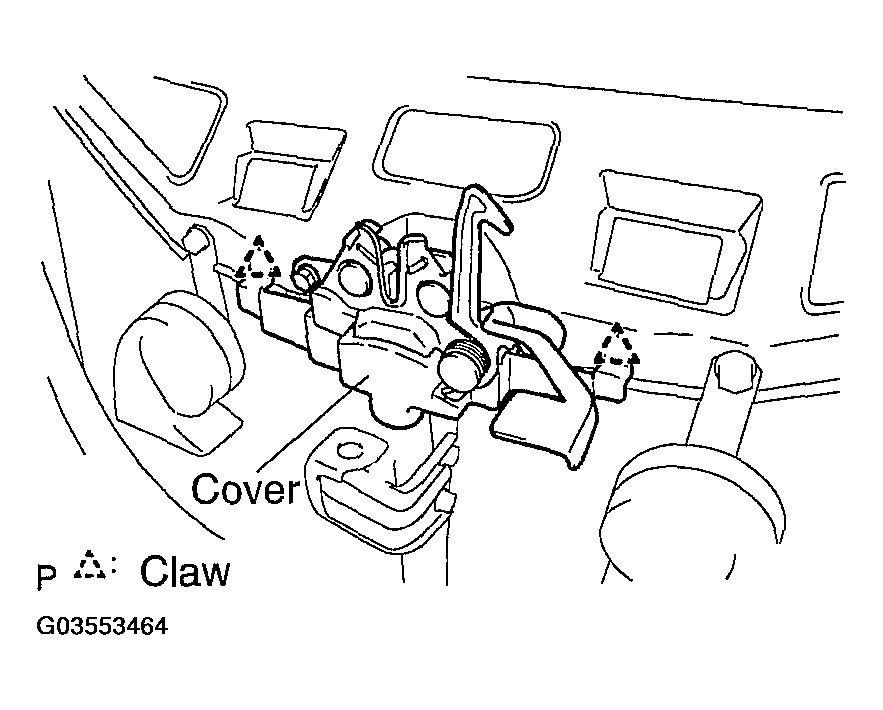

  Fig 1: Disengaging Claws & Removing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 bolts and lock.
3. Disconnect the connector and cable.

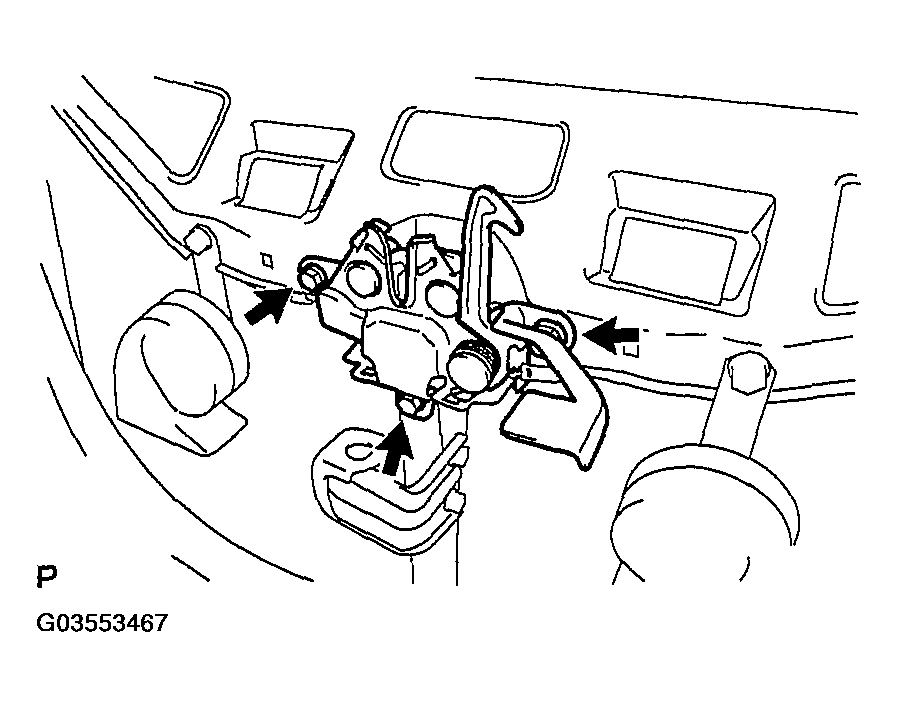

  Fig 2: Removing Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD LOCK CONTROL CABLE ASSY
1. Remove the cable, as shown in Fig 3 .

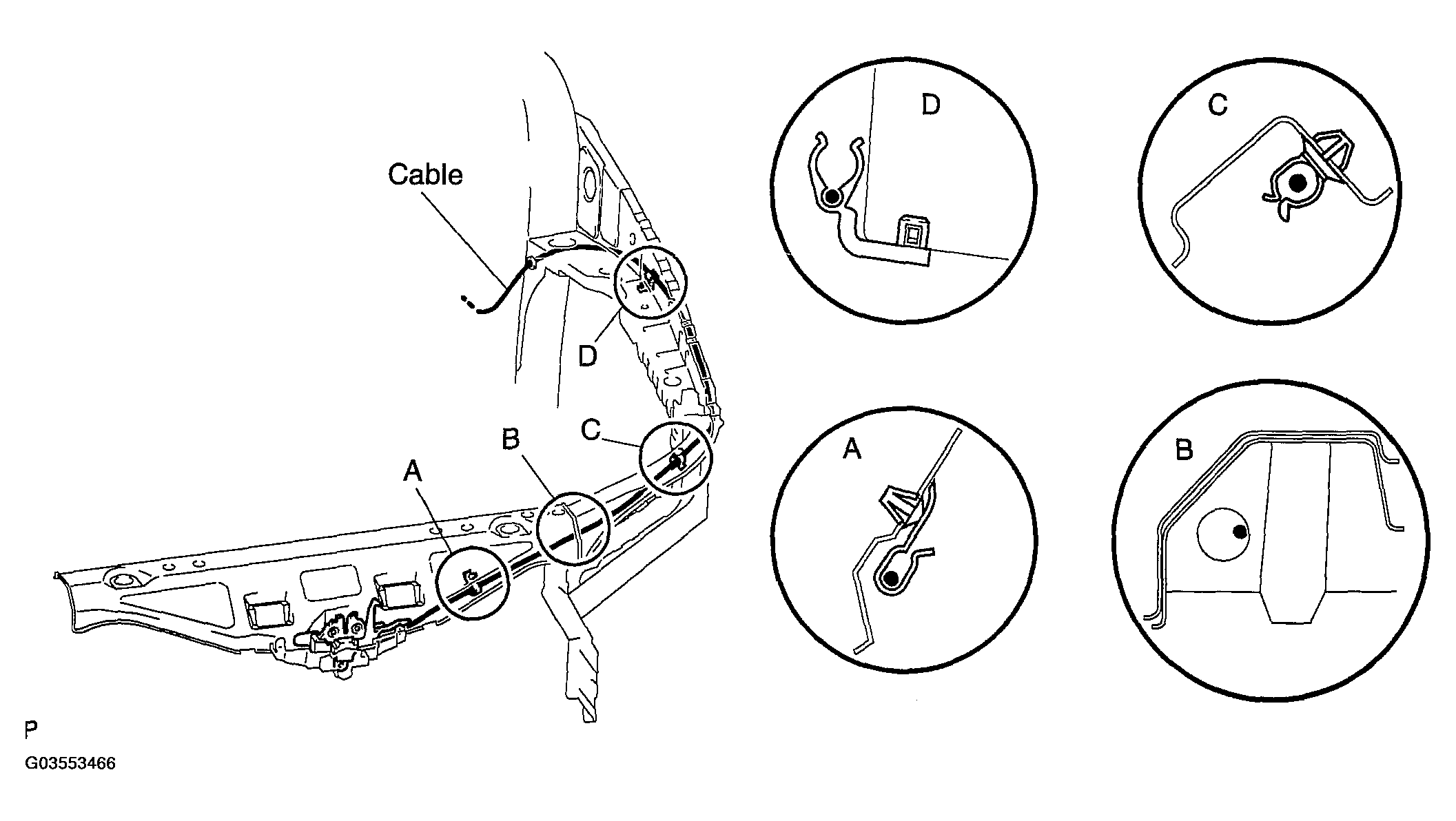

  Fig 3: Removing Hood Lock Control Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HOOD LOCK CONTROL LEVER SUB-ASSY
1. Remove the 2 screws and lever.
2. Disengage the cable from the lever.
INSTALL HOOD LOCK ASSY
1. Install the lock with the 3 bolts.
  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
2. Adjust the hood lock (see ADJUSTMENT ).

  Fig 4: Installing Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the cover.

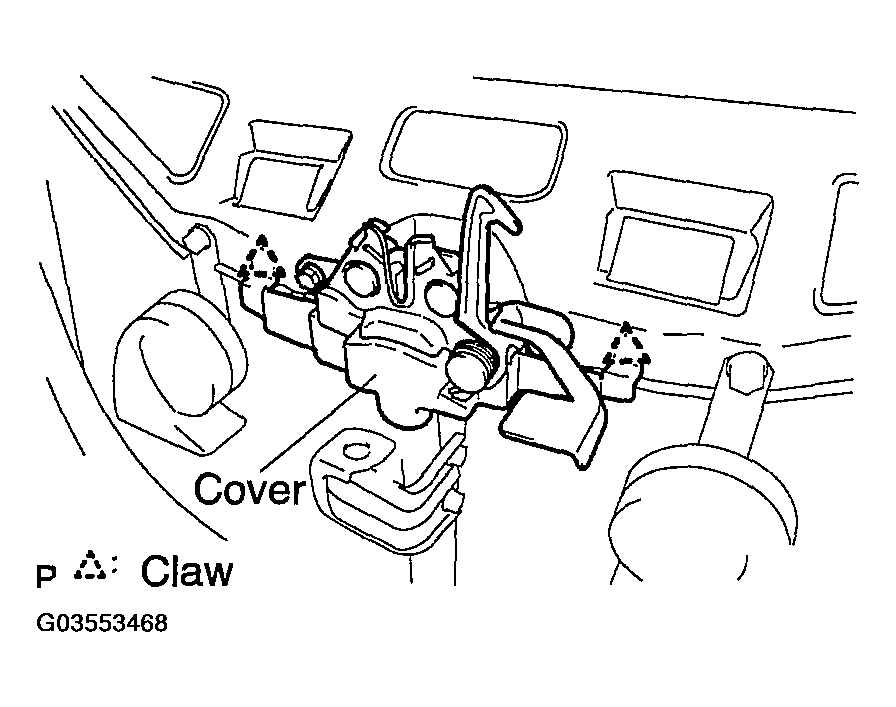

  Fig 5: Installing Cover
