DTC B2795/99: Unmatched Key Code: Notes

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

This DTC is output when an unregistered key is inserted. When this DTC is output, delete, DTC and insert the key that a customer keeps to check that B2795 is output.

When a key that outputs B2795 is found, register this key, when B2795 is not output, there is a possibility that the unregistered key has been inserted before. (ECM is normal.)

Inquire a customer the condition of using the system to find the cause of the trouble.

(Example: Another key has been inserted, etc.)

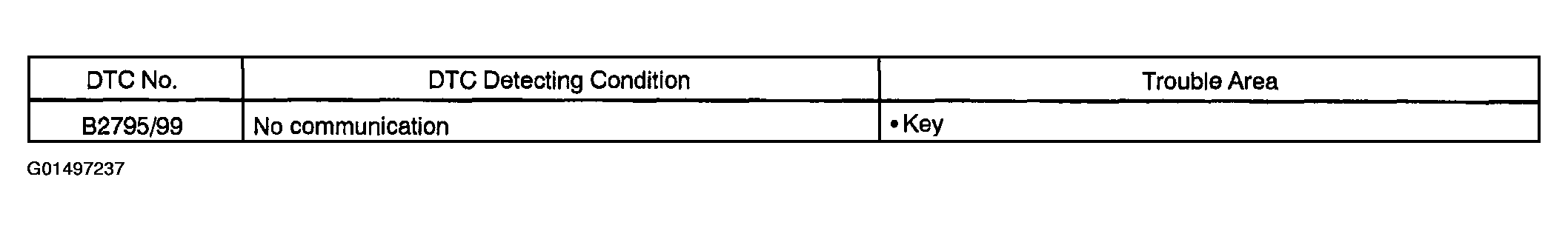

Fig 1: DTC B2795/99 Table
G01497237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
