Terminals Of ECM

WARNING: This page is about a different car, the 2004 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

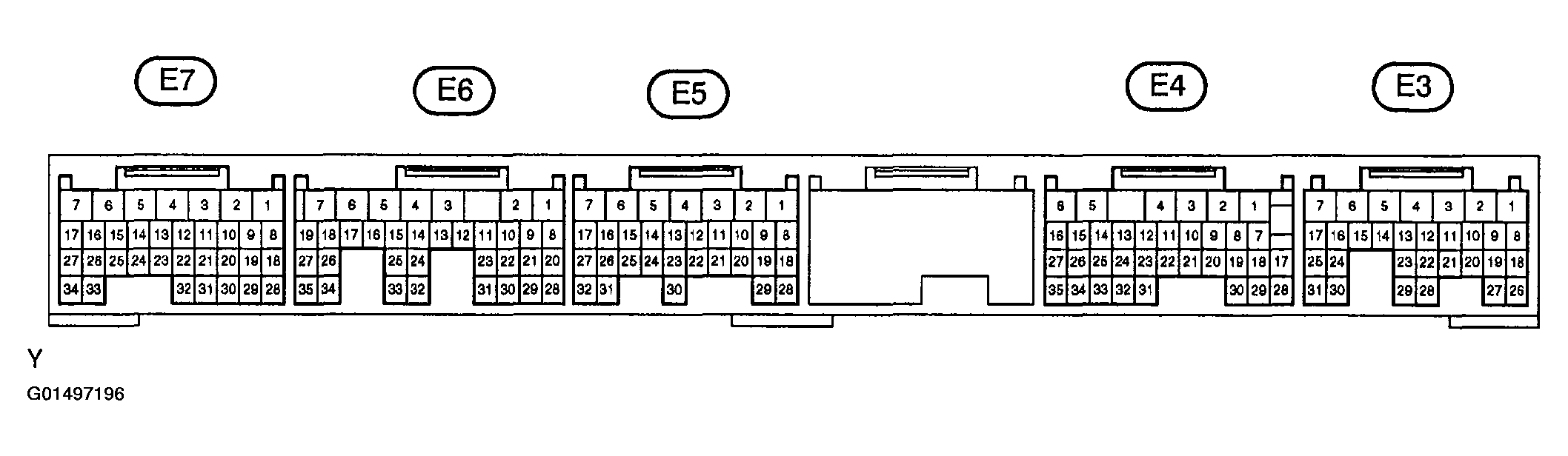

Fig 1: Identifying Terminals Of ECM
G01497196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

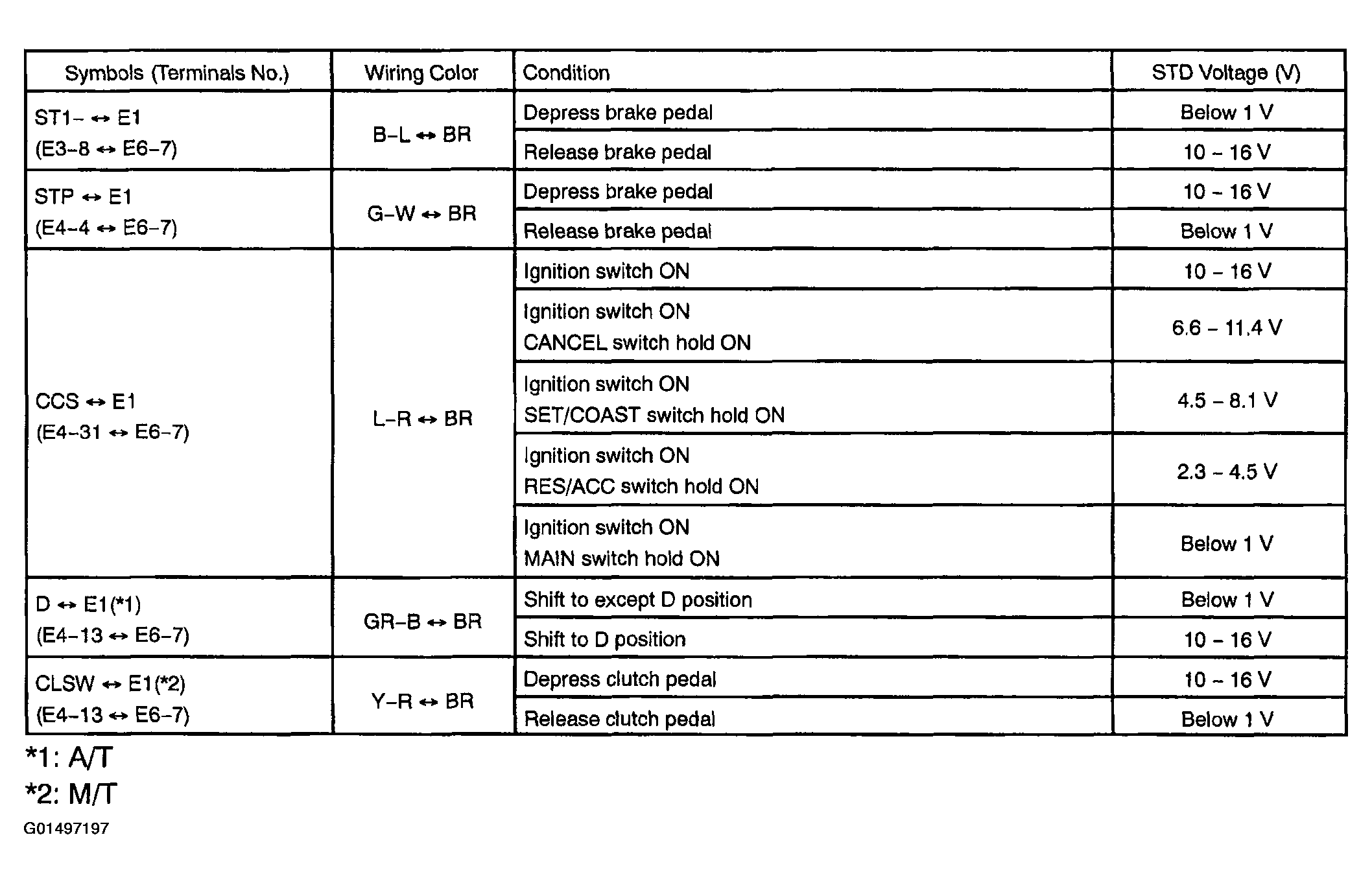

Fig 2: ECM Terminals Reference Chart
G01497197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
