Section 672 (Audio & Visual System): Components
WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

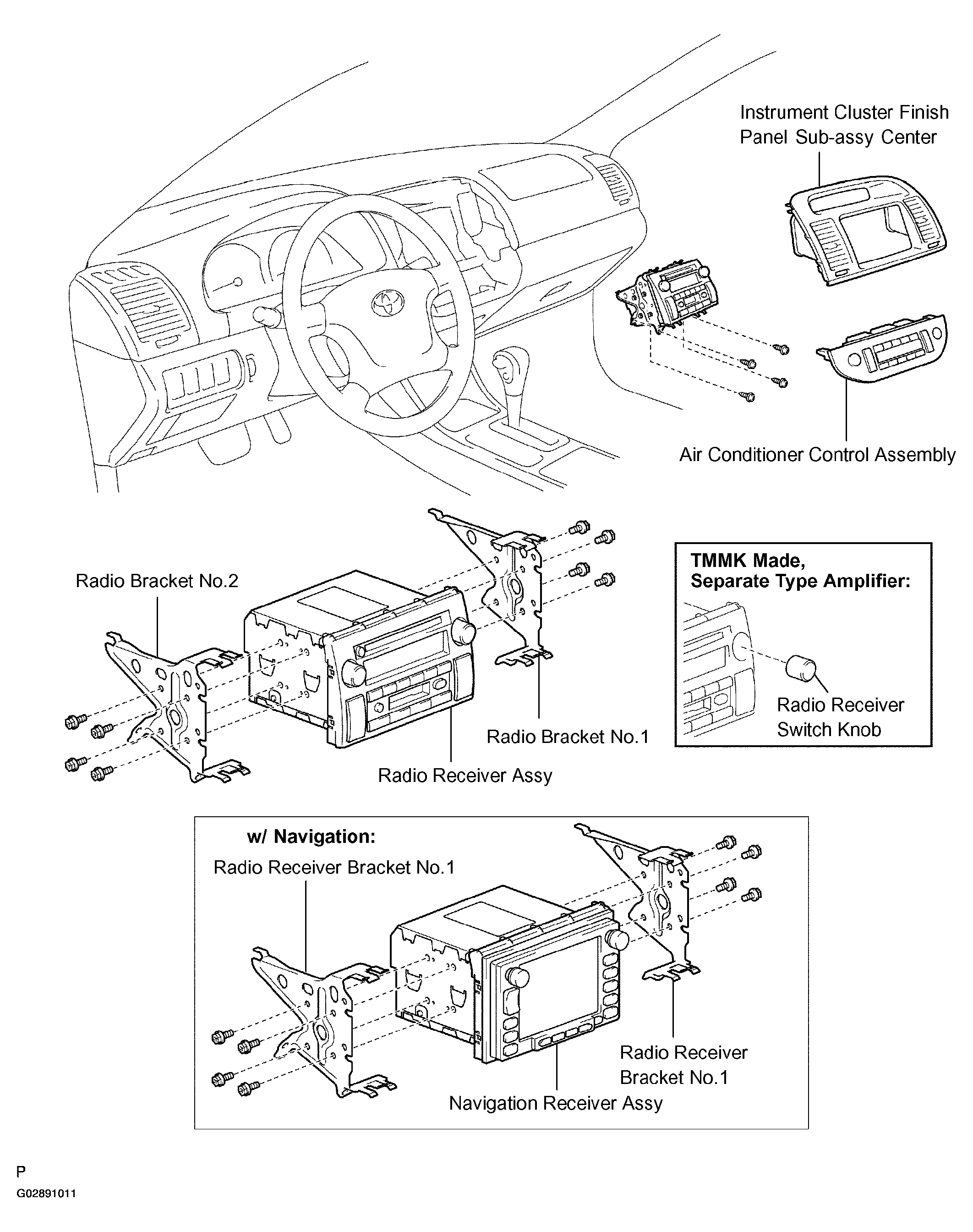

Fig 1: Exploded View Of Audio And Visual System (1 Of 2)
