Inspection Procedure

WARNING: This page is about a different car, the 2002 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT LH

Connect 3 batteries (1.5 V) in series.
Connect the battery positive terminal to terminal SHB, and the negative one to terminal SHG to apply the voltage of 4.5 V between terminals SHB and SHG.
While slowly move the link up and down with the voltage being applied, check the voltage between terminals SHFL and SHG.

Standard:

HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT LH INSPECTION

Link angle	STP Voltage (V)
+45° (High)	4.5
0° (Normal)	2.5
-45° (Low)	0.5

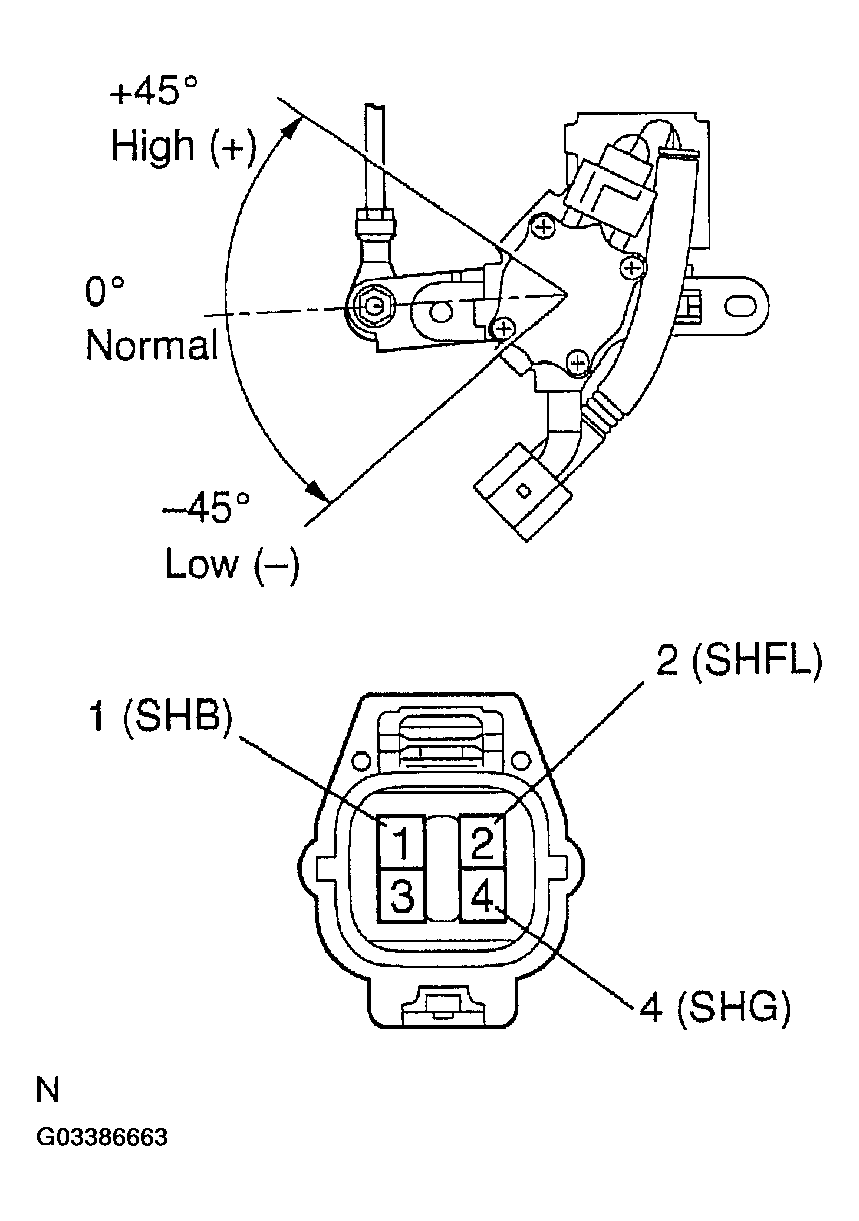

Fig 1: Inspecting Height Control Sensor Sub-Assembly Front LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE HEIGHT CONTROL SENSOR SUB-ASSEMBLY FRONT LH
OK: GO TO NEXT STEP.

INSPECT HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH

Connect 3 batteries (1.5 V) in series.
Connect the battery positive terminal to terminal SHB, and the negative one to terminal SHG to apply the voltage of 4.5 V between terminals SHB and SHG.
While slowly move the link up and down with the voltage being applied, check the voltage between terminals SHFL and SHG.

Standard:

INSPECT HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH INSPECTION

Link angle	STP Voltage (V)
+45° (High)	4.5
0° (Normal)	2.5
-45° (Low)	0.5

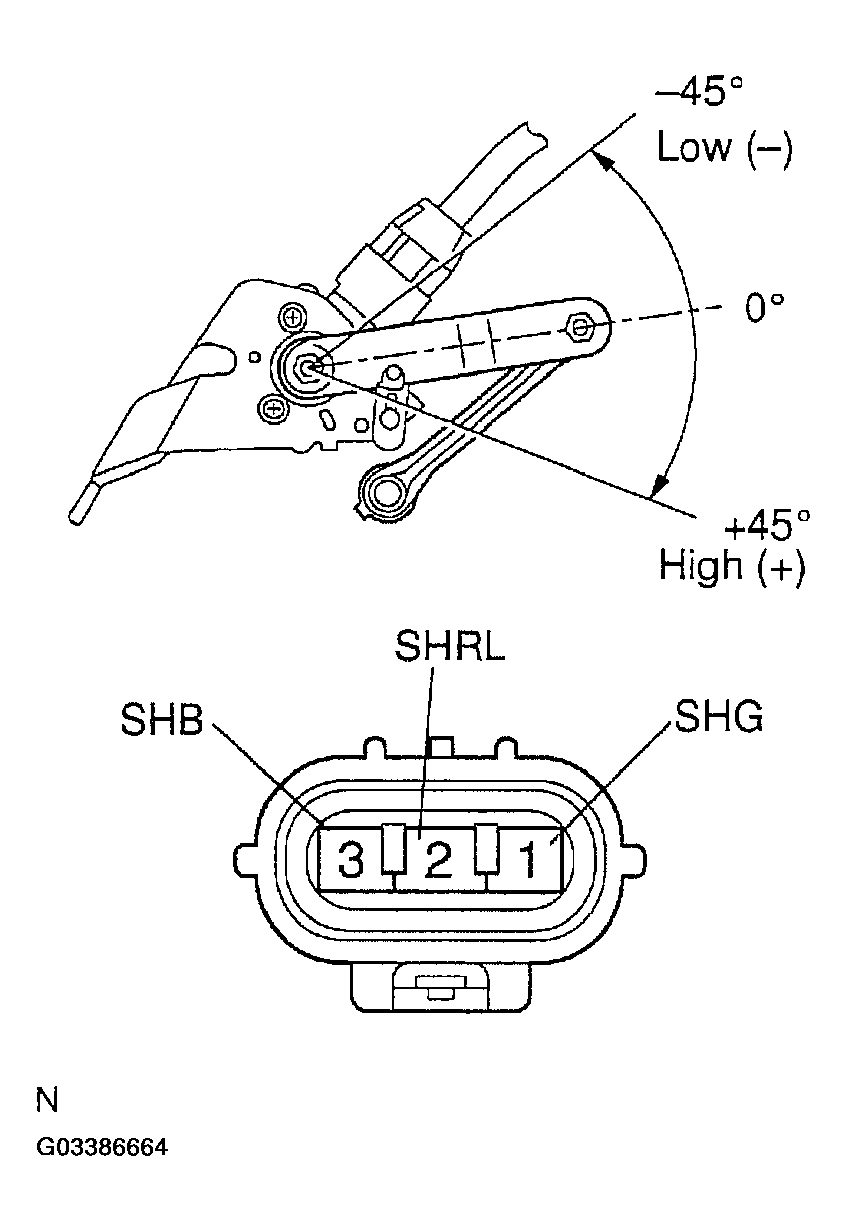

Fig 2: Inspecting Height Control Sensor Sub-Assembly Rear LH

NG: REPLACE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR LH
OK: GO TO NEXT STEP.

CHECK HARNESS AND CONNECTOR
1. Check for open and short circuit in harness and connector between headlamp leveling ECU and height control sensor.
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: REPLACE HEADLAMP LEVELING ECU ASSEMBLY
