Section 593 (Rear A/C Unit): Components
WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

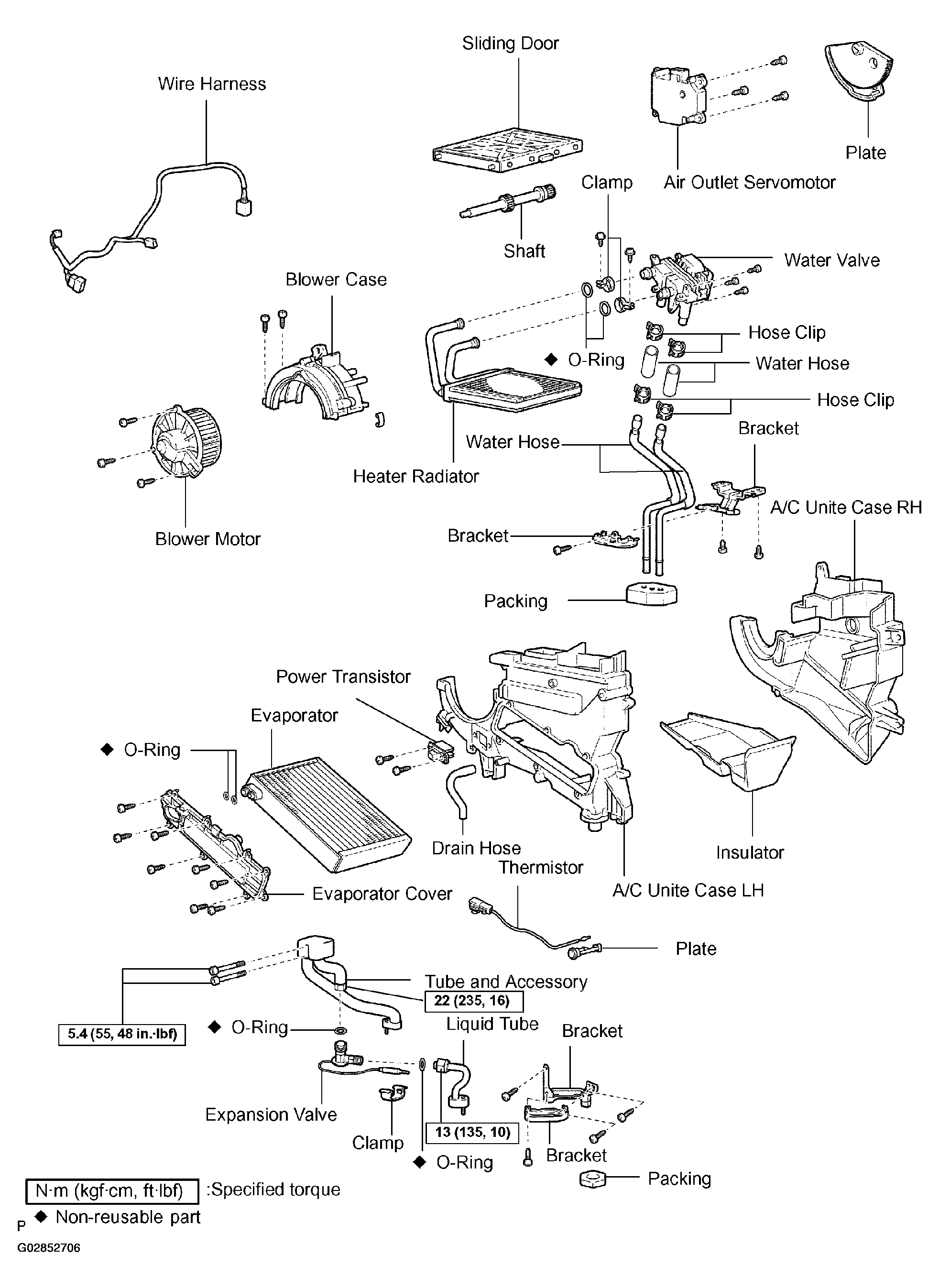

Fig 1: Identifying Rear A/C Unit Components (1 Of 2)
