Diagnostic Trouble Codes Check/Clear

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DTC
1. Connect the hand-held tester (with CAN VIN) to the DLC3 through the CAN VIN (controller area network vehicle interface module).
2. Turn the power switch ON (IG).
3. Read DTCs by following the prompts on the hand-held tester screen.
HINT:

Refer to the tester operator's manual for further details.

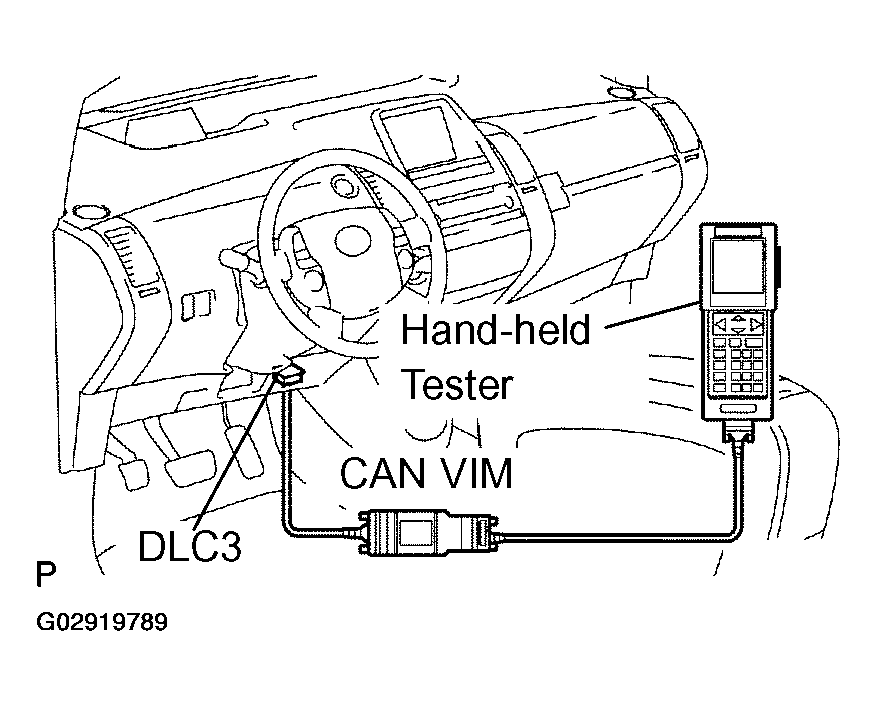

Fig 1: Connecting Hand Held Tester (With CAN VIN) To DLC3 Through CAN VIN
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CLEAR DTC
1. Connect the hand-held tester (with CAN VIN) to the DLC3 through the CAN VIM.
2. Turn the power switch ON (IG).
3. Erase the DTCs by following the prompts on the tester screen.
HINT:

Refer to the hand-held tester operator's manual for further details.
