Air Conditioning Unit: Reassembly

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEATER RADIATOR
1. Push into the heater radiator to the A/C unit case.
2. Install the 4 screws and 3 clamps.
3. Install the passenger air duct subassembly.

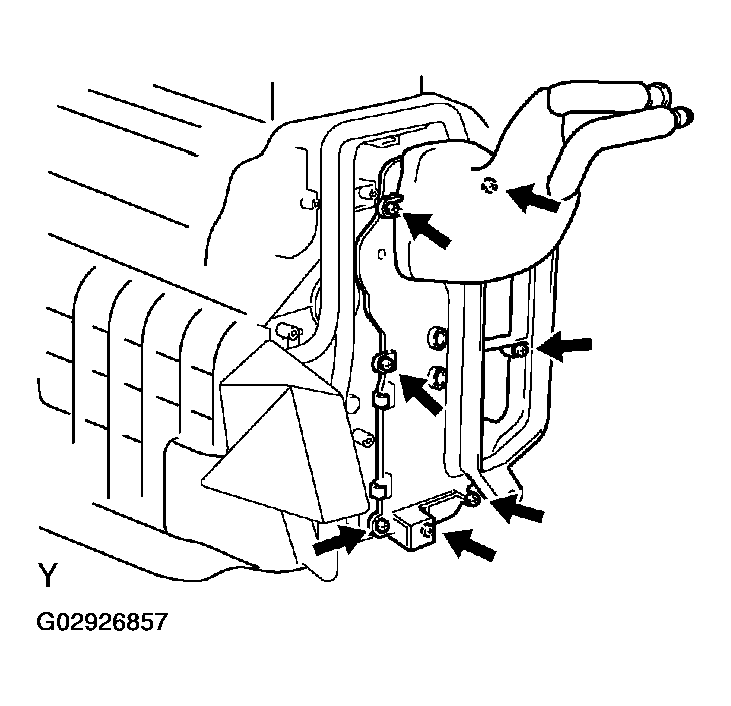

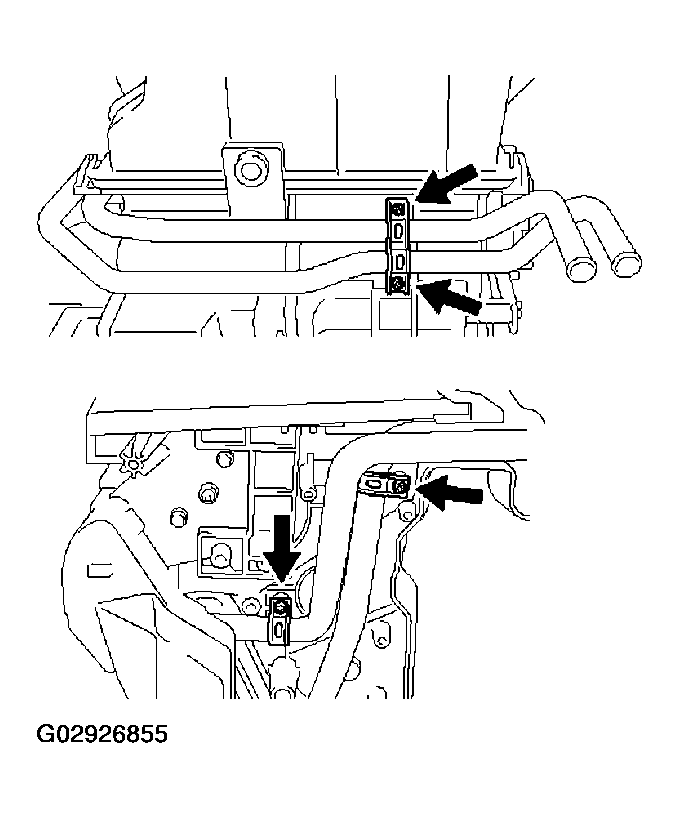

  Fig 1: Installing 4 Screws, 3 Clamps & Heater Radiator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL EXPANSION VALVE
1. Coat 4 new O-rings with the compressor oil.
2. Using a 5 mm hexagon wrench, install the expansion valve to the evaporator with the 2 bolts.
  Torque: 3.5 N.m (36 kgf.cm, 31 in.lbf)

  Fig 2: Installing Expansion Valve With Using 5 MM Hexagon Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL EVAPORATOR
1. Install the evaporator with the 7 screws.
2. Wrap the packing.
  If evaporator was replaced, add compressor oil to the compressor.

  Add 40 cc (1.4 fl.oz.)

  Compressor oil: ND-OIL 8 or equivalent

  Fig 3: Installing Evaporator With 7 Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THERMISTOR
1. Install the thermistor to the bracket plate as shown in Fig 4.
2. Push into the thermistor to the A/C unit case.
3. Connect the connector clamp.
