Terminals Of Ecu

WARNING: This page is about a different car, the 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

Body ECU

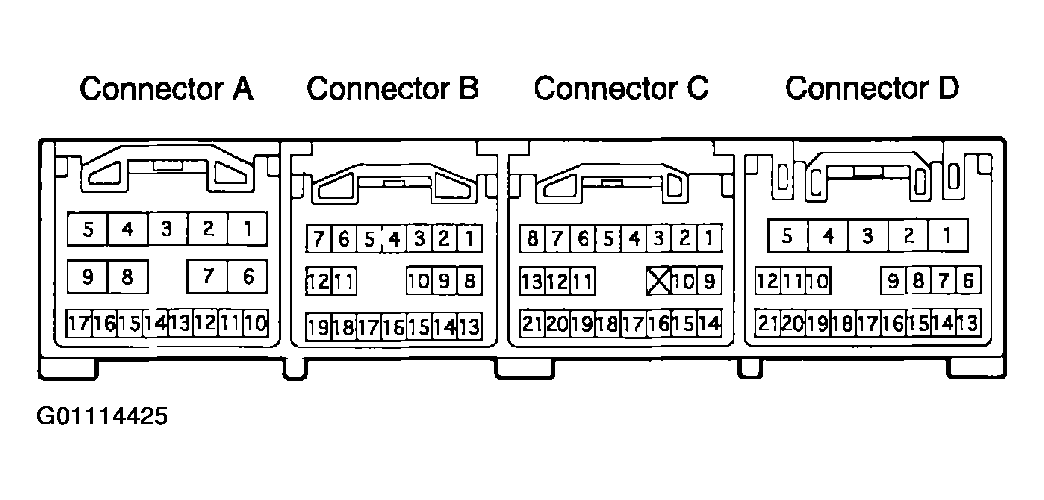

Fig 1: Identifying ECU Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect body ECU connectors A, C and D.

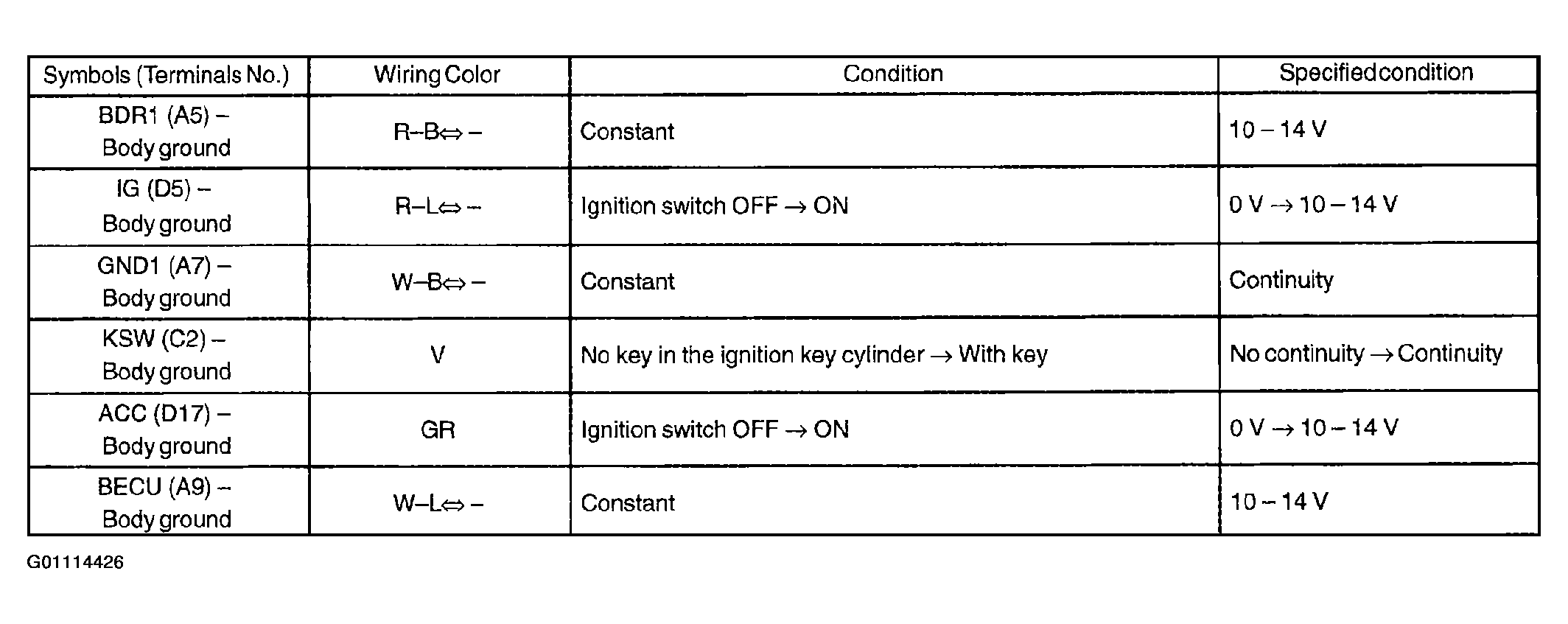

  Fig 2: Reviewing ECU Connector Information (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the body ECU connectors A, C and D.

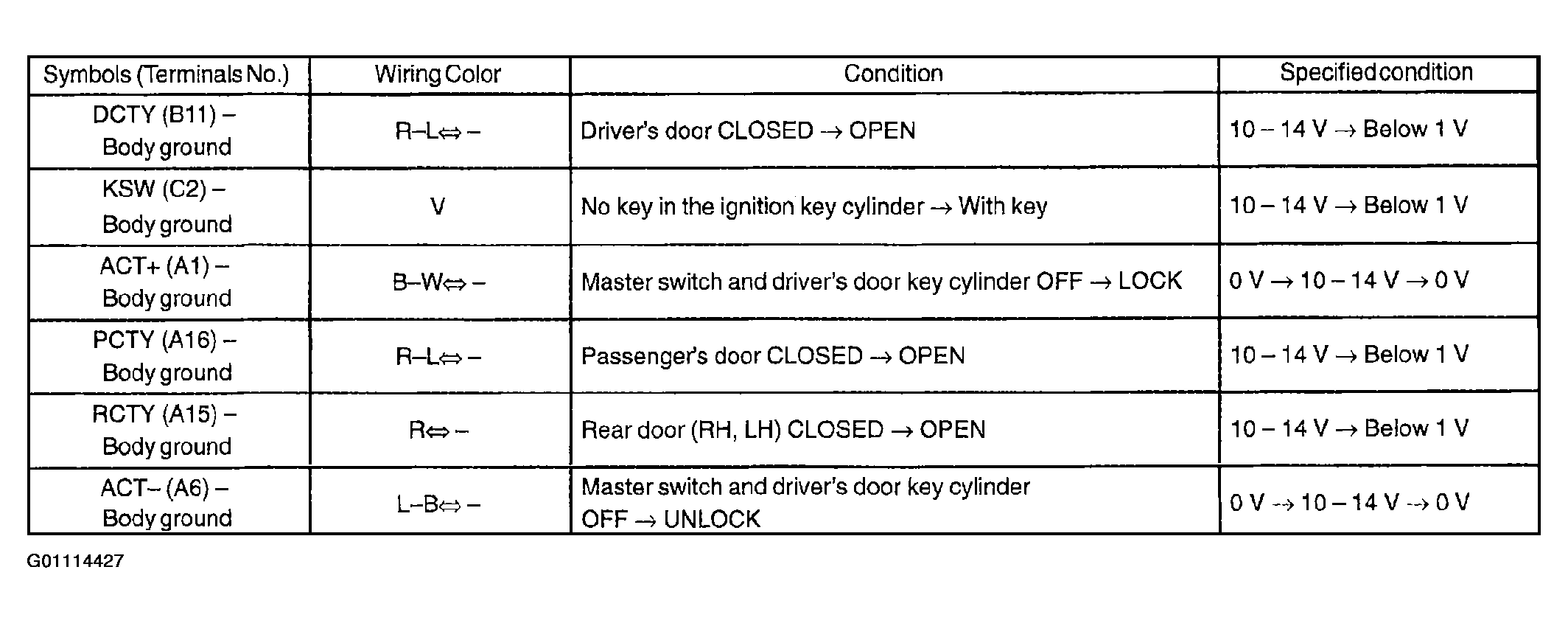

  Fig 3: Reviewing ECU Connector Information (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
