Lower Control Arm: Notes

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

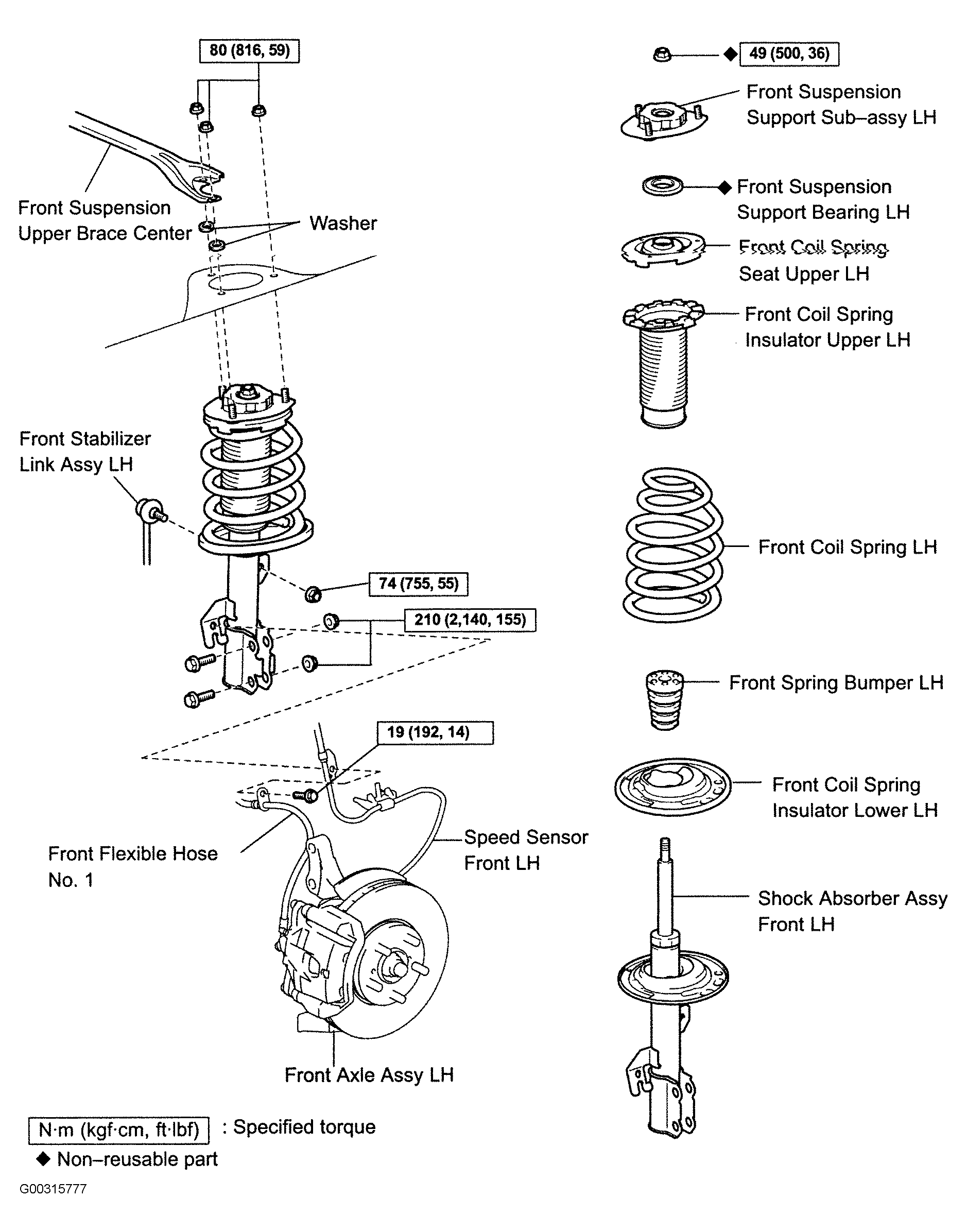

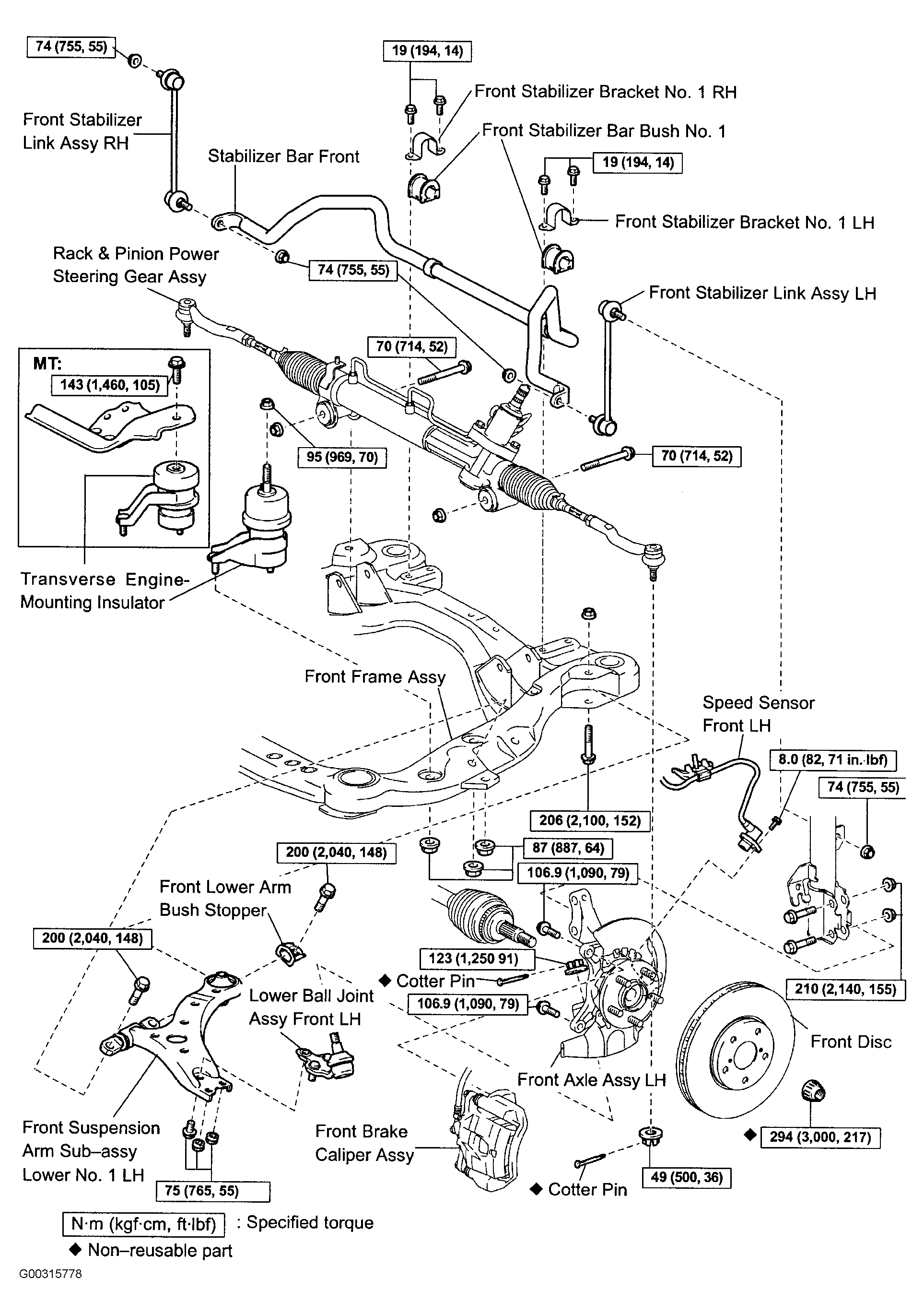

For front suspension component view, see, Figure and Figure .
