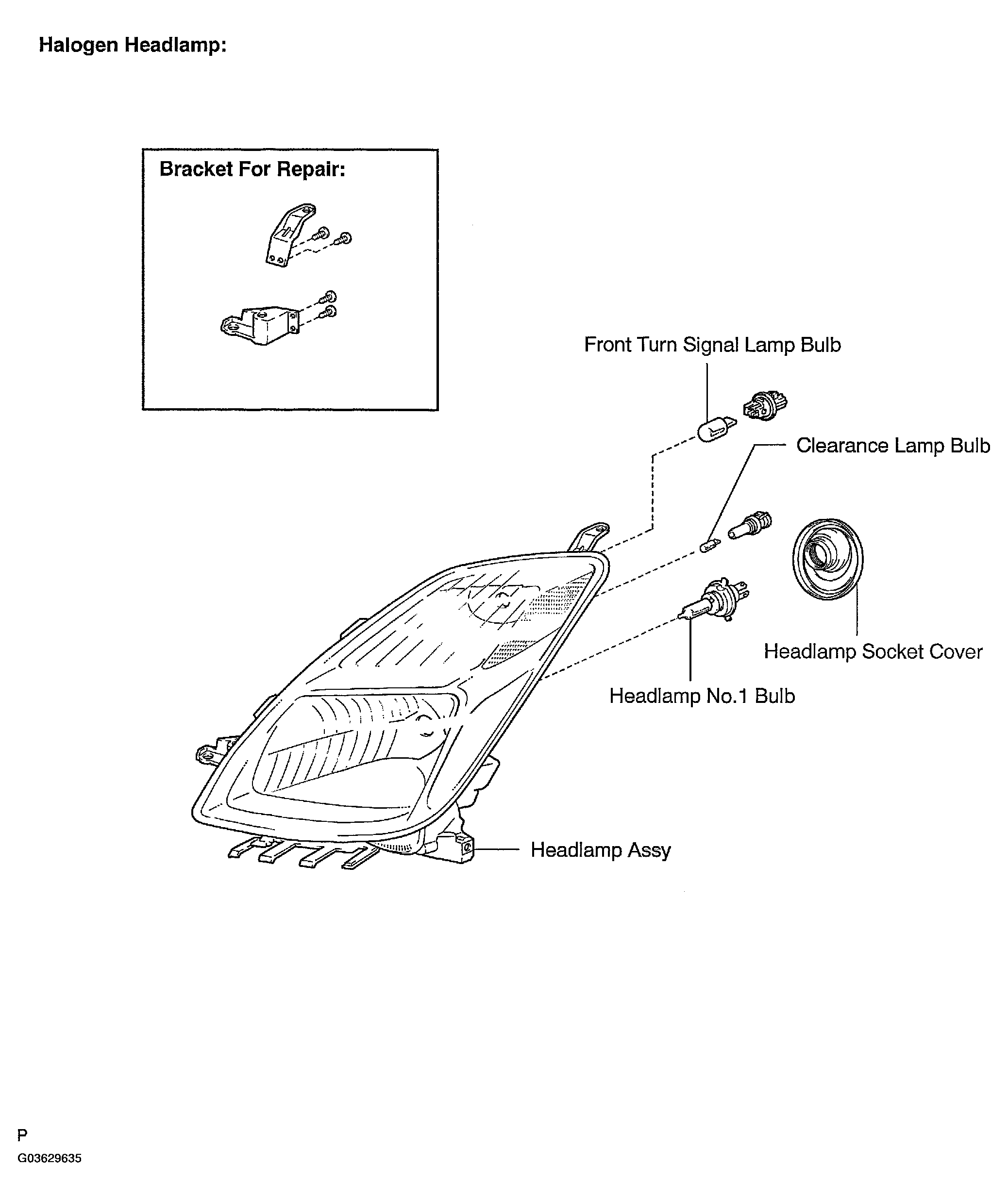

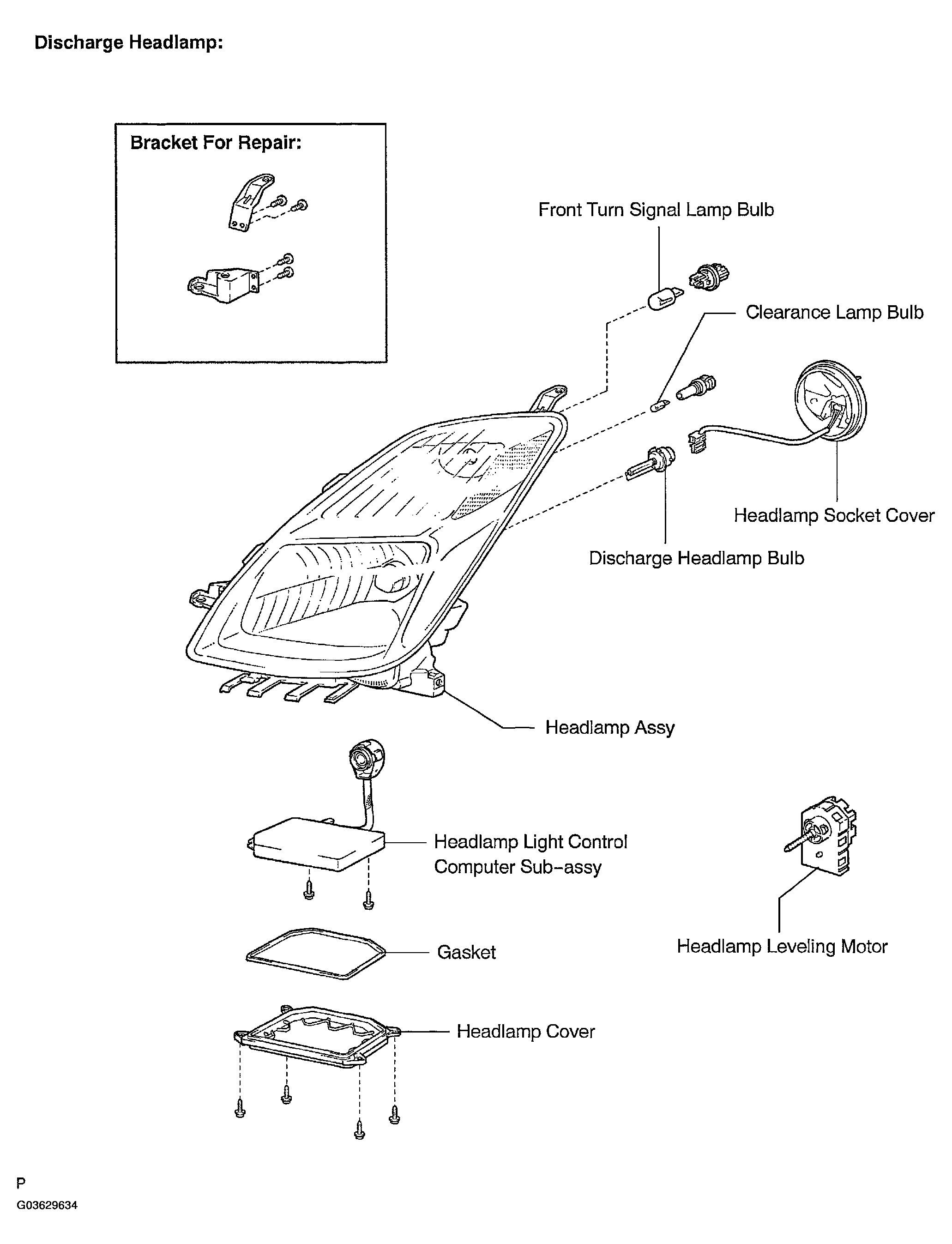

Section 1036 (Lighting System): Headlight: Components
WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
Parts are shown for the LH side only. The LH and RH side are symmetrical.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
