Combination Meter ASSY: Overhaul

  1. REMOVE METER HOOD SUB-ASSY (See  REPLACEMENT   )
  2. REMOVE COMBINATION METER ASSY
    1. Remove the screw.
    2. Disengage the 2 claws as shown in Fig 1 .

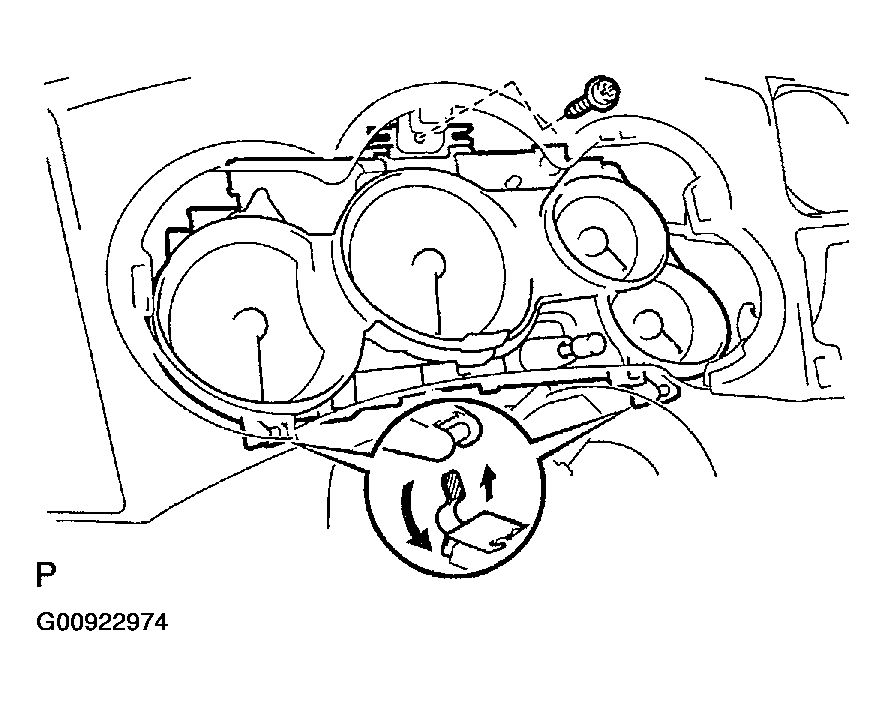

      Fig 1: Disengaging Claws
      G00922974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect connector, then remove the combination meter assy, as shown in Fig 2 .

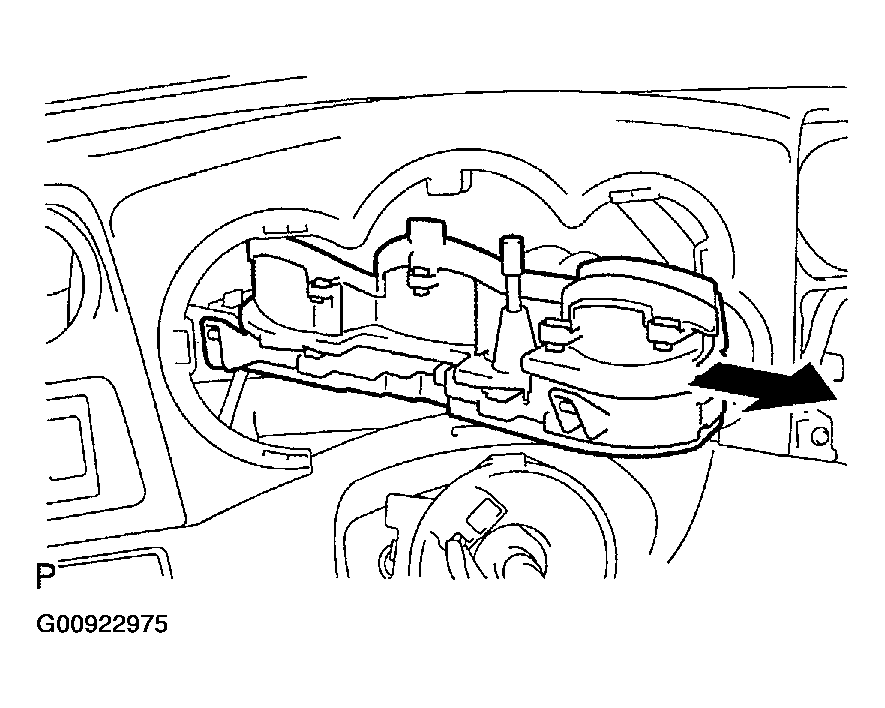

    Fig 2: Disconnecting Connector And Removing Combination Meter Assy
    G00922975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COMBINATION METER GLASS
    1. Remove the trip knob.
    2. Disengage the 10 claws and remove the window plate.

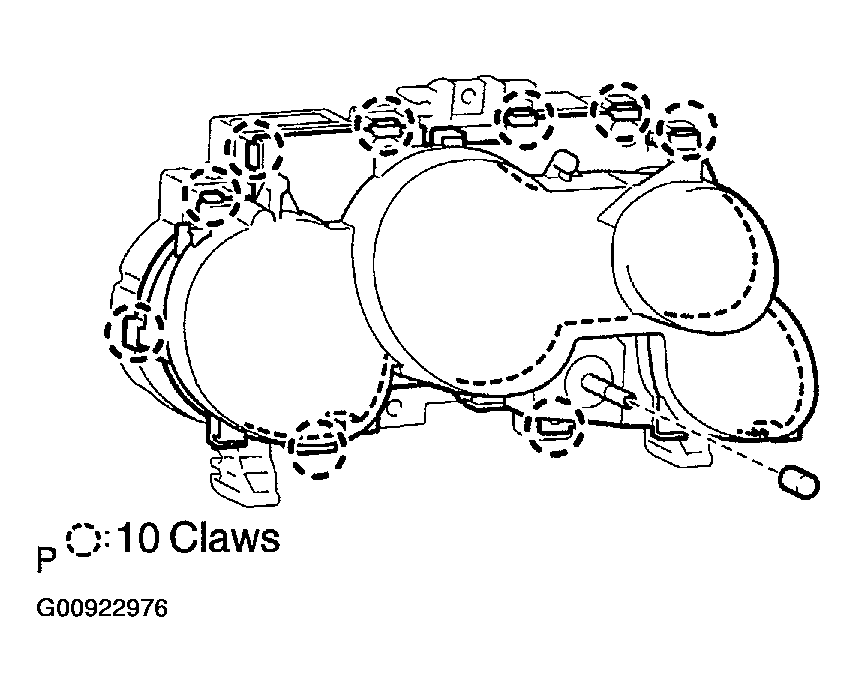

      Fig 3: Disengaging Claws And Removing Window Plate
      G00922976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 8 claws and remove the combination meter glass.
    Fig 4: Disengaging Claws And Removing Combination Meter Glass
    G00922977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
