Map Disc Cannot Be Inserted: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

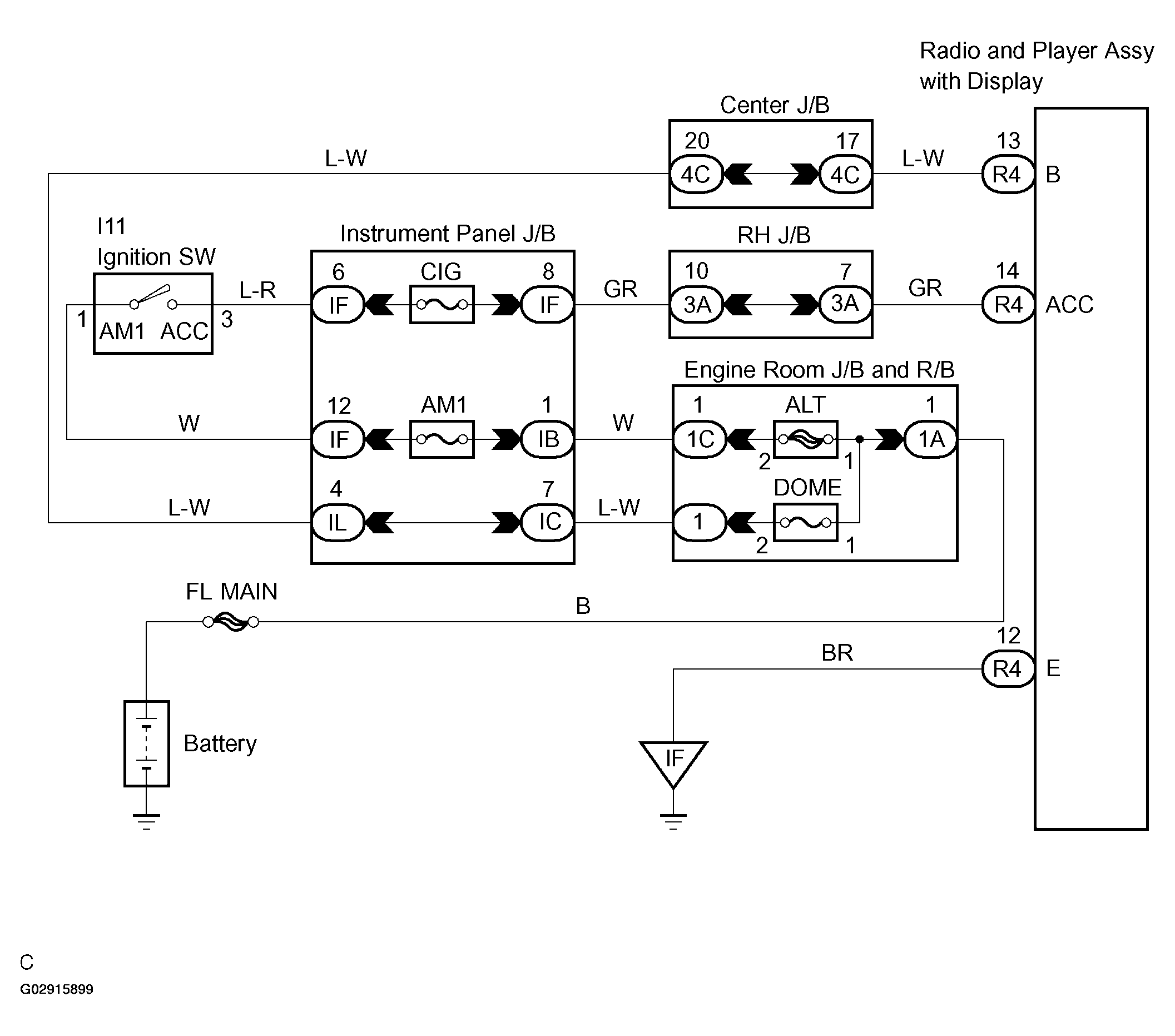

Fig 1: Radio & Player Wiring Diagram (W/Display)
G02915899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
