System Specifications
Automatic Transmission/Transaxle - Service Data Part 1:
Automatic Transmission/Transaxle - Service Data Part 2:

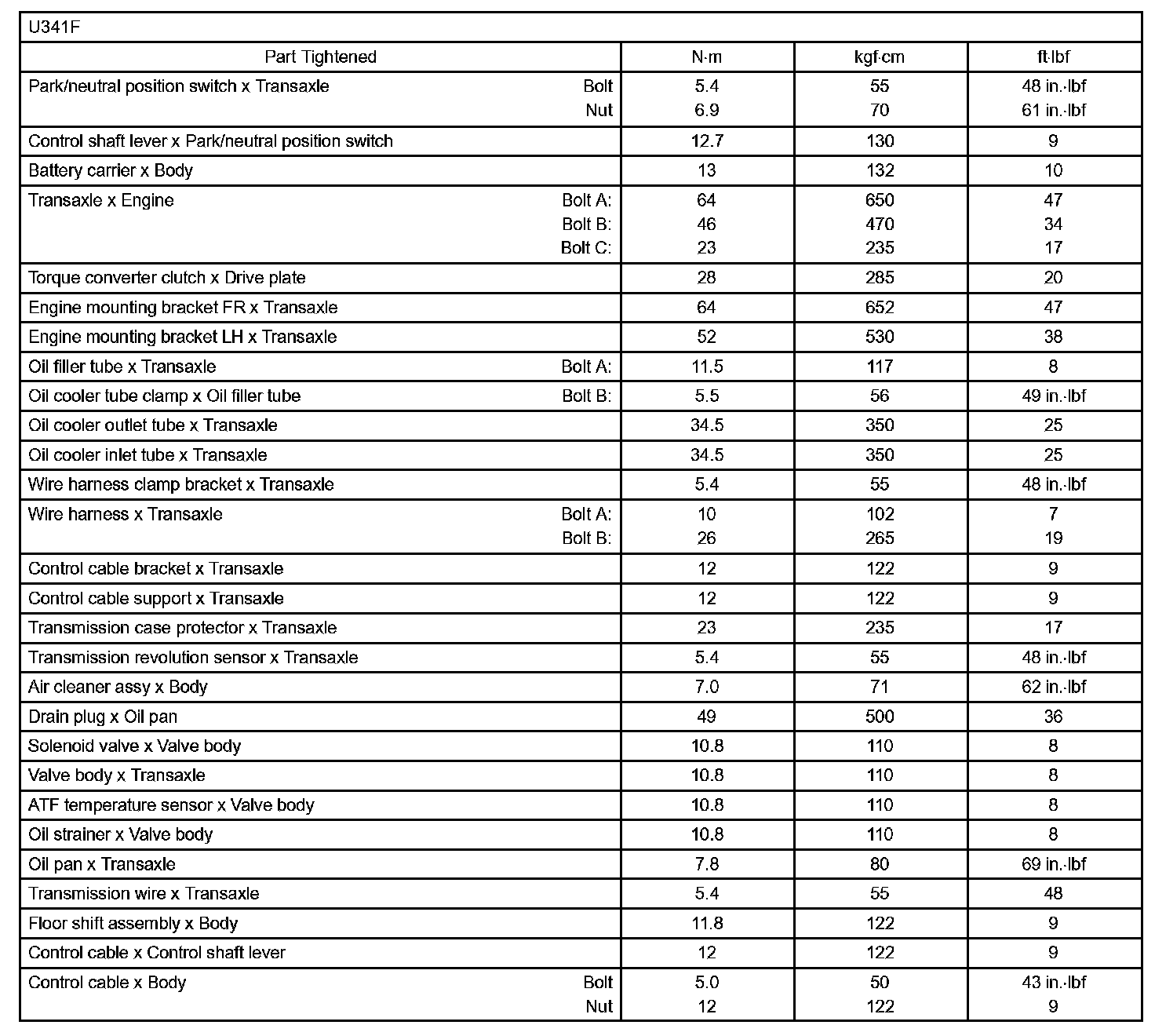

Automatic Transmission/Transaxle - Torque Specification Part 2:
