Main Relay (Computer/Fuel System): Locations

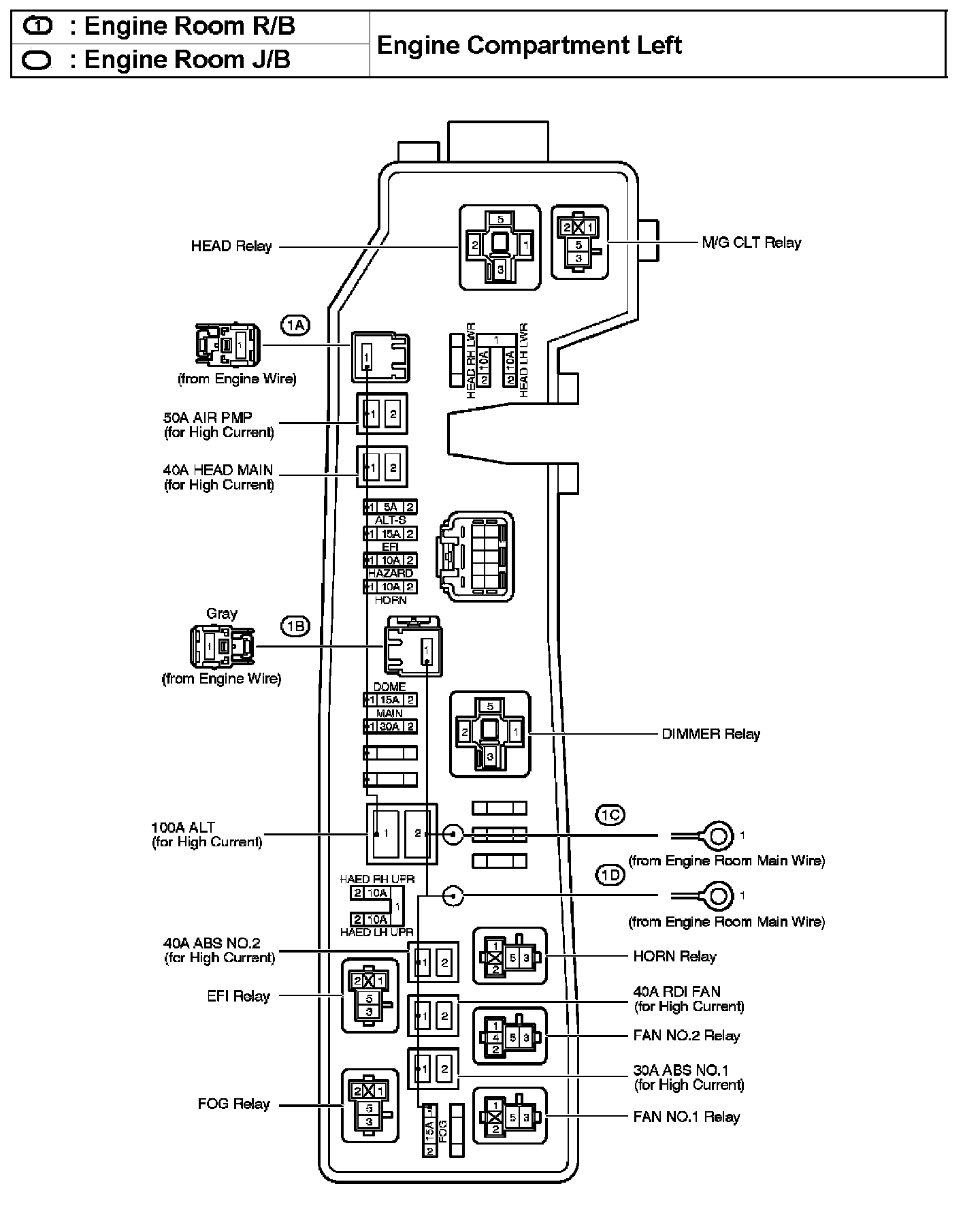

Engine Room R/B, J/B - Engine Compartment Left:

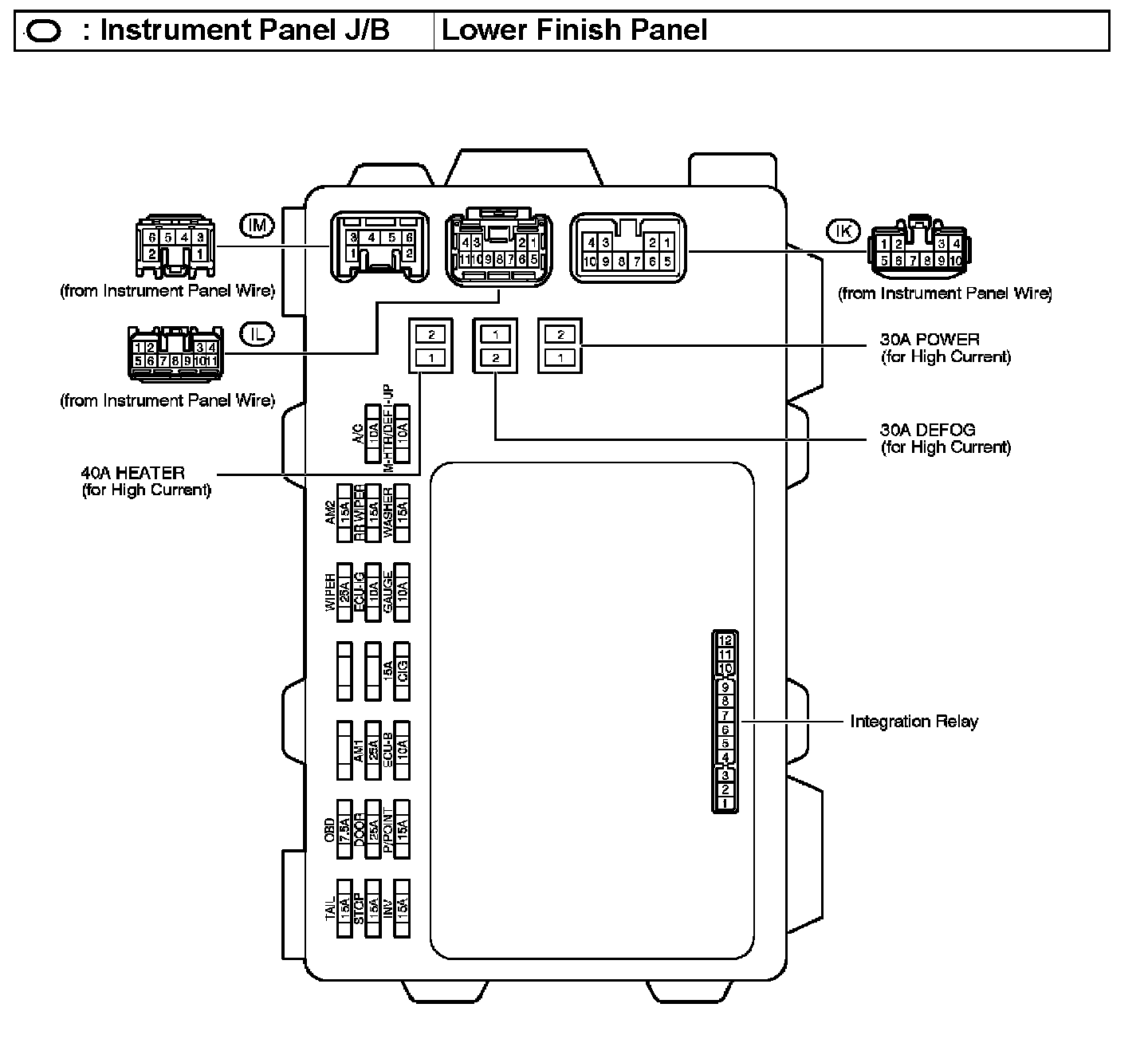

Instrument Panel J/B - Lower Finish Panel:

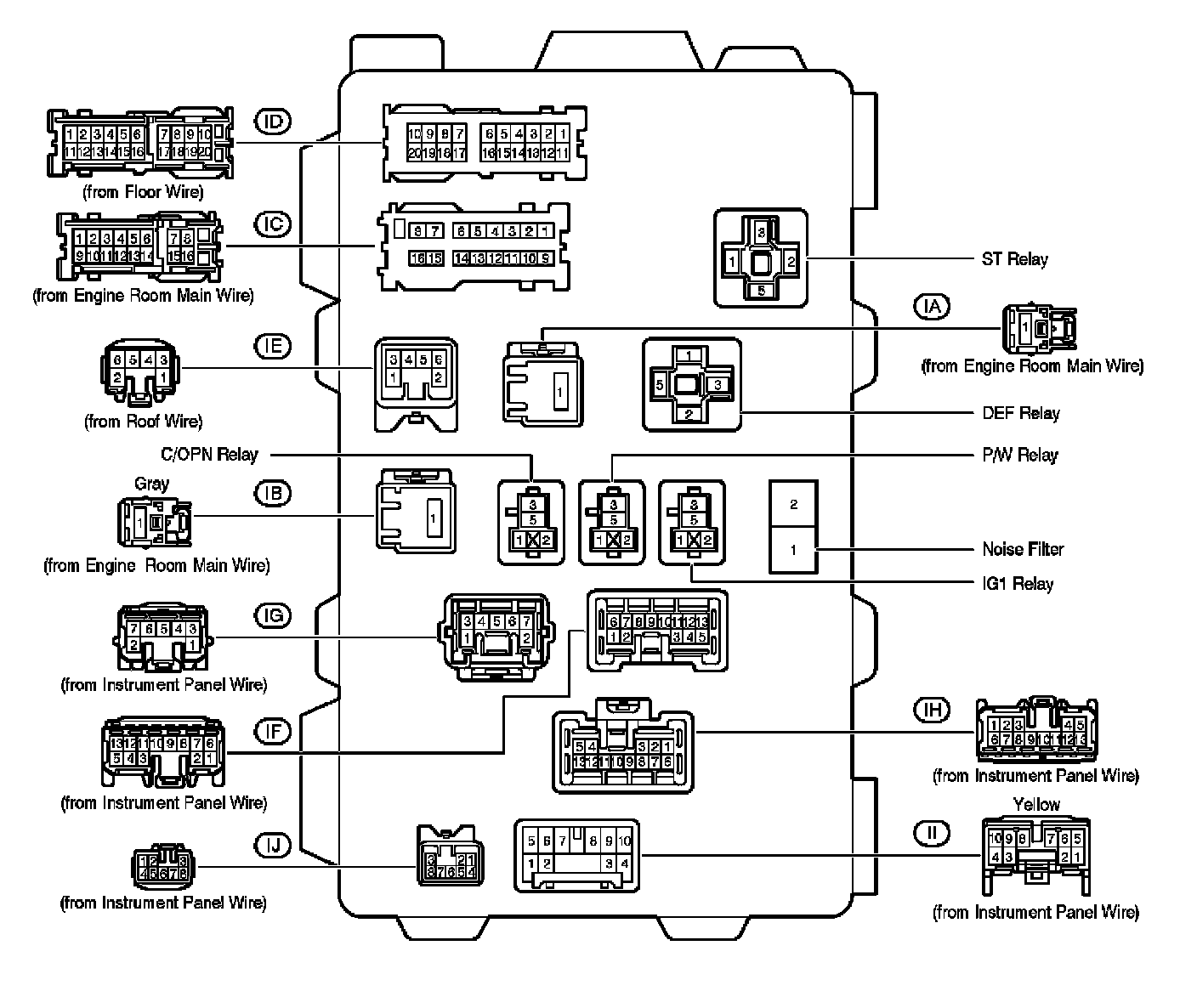

Instrument Panel J/B - Lower Finish Panel:



RH R/B, J/B - Right Side Of The Instrument Panel Reinforcement:

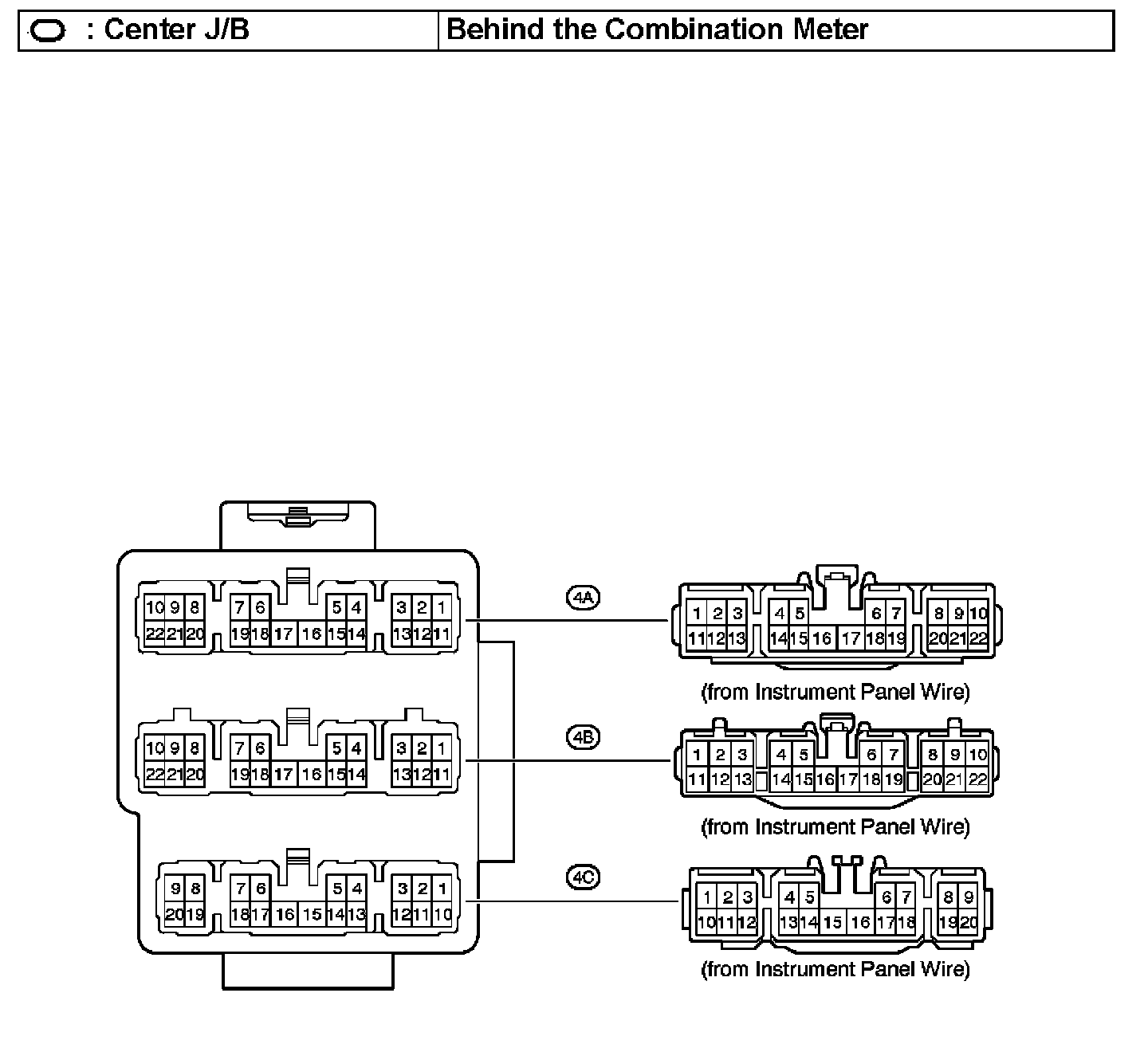

Center J/B - Behind The Combination Meter:
