Pinout Values and Diagnostic Parameters

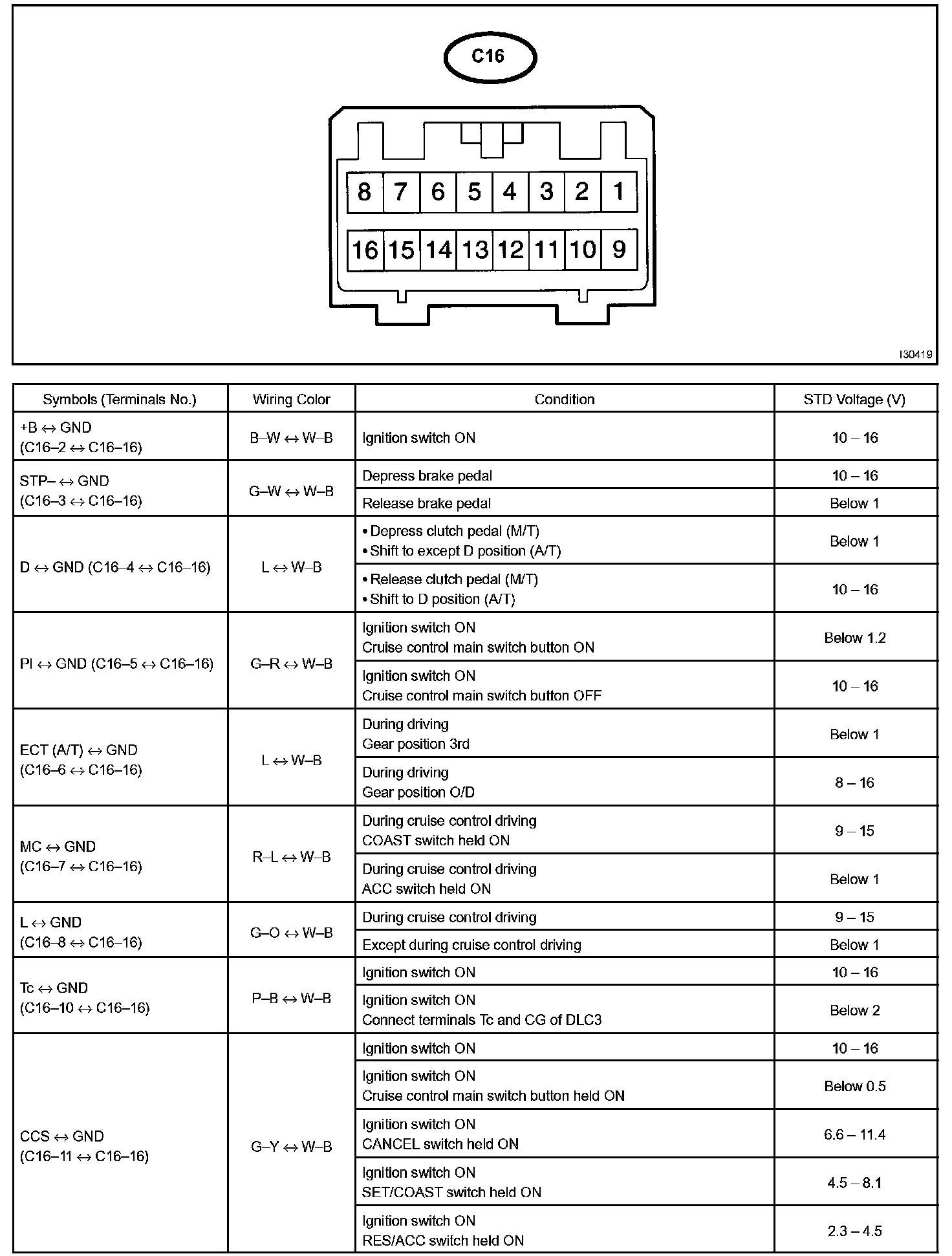

Terminals Of ECU/Pinouts Part 1:
Terminals Of ECU/Pinouts Part 2:
Oscilloscope Waveform:
