Interior Light System:

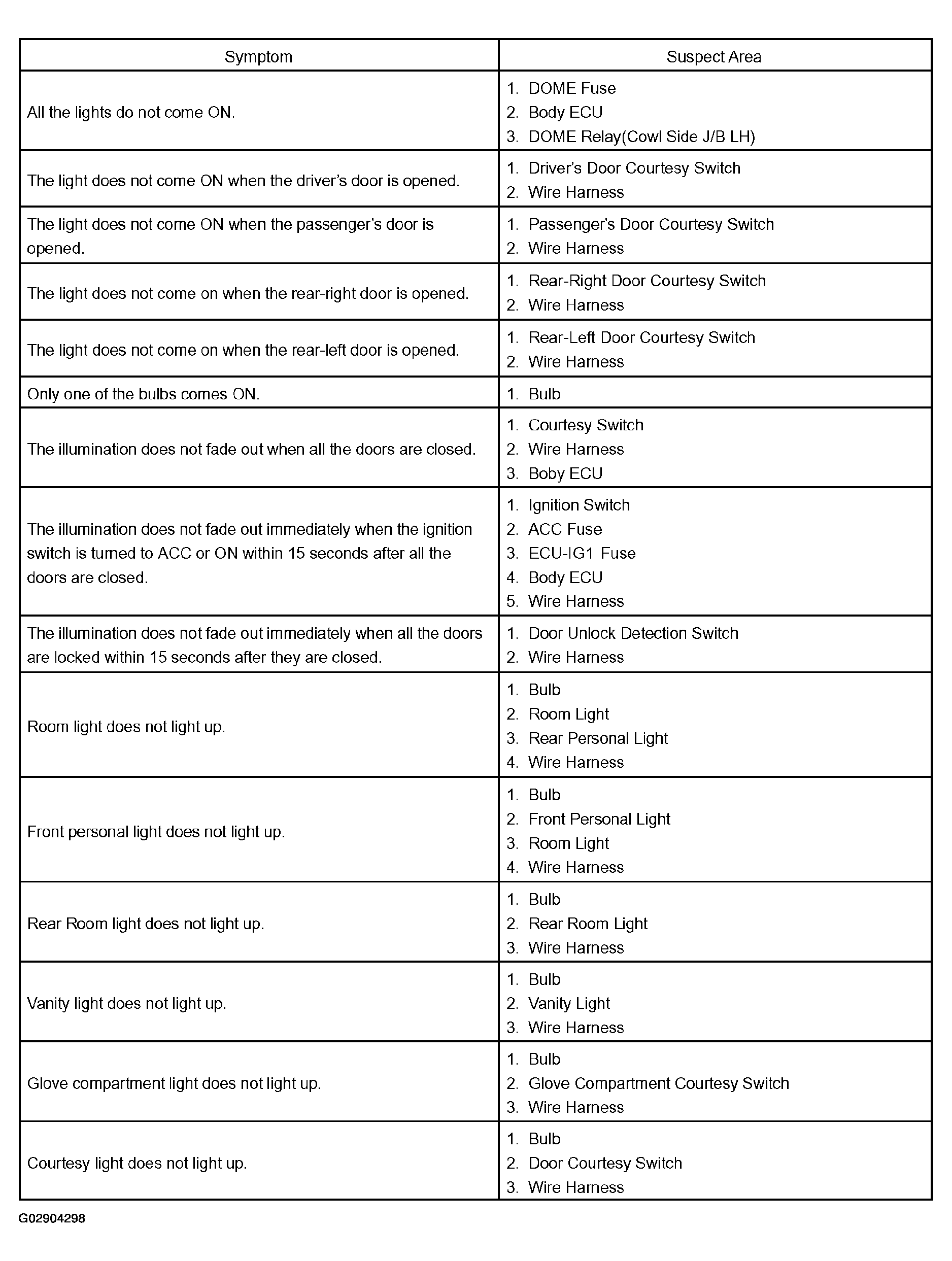

Fig 1: Identifying Interior Light System Troubleshooting
G02904298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
