Combination Meter (Warning Light)

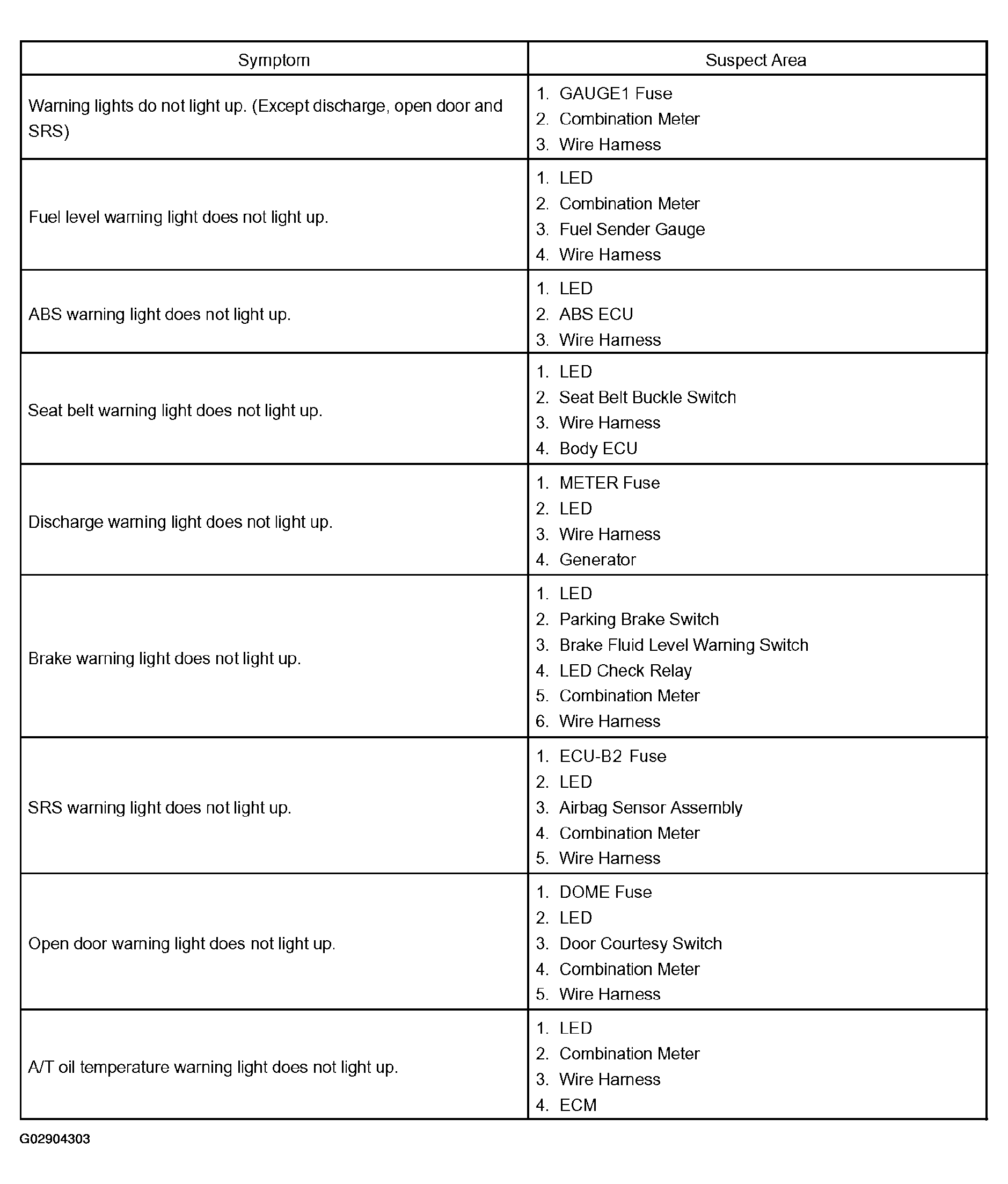

Fig 1: Identifying Combination Meter (Warning Light) Troubleshooting
G02904303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
