Problem Symptoms Table

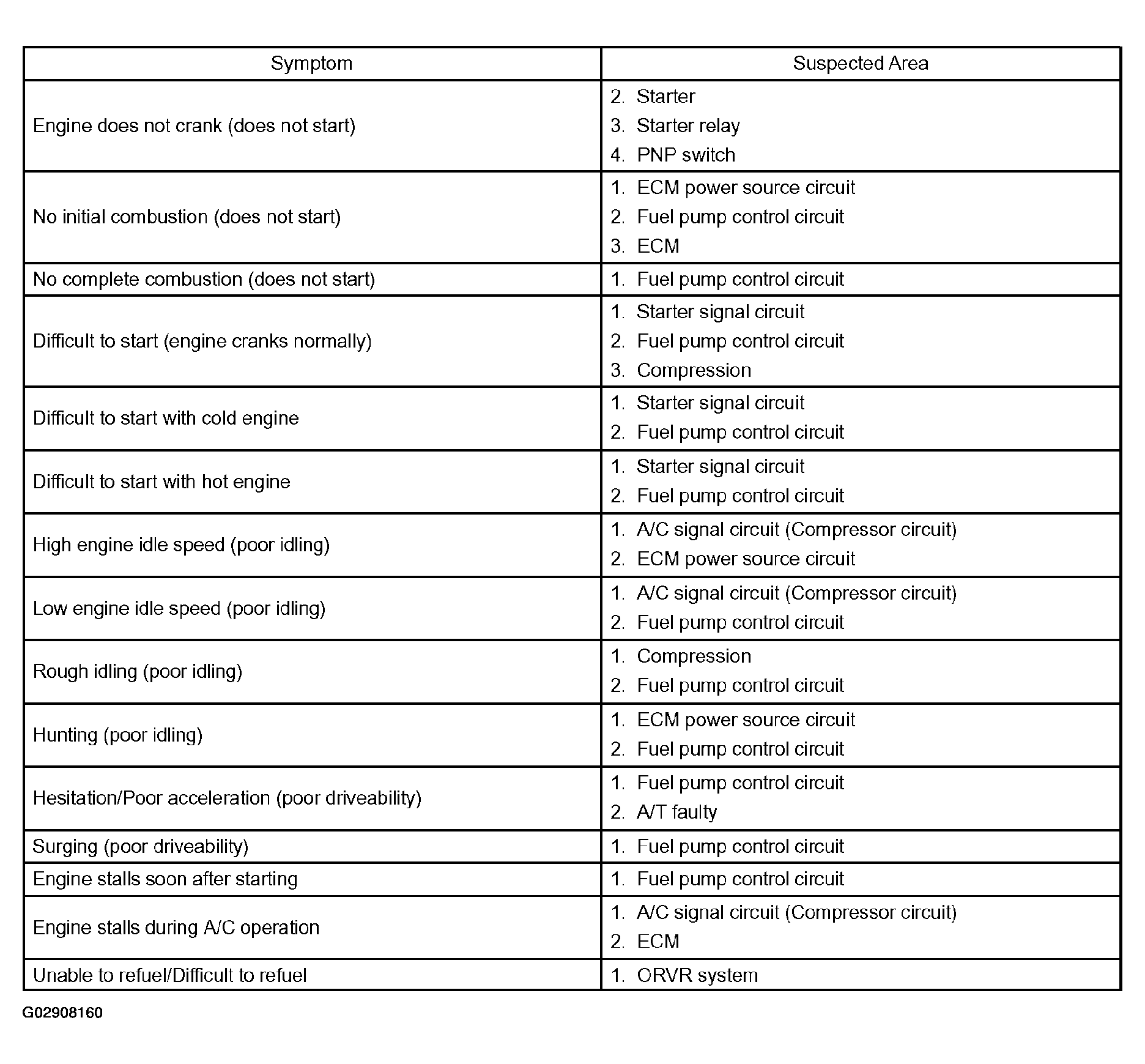

Fig 1: SFI System Problem Symptom Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
