Ignition Timing

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach timing light to loop wire as shown below.

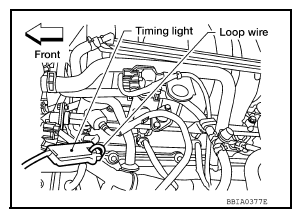

    Fig 1: Connecting Timing Light To Loop Wire
    G08693878Courtesy of NISSAN NORTH AMERICA, INC.
  2. Check ignition timing.
    Fig 2: Checking Ignition Timing Using Timing Indicator
    G08693879Courtesy of NISSAN NORTH AMERICA, INC.
