Remove Camshaft Position Sensor

  1. Disconnect the connector.
  2. Remove the bolt and camshaft position sensor.

    Torque:  8.0 N.m (82 kgf.cm, 71 in.lbf)

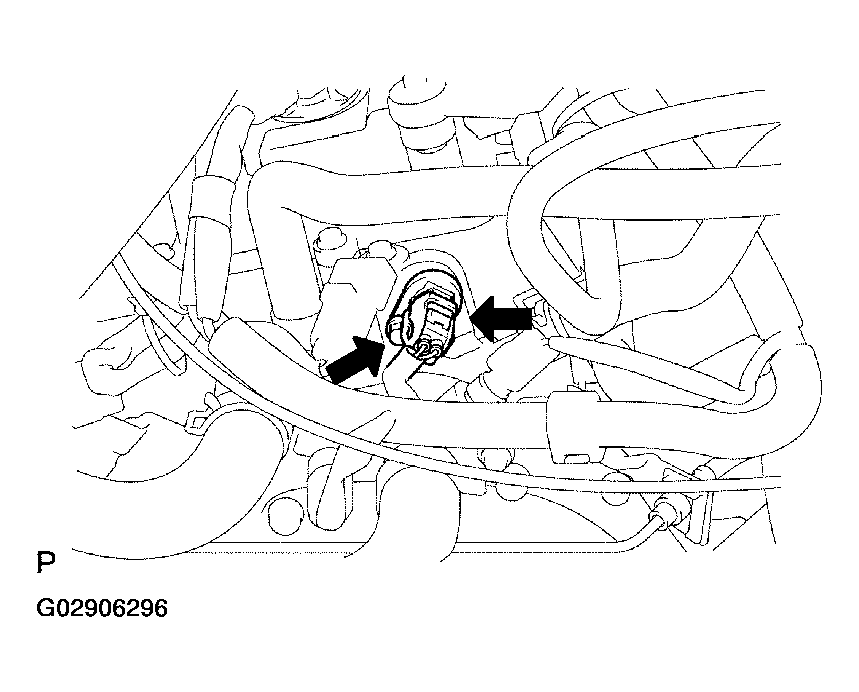

    Fig 1: Removing Camshaft Position Sensor
    G02906296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
