Instrument Panel/Meter: Components

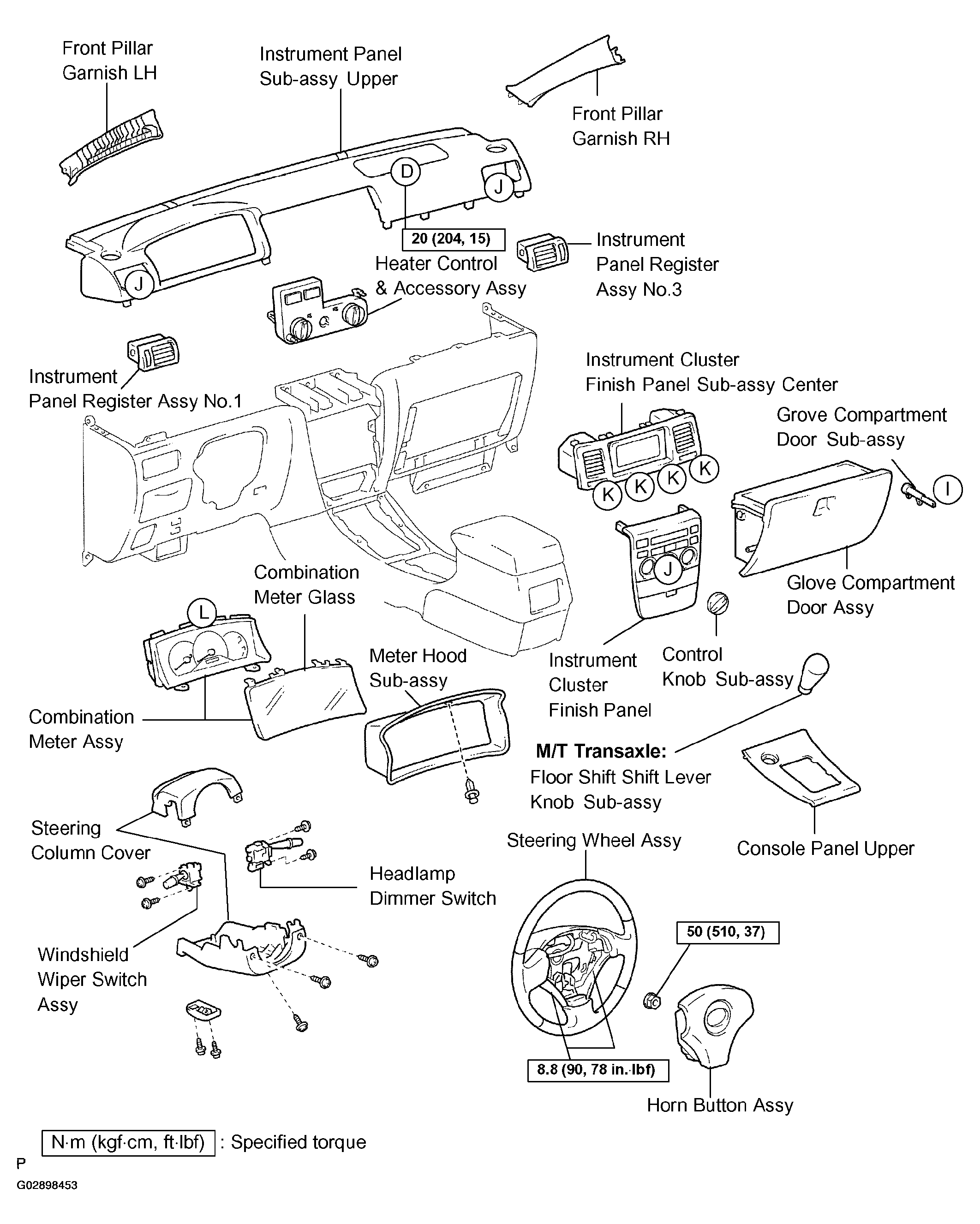

Fig 1: Identifying Instrument Panel/Meter Components
G02898453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

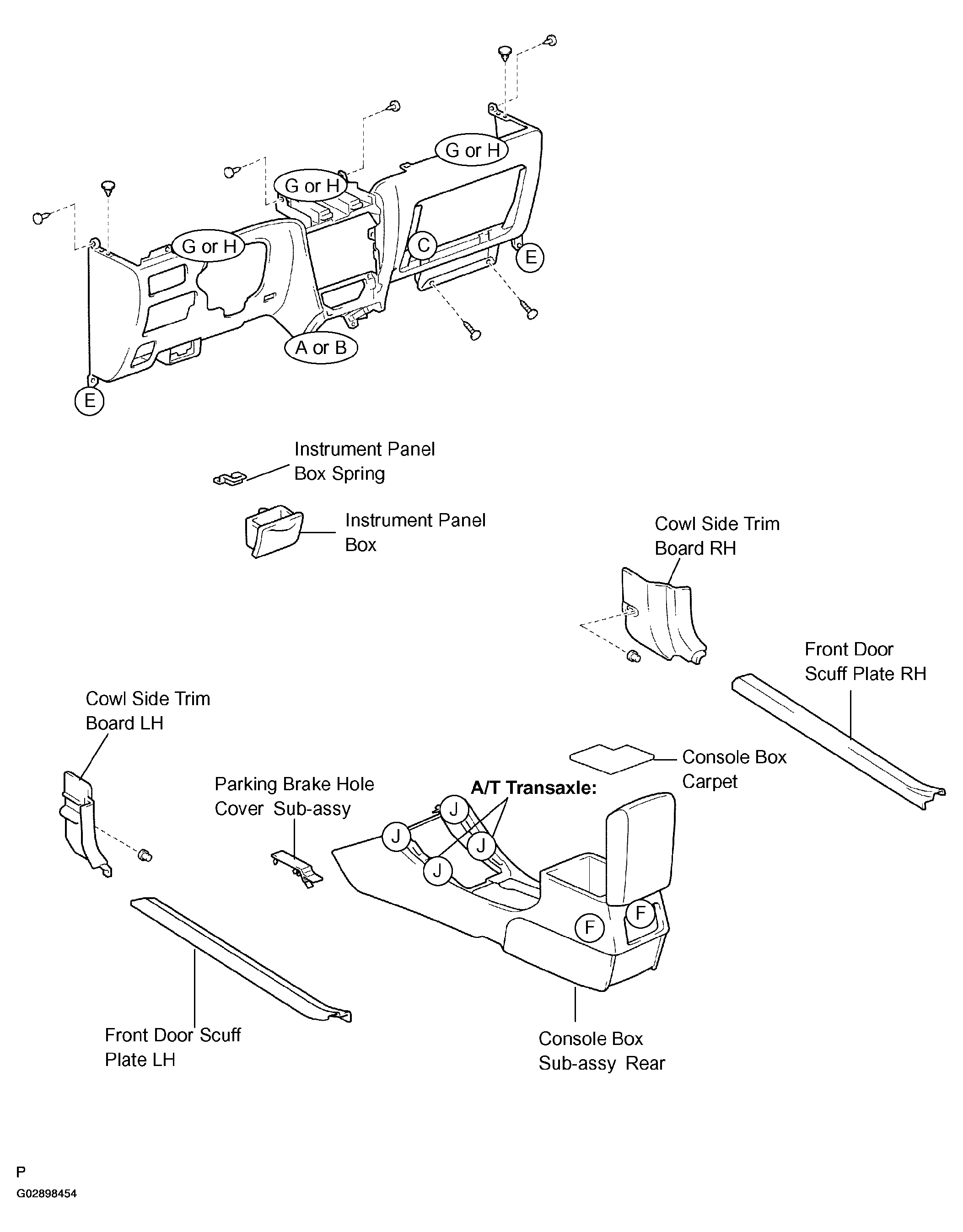

Fig 2: Exploded View Of Instrument Panel/Meter Components
G02898454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
