Clock ASSY: Replacement

  1. REMOVE CONSOLE PANEL UPPER (See  REPLACEMENT  )
  2. REMOVE HEATER CONTROL KNOB
  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL (See  REPLACEMENT  )
  4. REMOVE CLOCK ASSY
    1. Using a screwdriver, disengage the 4 claws, remove the clock as shown in the illustration.

    HINT:

    Tape the screwdriver tip before use.

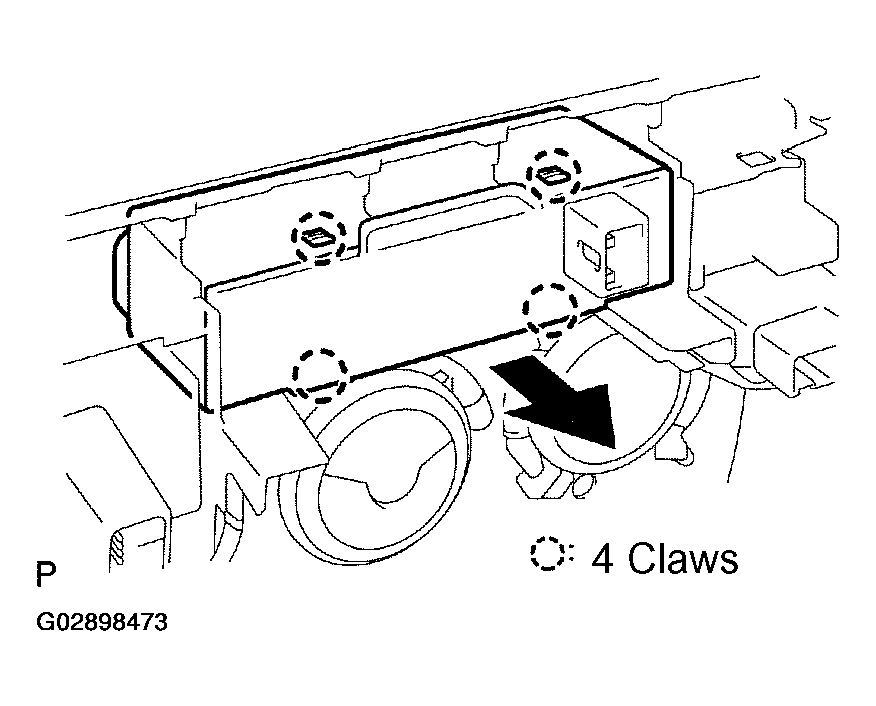

    Fig 1: Removing Clock Assy
    G02898473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
