Cruise Control Module: Locations

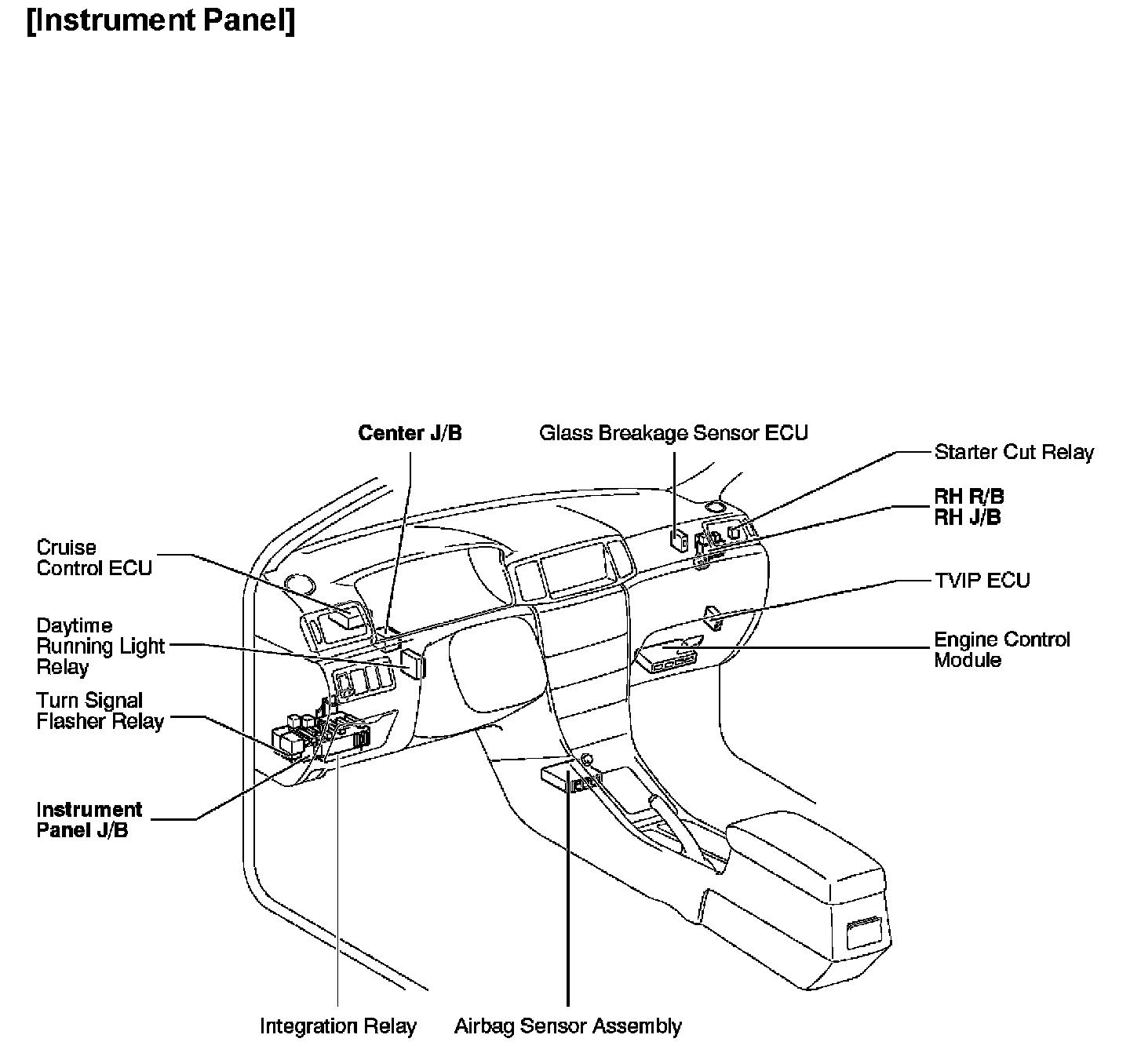

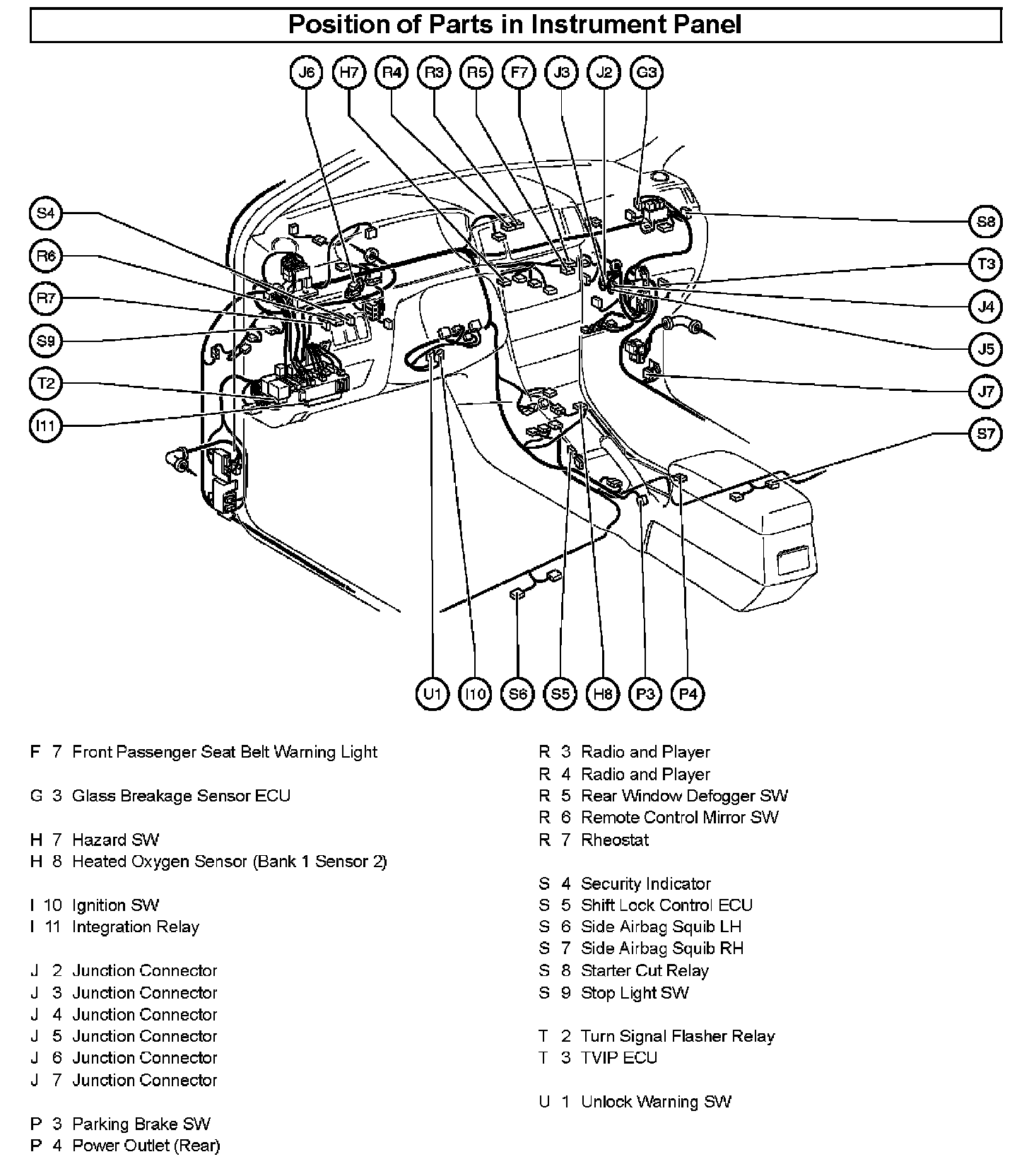

Instrument Panel:

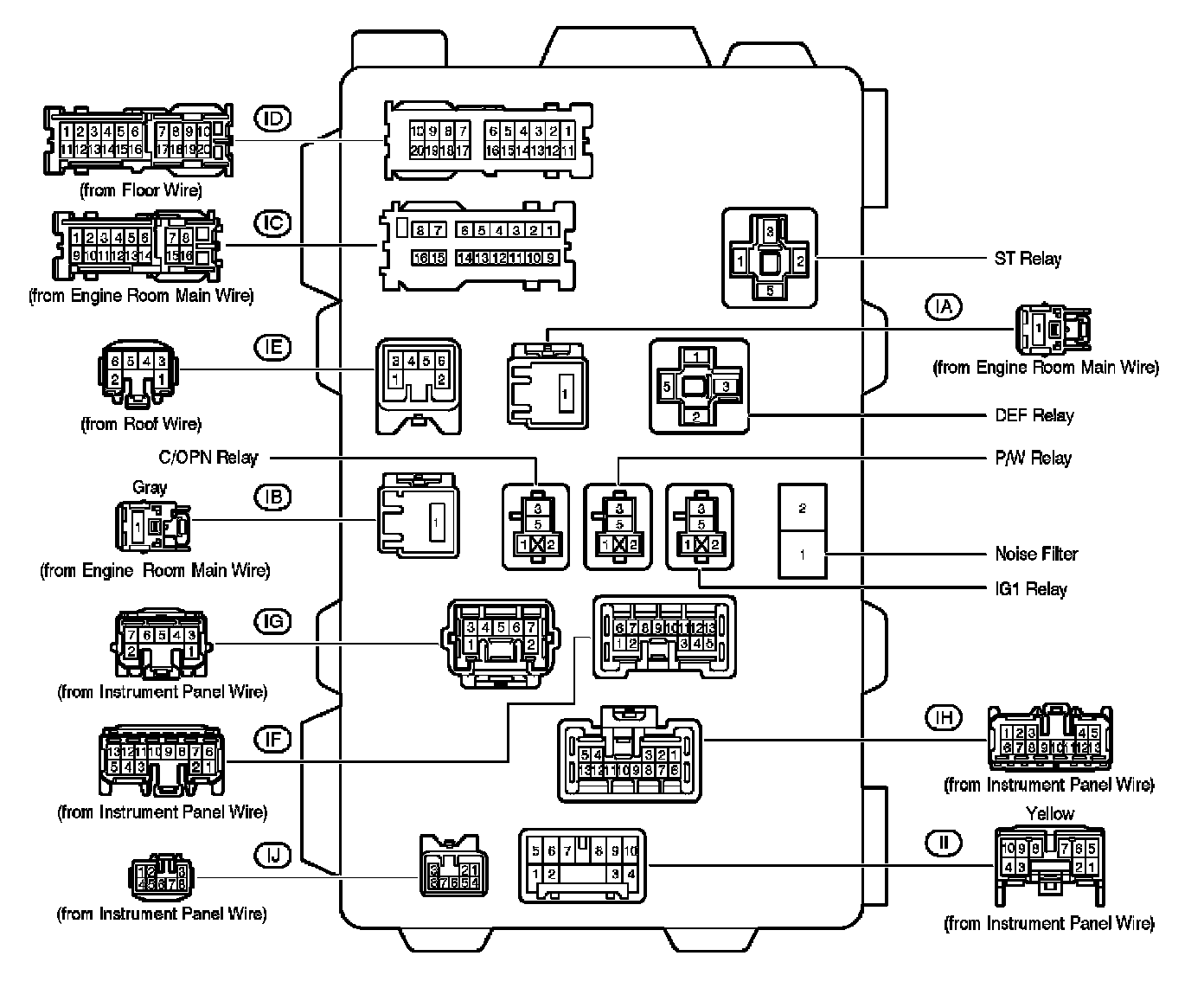

Instrument Panel J/B - Lower Finish Panel:



Fr - Un:

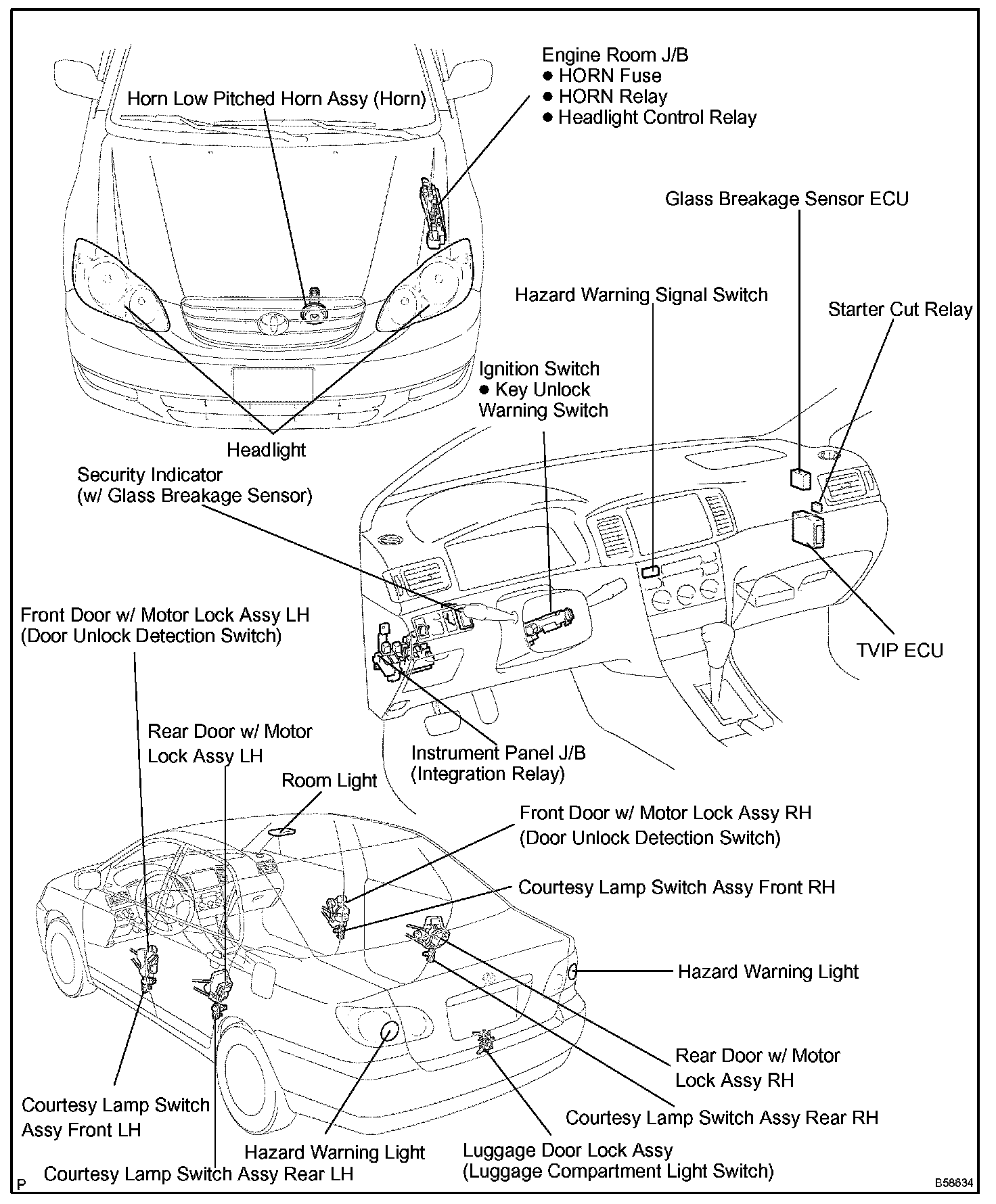

Toyota Vehicle Intrusion Protection System:
