Front Door: Components

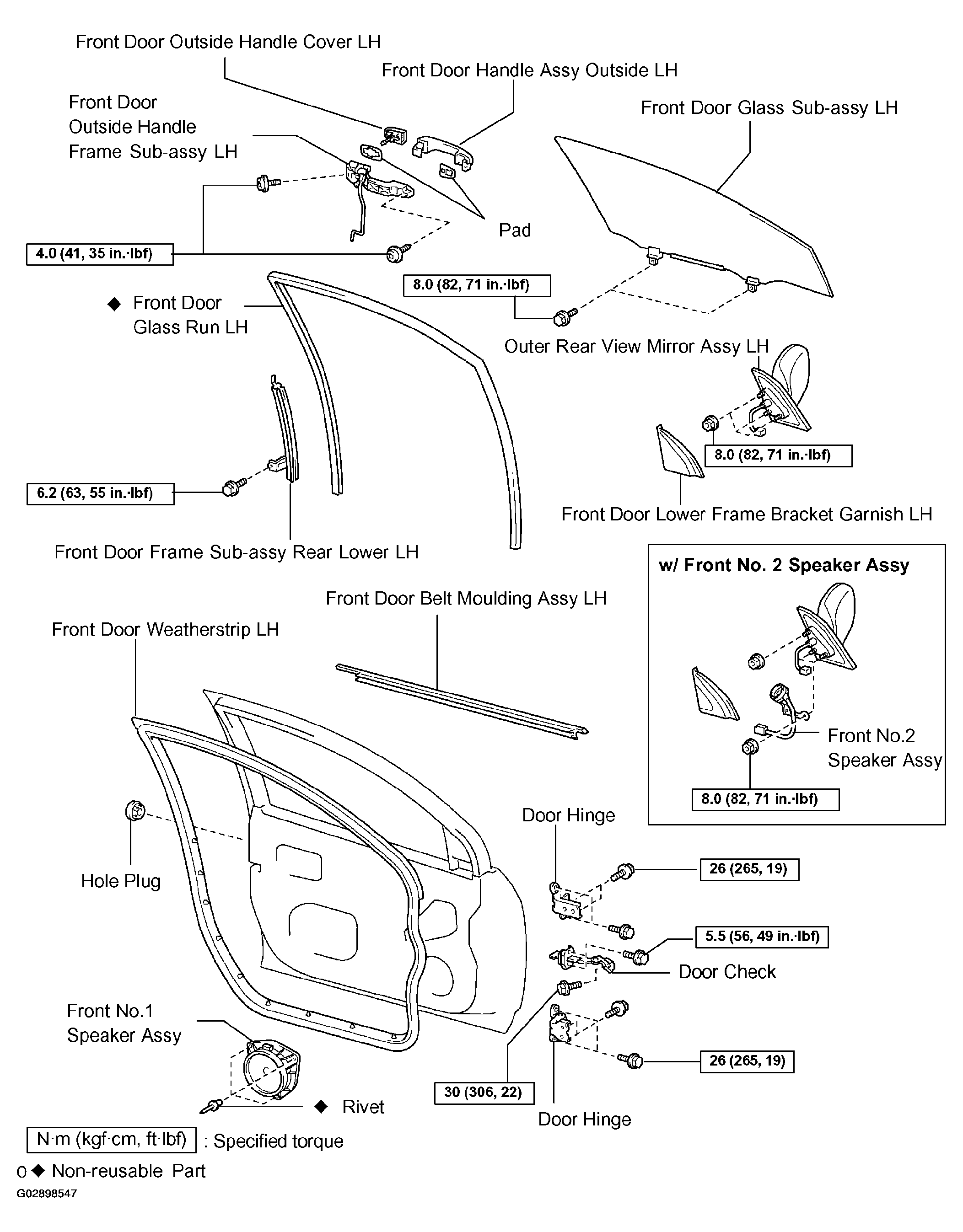

Fig 1: Identifying Front Door Components
G02898547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

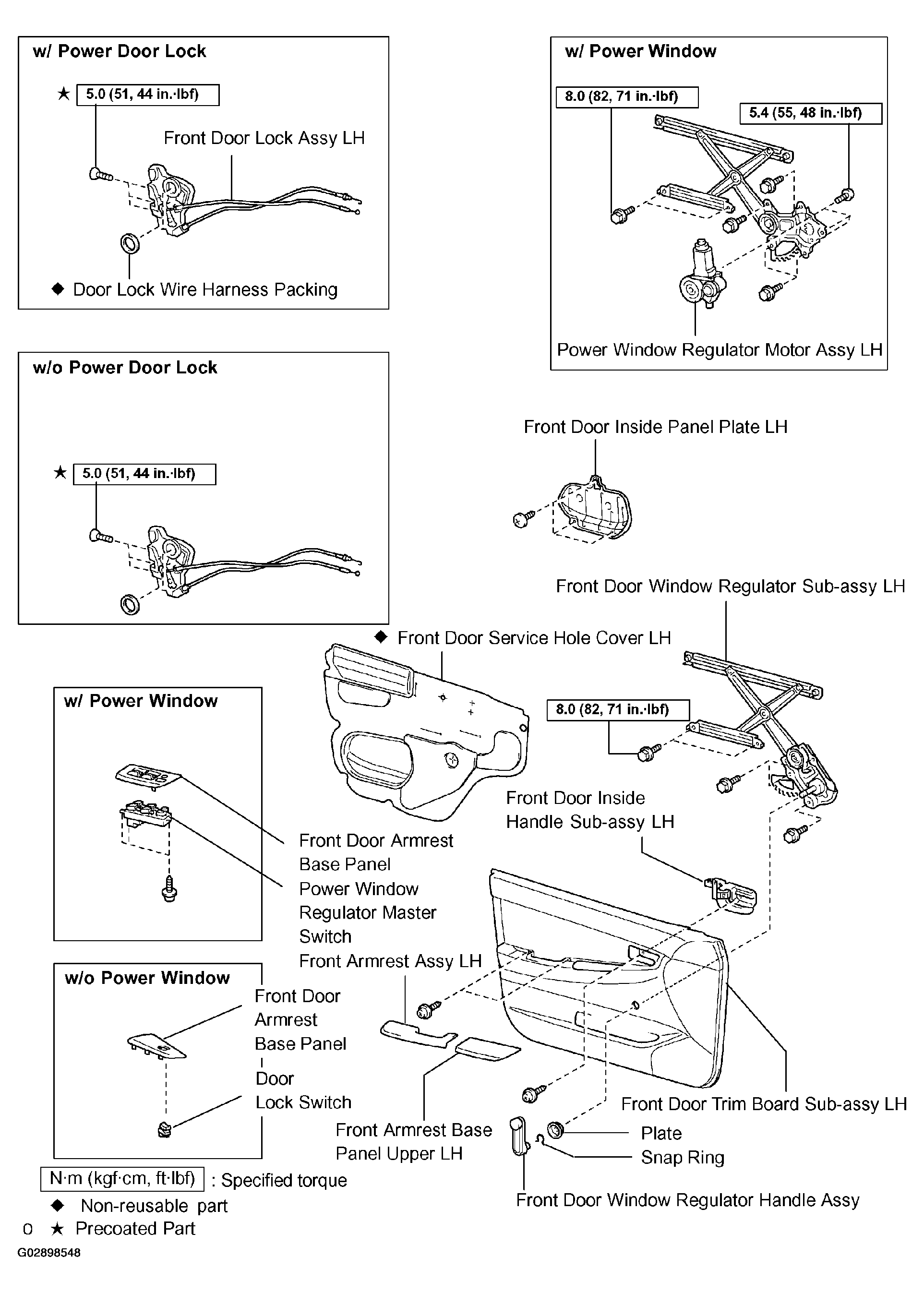

Fig 2: Identifying Front Door Components
G02898548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
