Throttle Body (2ZZ-GE): Components

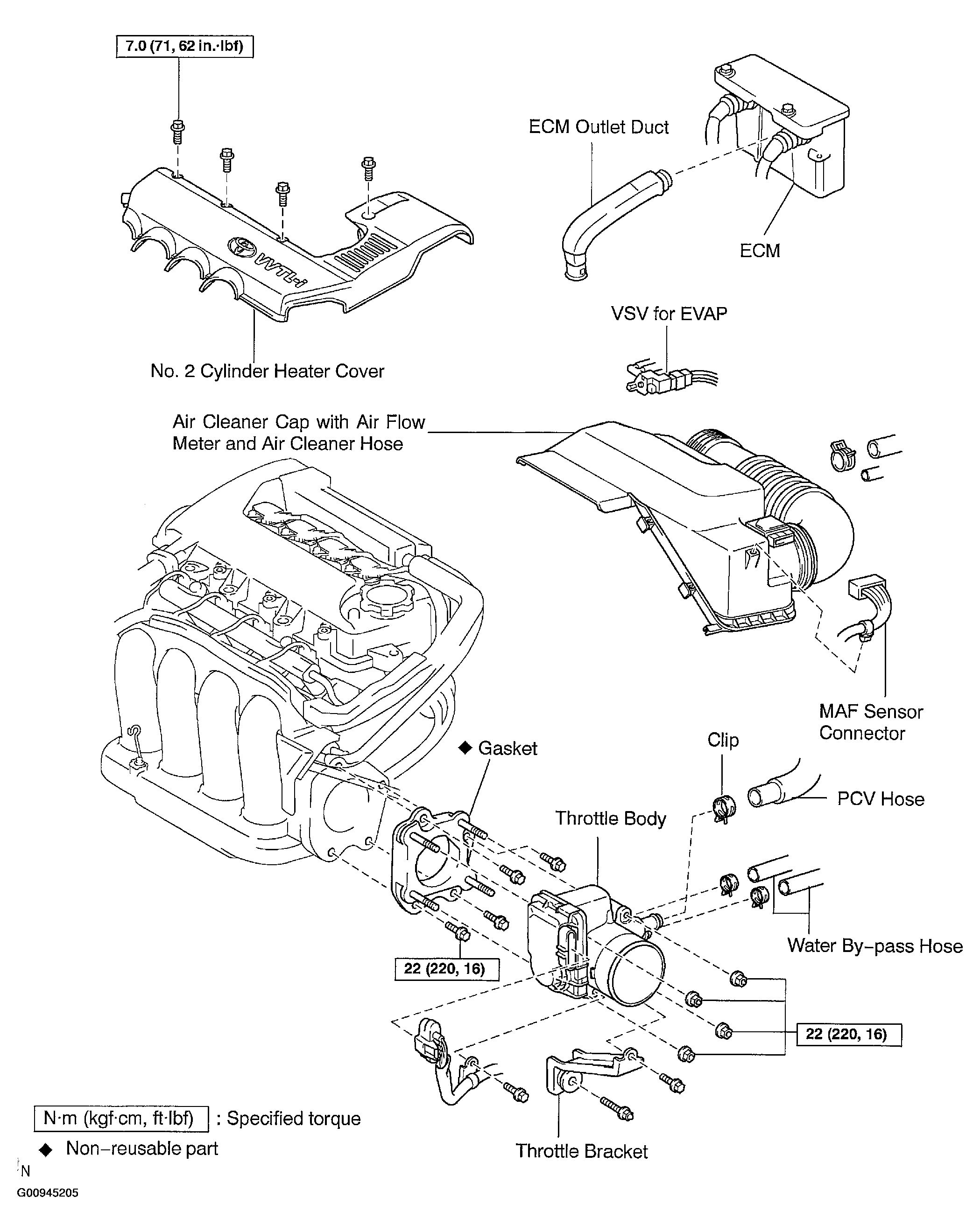

Fig 1: Throttle Body (2ZZ-GE) Components
G00945205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
