Charging System (Service Specifications)
>>
Service Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Service Data

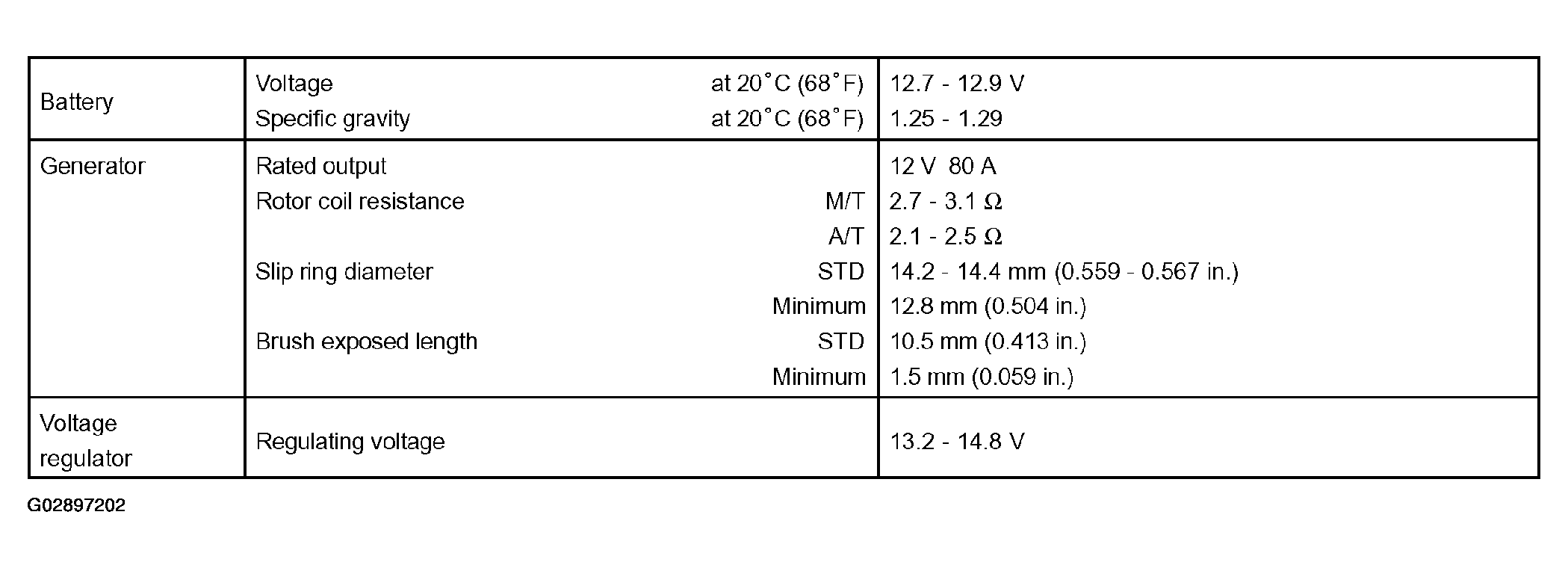

Fig 1: Charging Service Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
