Flywheel/Flex Plate Torque

61 ft.lbs (83 N.m)

Refer to illustration for tightening sequence.

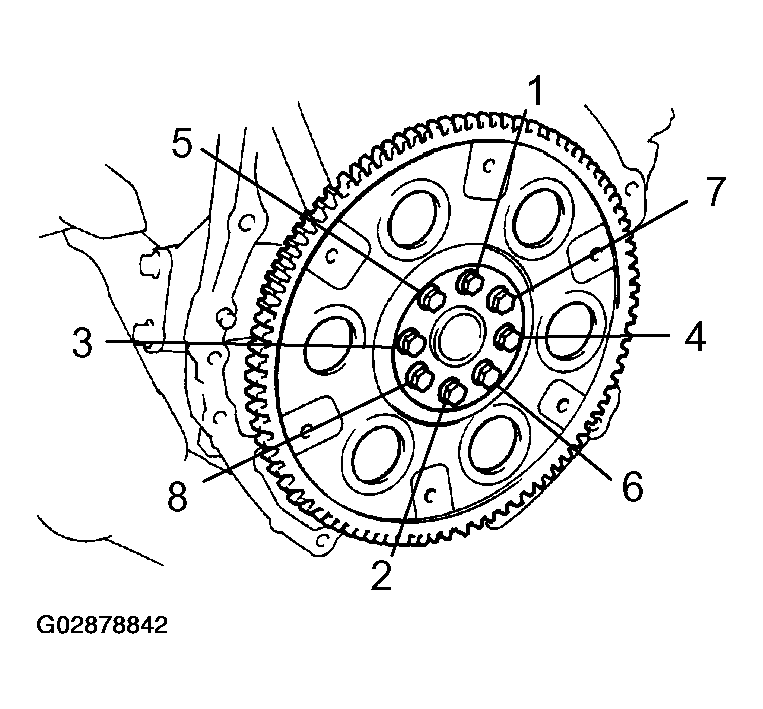

Fig 1: Installing And Tightening Drive Plate Nuts
G02878842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
