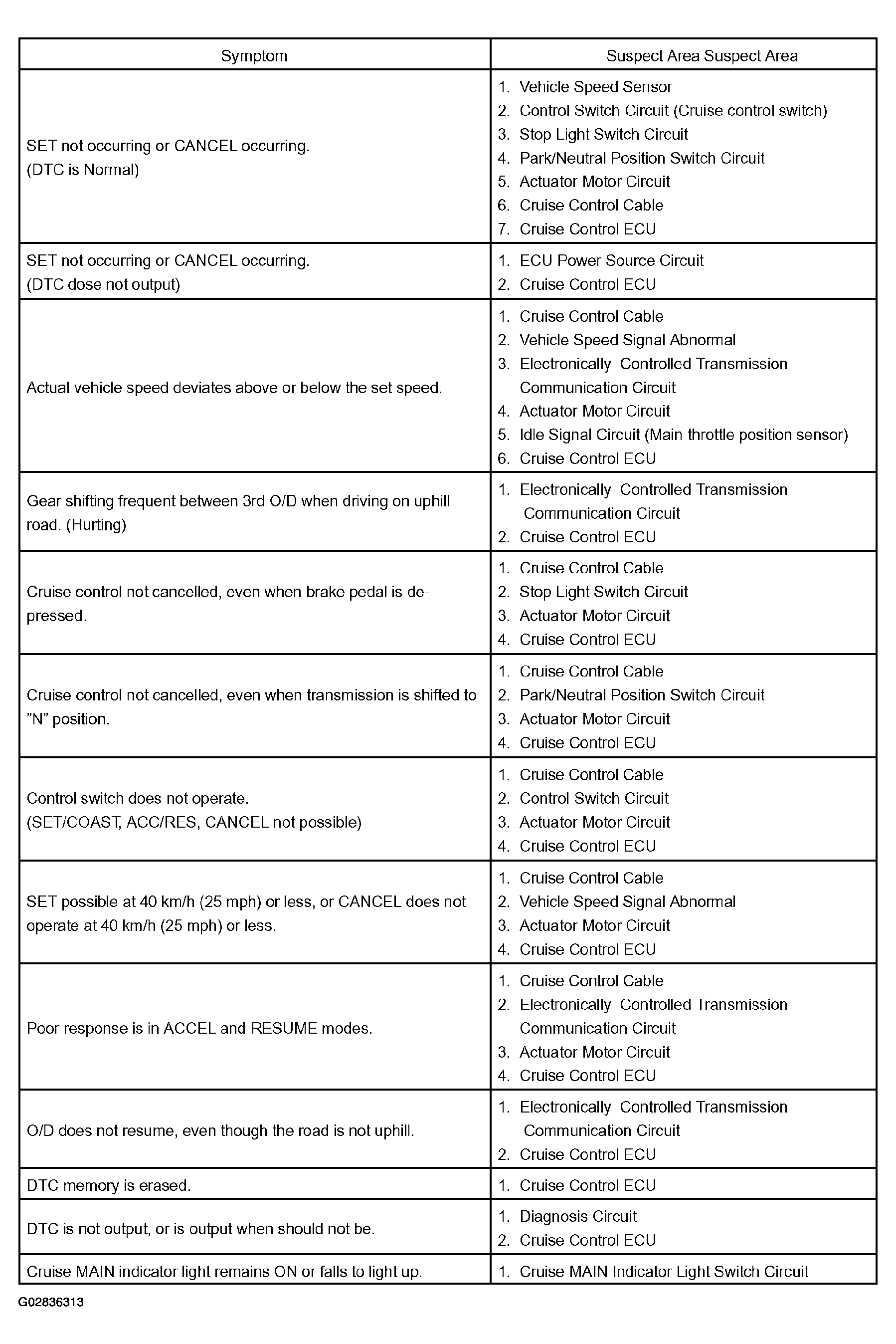

Problem Symptoms Table
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 11, 15 | Actuator Motor Circuit |
| DTC 12 | Actuator Magnetic Clutch Circuit |
| DTC 14 | Actuator Mechanical Malfunction |
| DTC 21 | Open in Vehicle Speed Sensor Circuit |
| DTC 23 | Vehicle Speed Signal Abnormal |
| DTC 32 | Control Switch Circuit (Cruise Control Switch) |
| DTC 51 | Idle Signal Circuit |
