Acoustic Control Induction System (ACIS): Components

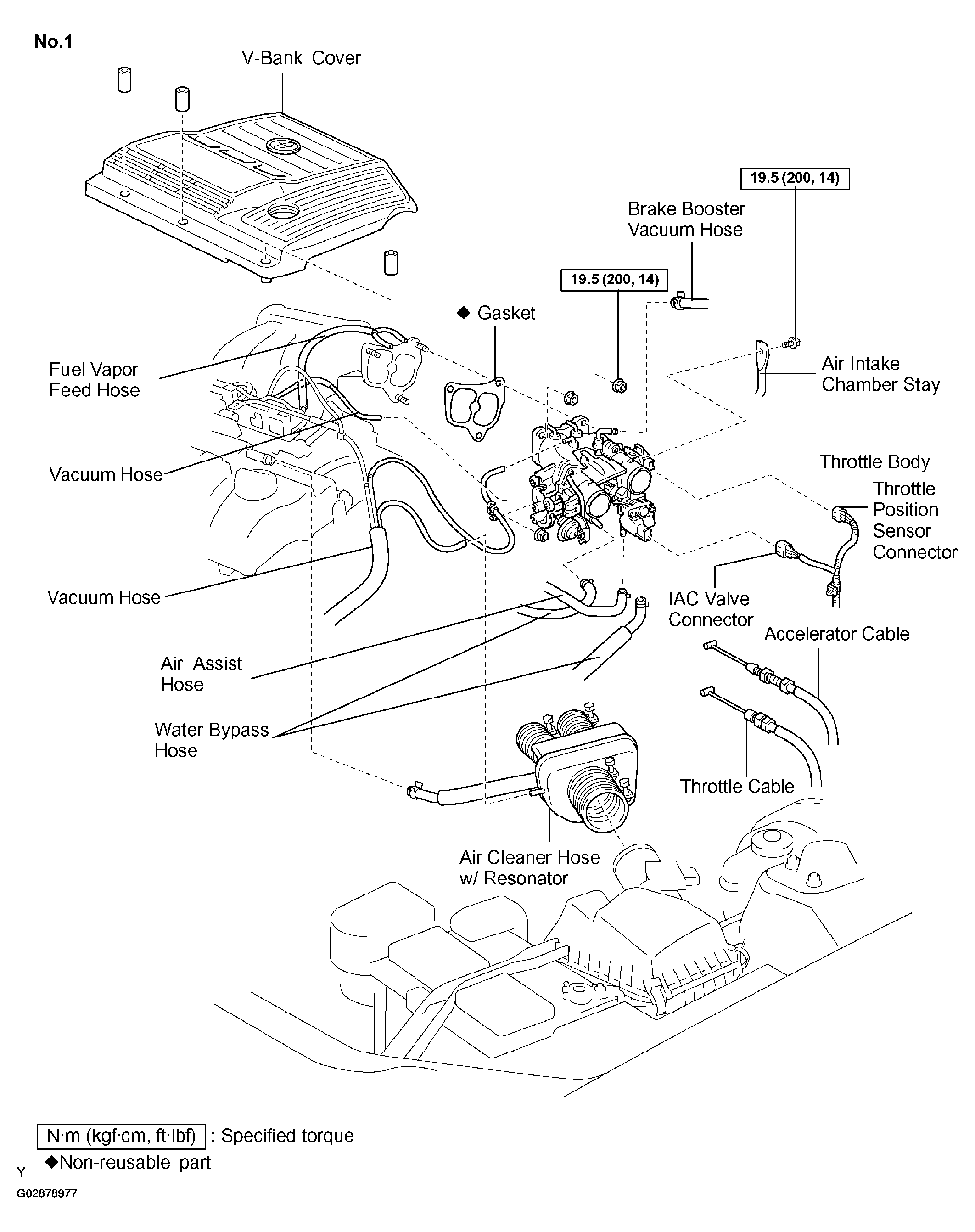

Fig 1: Identifying Acoustic Control Induction System (ACIS) Components (1 Of 3)
G02878977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

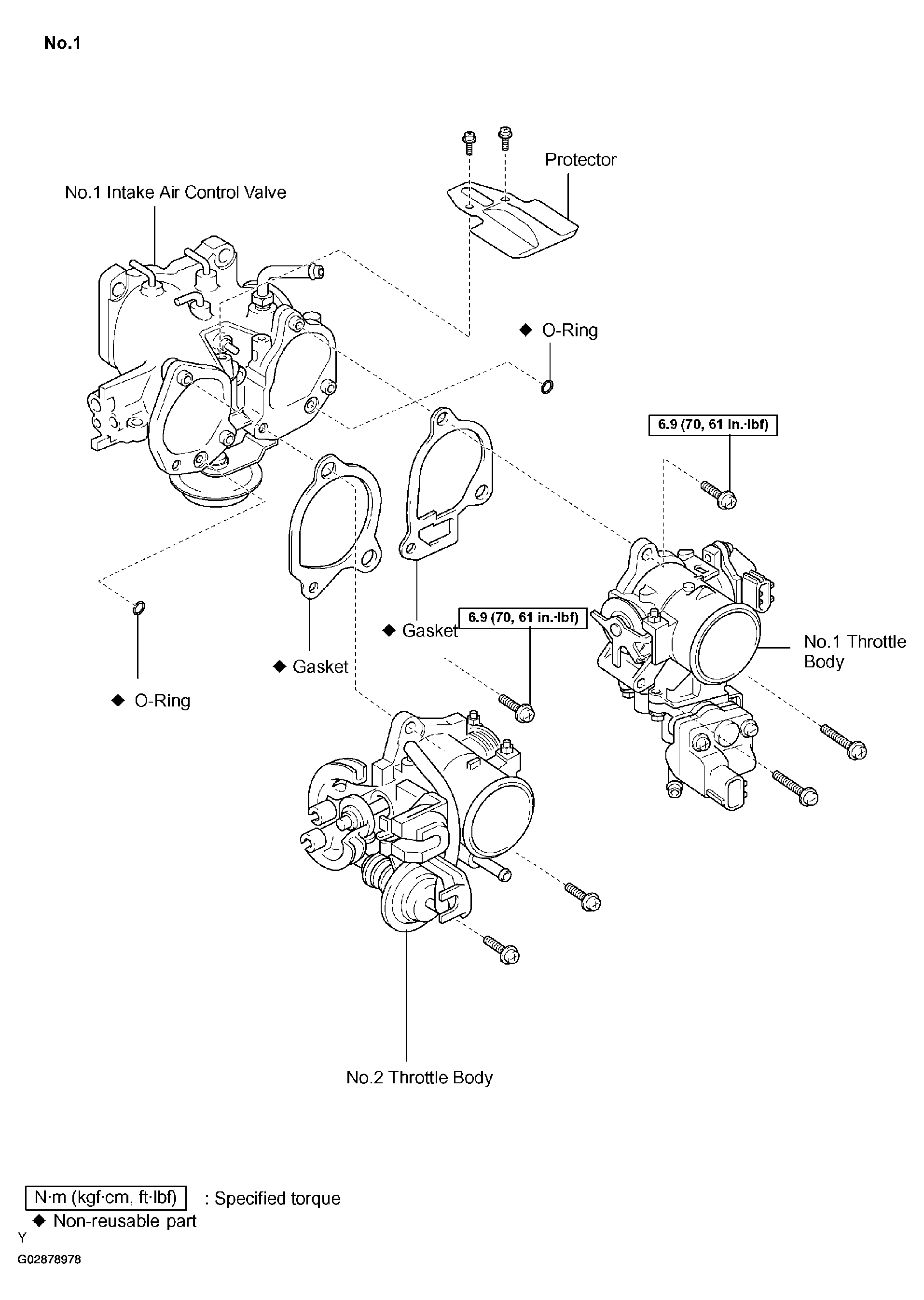

Fig 2: Identifying Acoustic Control Induction System (ACIS) Components (2 Of 3)
G02878978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

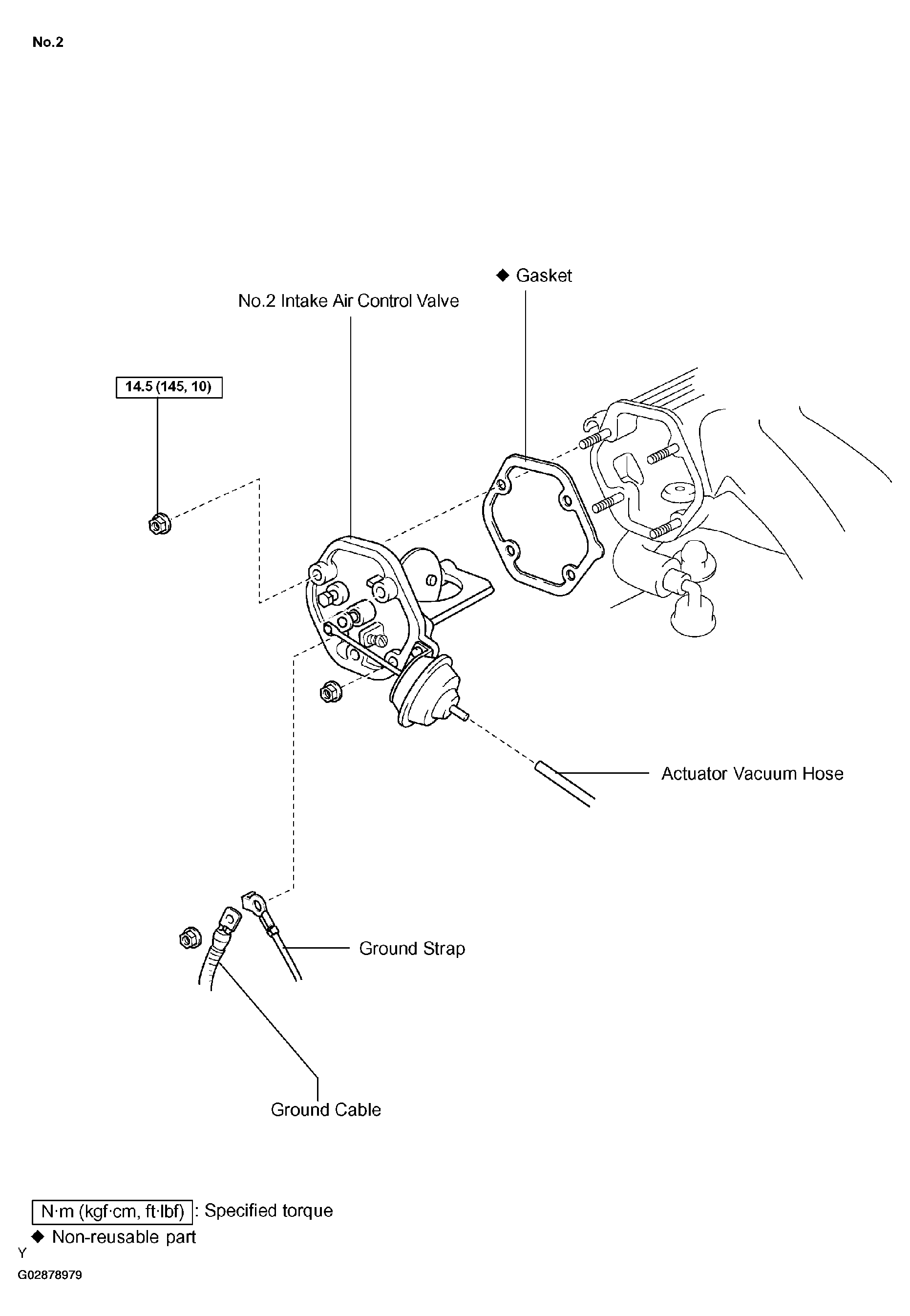

Fig 3: Identifying Acoustic Control Induction System (ACIS) Components (3 Of 3)
G02878979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
