Outer Rear View Mirror ASSY LH: Replacement

NOTE:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

REMOVE FRONT DOOR SERVICE HOLE COVER LH (See OVERHAUL )
1. Remove the front door lower frame bracket garnish LH.
2. Remove the front door inside handle bezel LH.
3. Remove the front armrest assy LH.
4. Remove the front door trim board LH.
5. Remove the front door service hole cover LH.
REMOVE OUTER REAR VIEW MIRROR ASSY LH
1. Disconnect the connector.
2. Remove the 3 nuts and mirror.

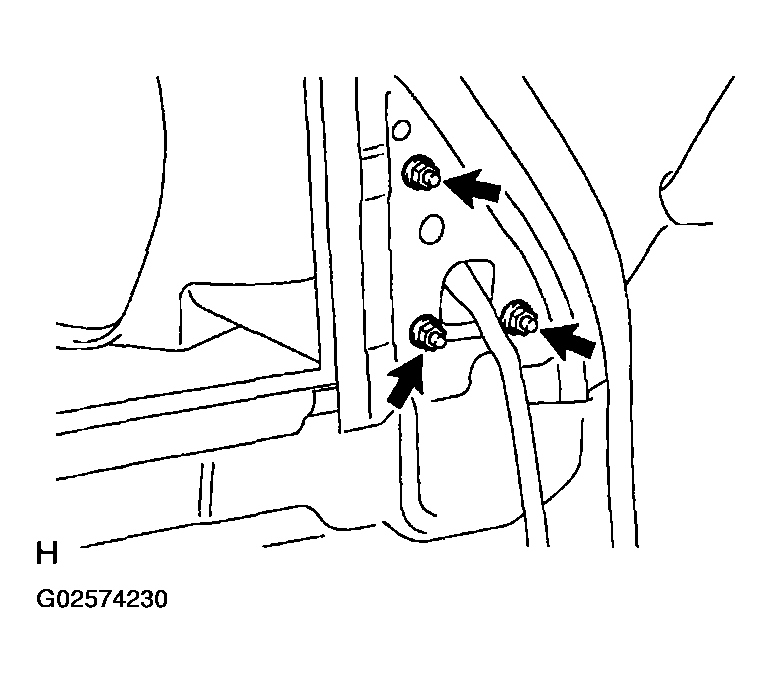

Fig 1: Removing Mirror
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER REAR VIEW MIRROR ASSY LH
1. Install the mirror with the 3 nuts.

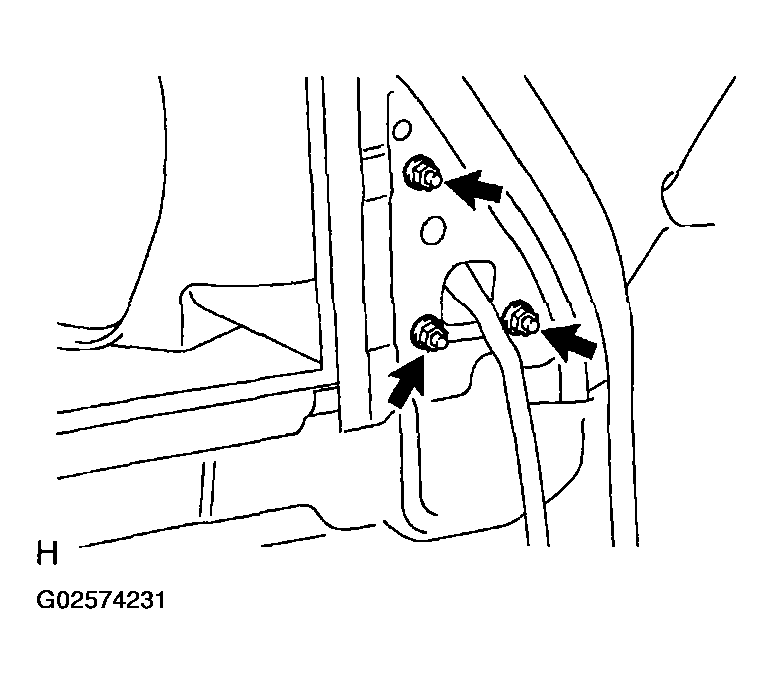

  Fig 2: Installing Mirror
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
2. Connect the connector.
