Tacoma With ETCS

For throttle body inspection procedure, see Fig 1 and Fig 2 . To remove throttle body, see THROTTLE BODY under FUEL SYSTEMS in REMOVAL & INSTALLATION - V6 & V8.

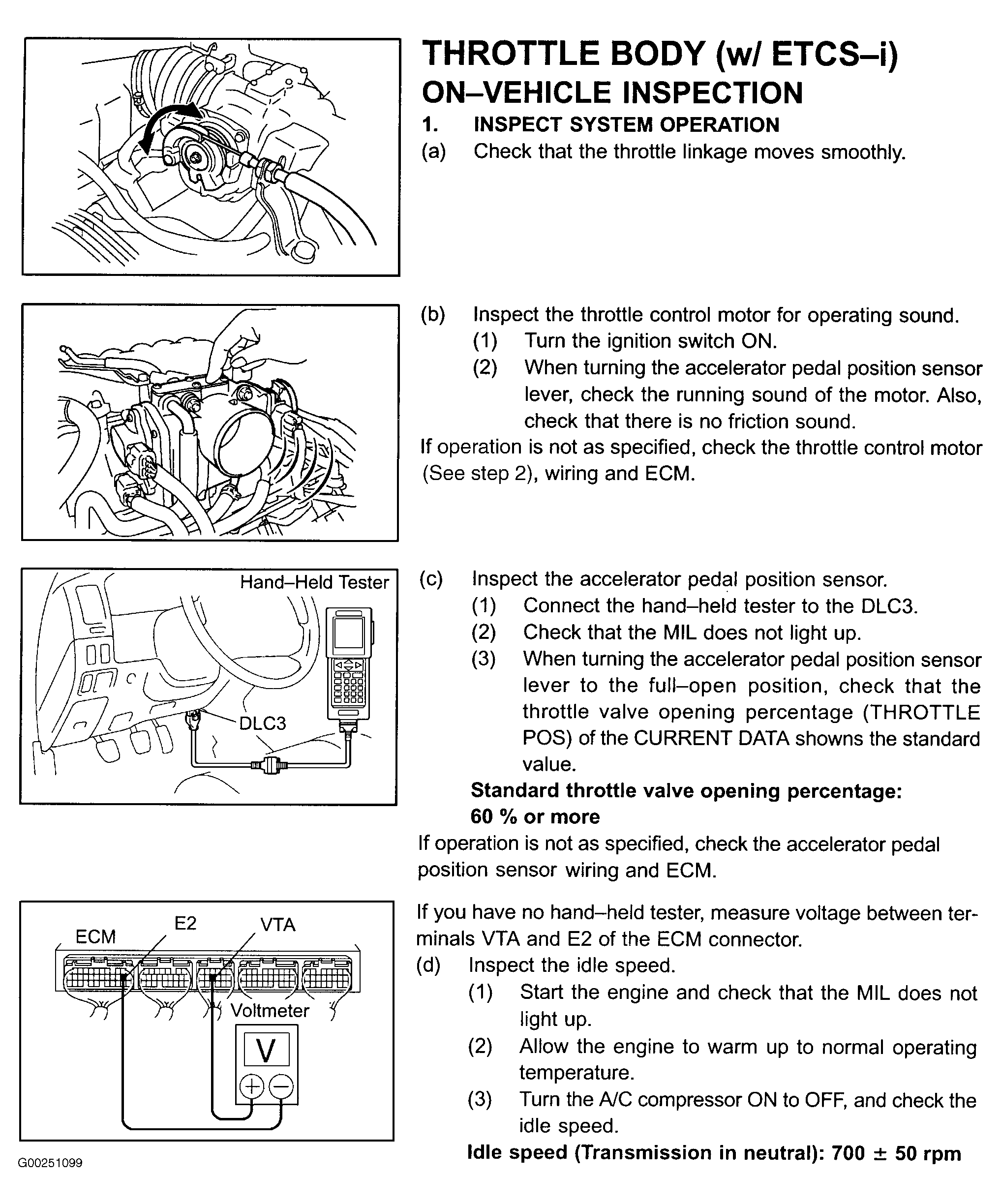

Fig 1: Inspecting Throttle Body - 1 of 2 (Tacoma)
G00251099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

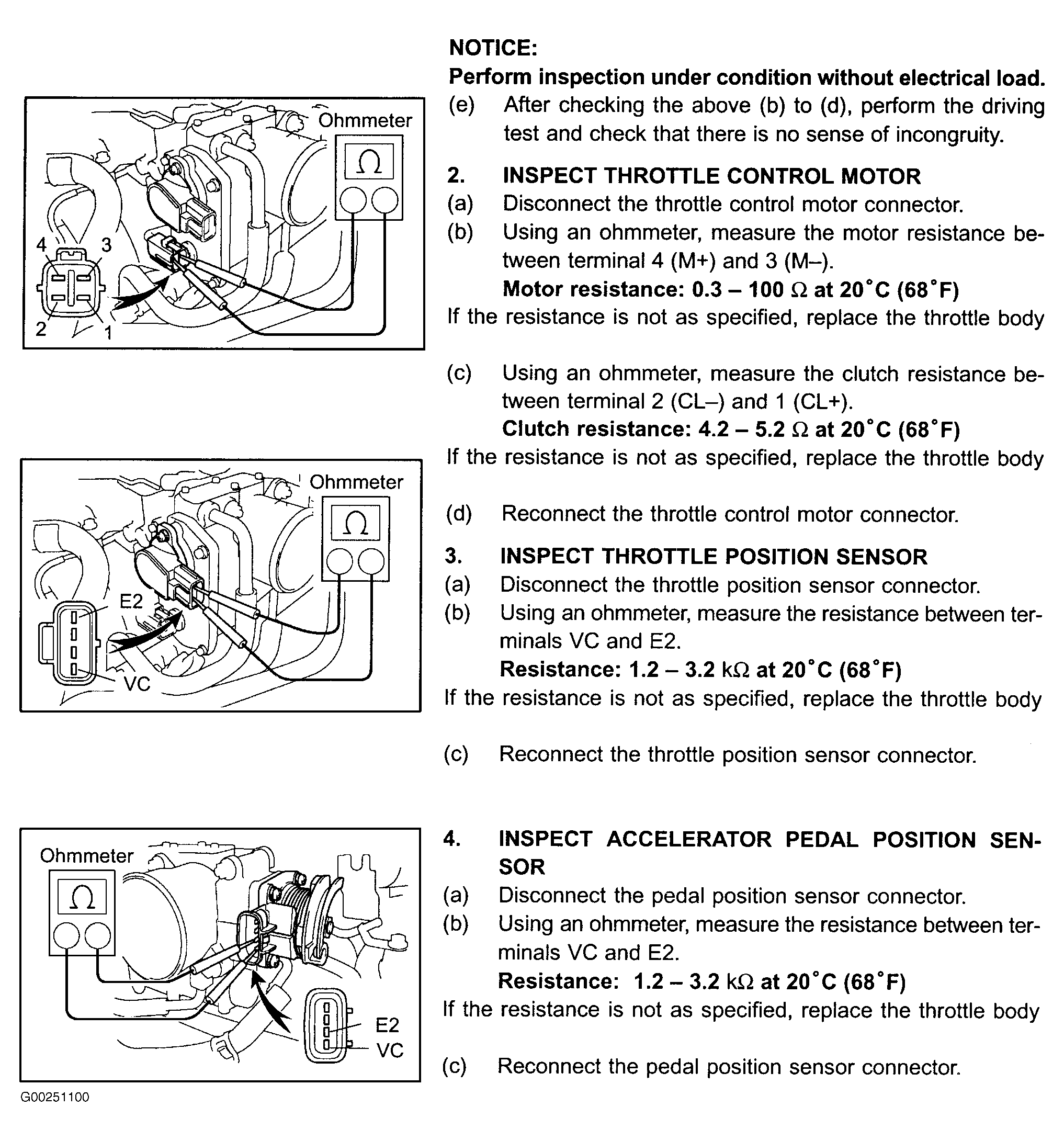

Fig 2: Inspecting Throttle Body - 2 of 2 (Tacoma)
G00251100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
