Abs Actuator: Components

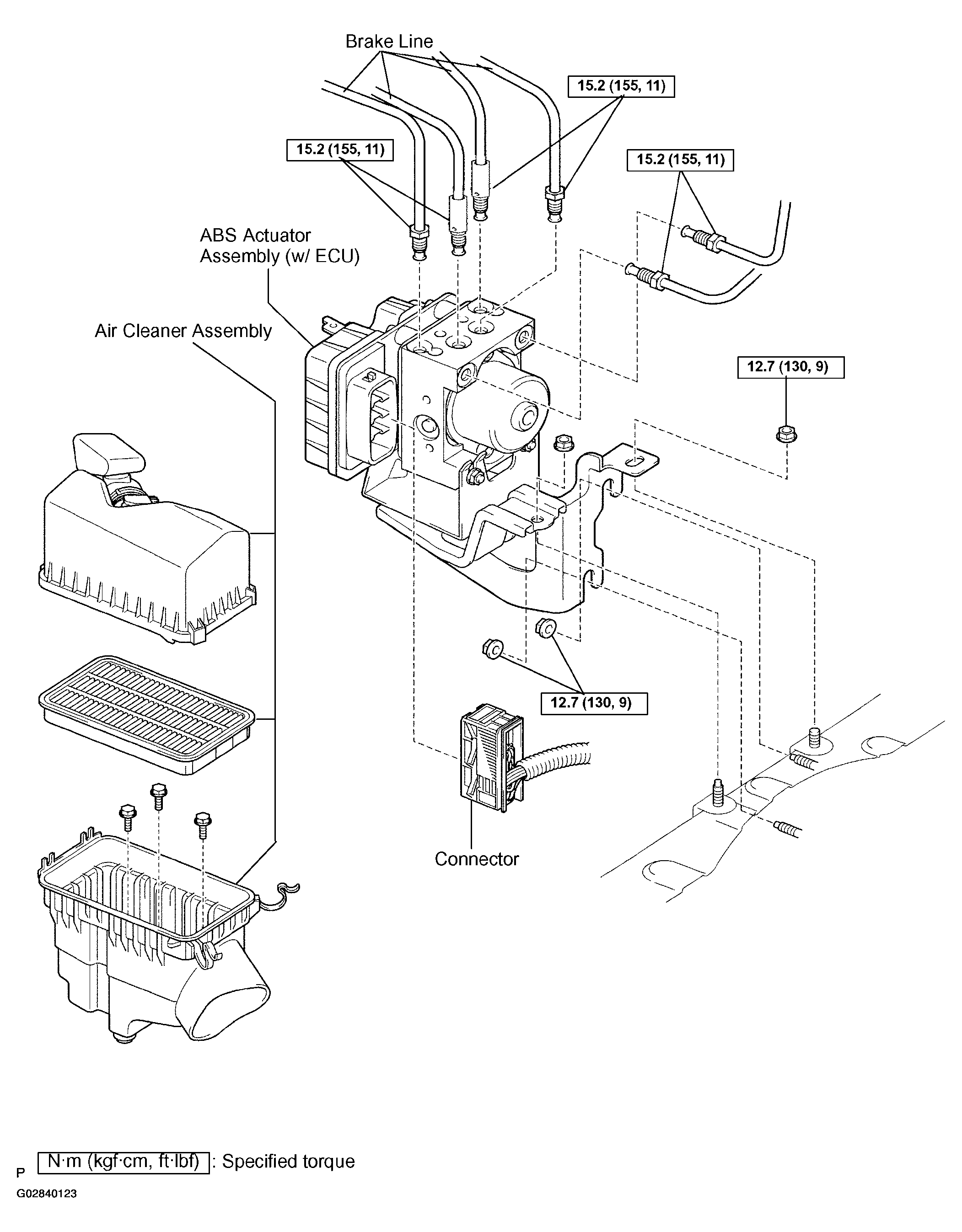

Fig 1: Exploded View Of ABS Actuator Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

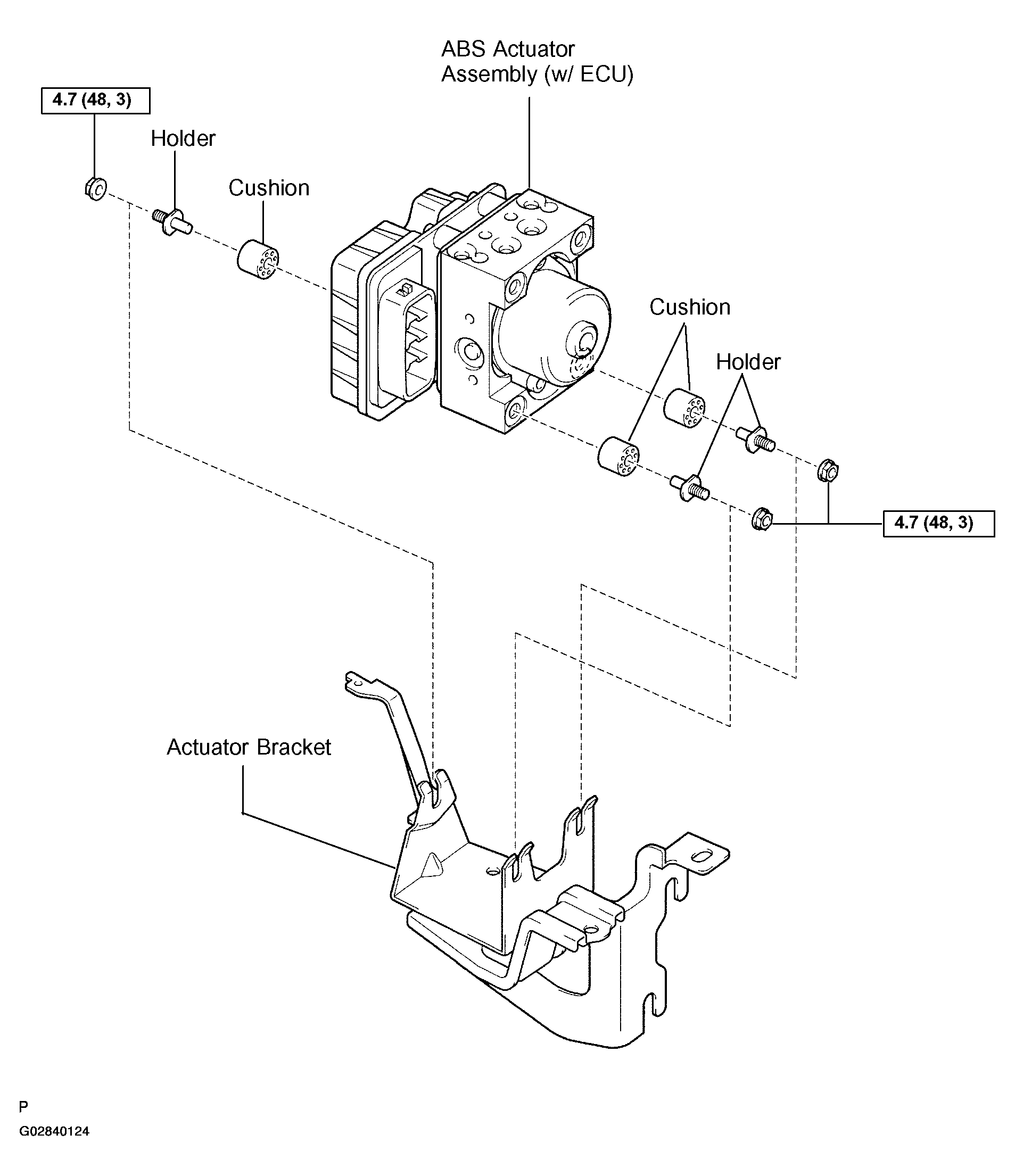

Fig 2: Exploded View Of ABS Actuator Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
