Ignition Switch & Key Unlock Warning System: Location

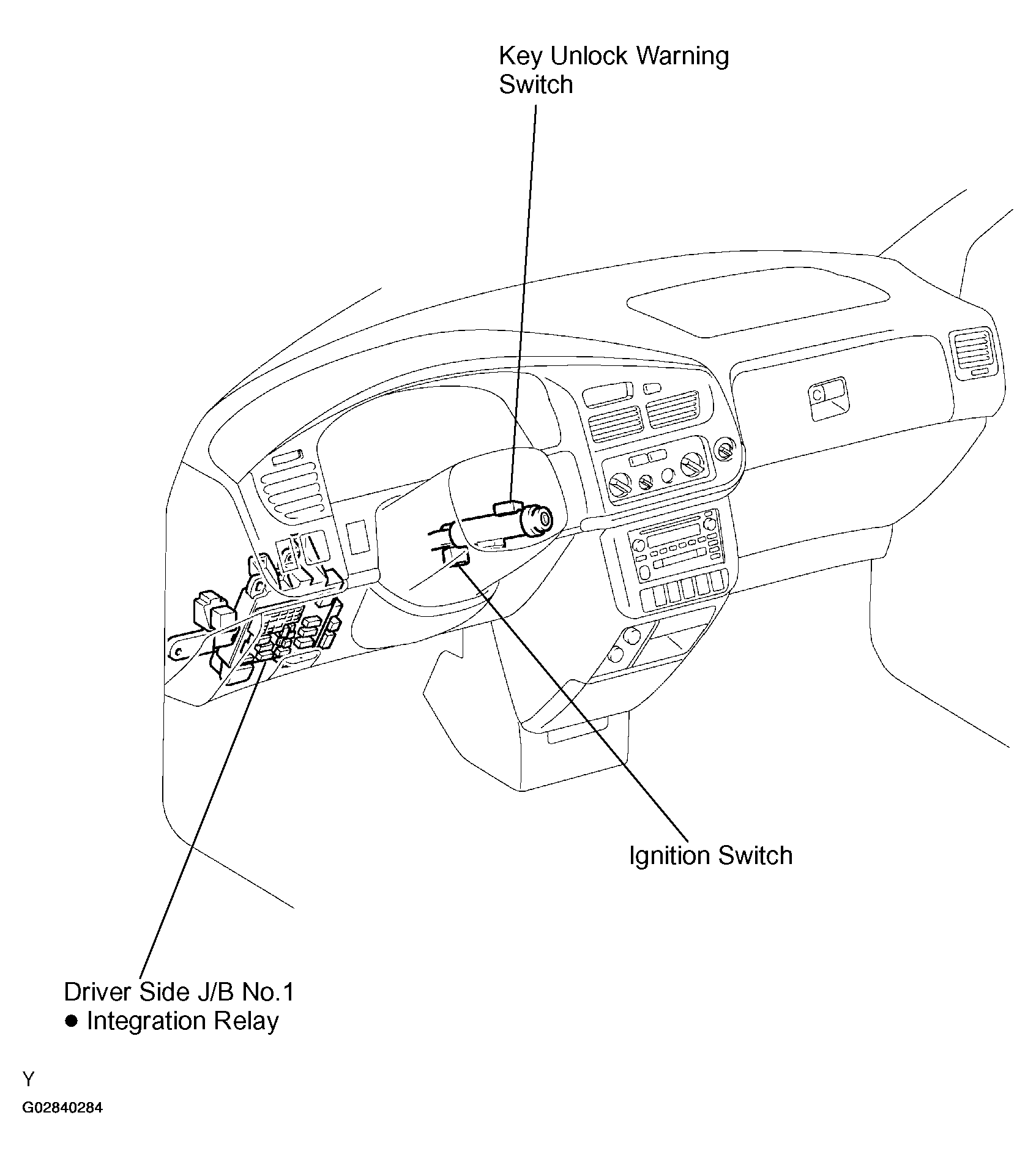

Fig 1: Identifying Ignition Switch & Key Unlock Warning Switch
G02840284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
