Wireless Door Lock Control System: Pre-Check

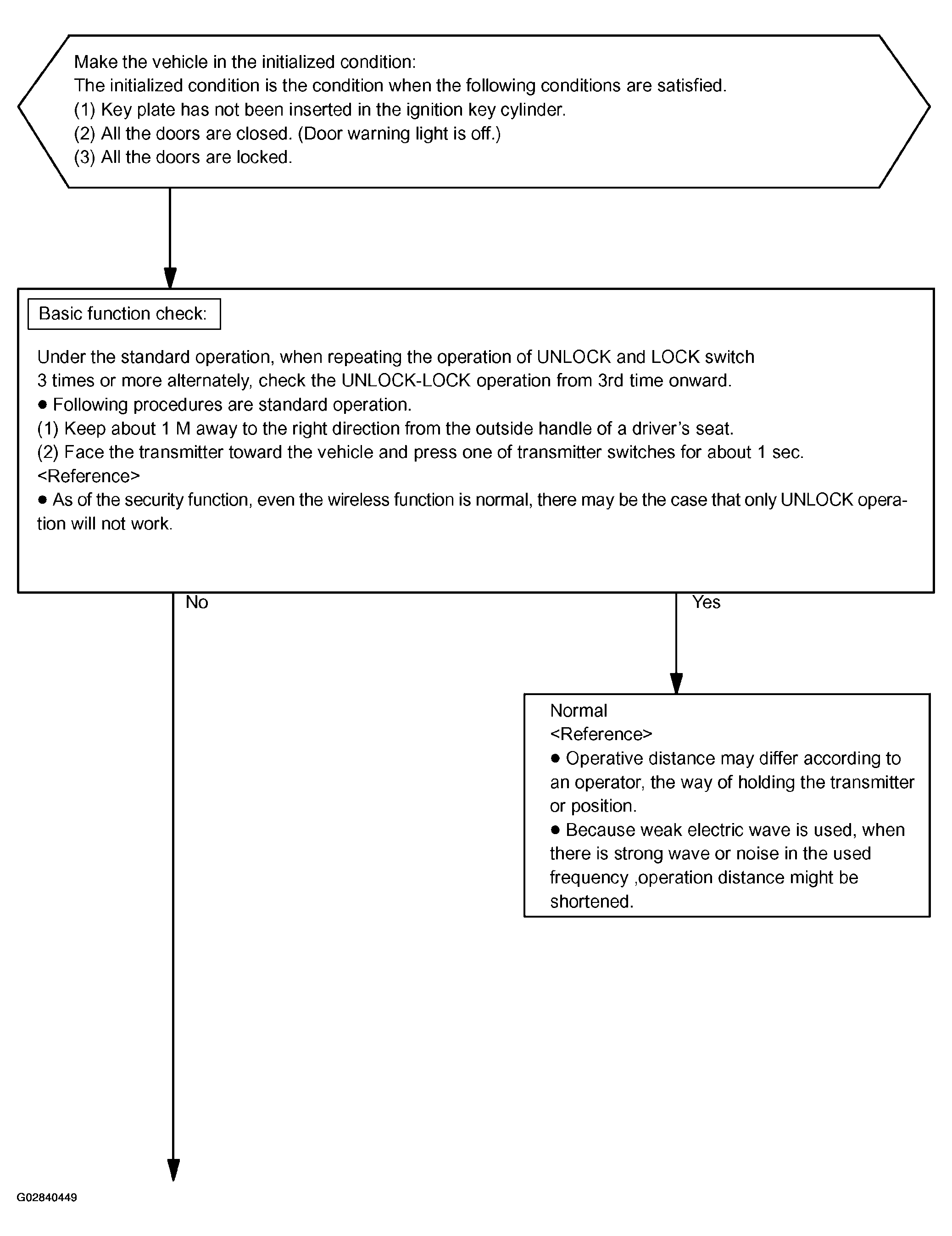

Fig 1: Diagnosis Flow Chart Wireless Door Lock Control System (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

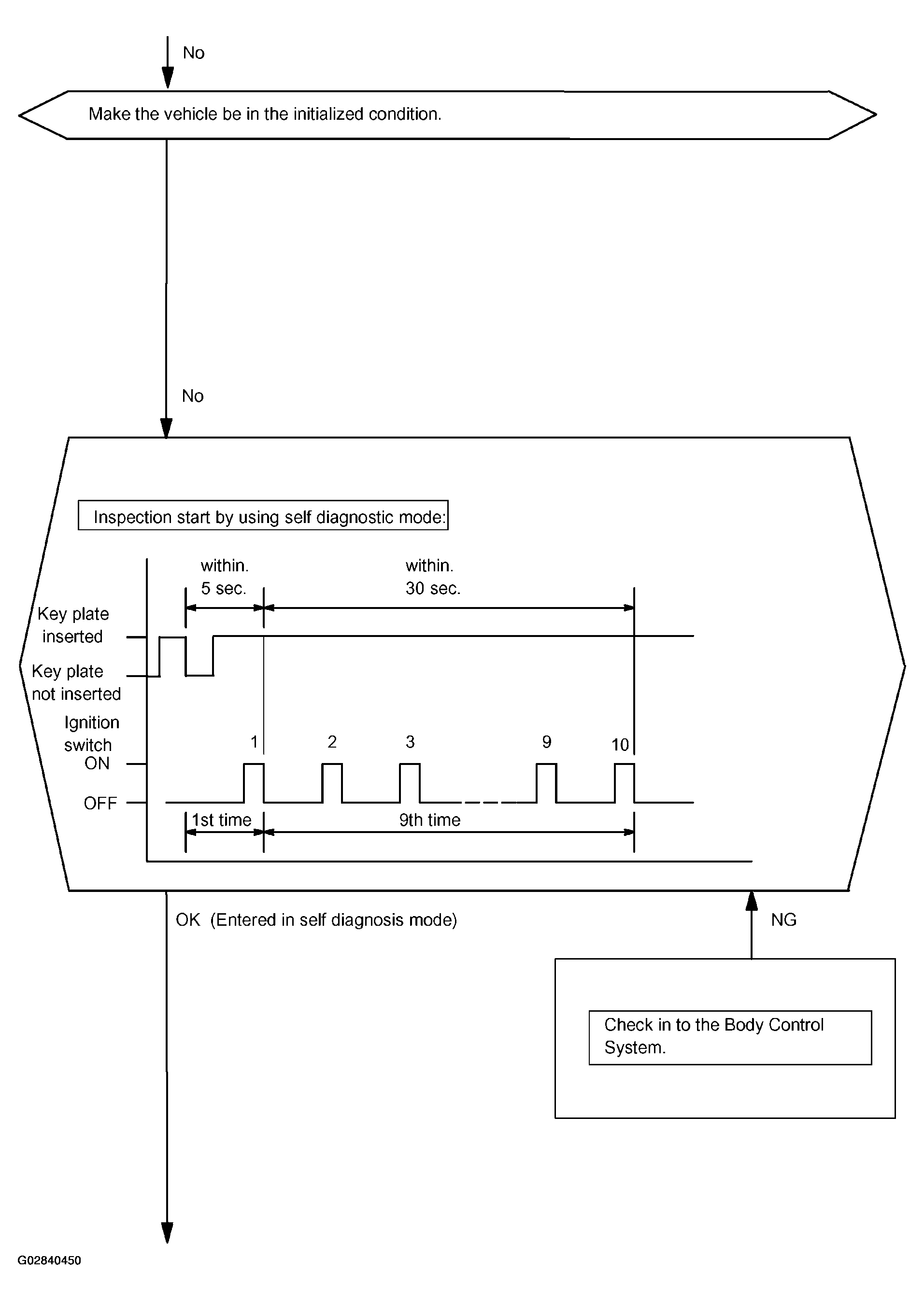

Fig 2: Diagnosis Flow Chart Wireless Door Lock Control System (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

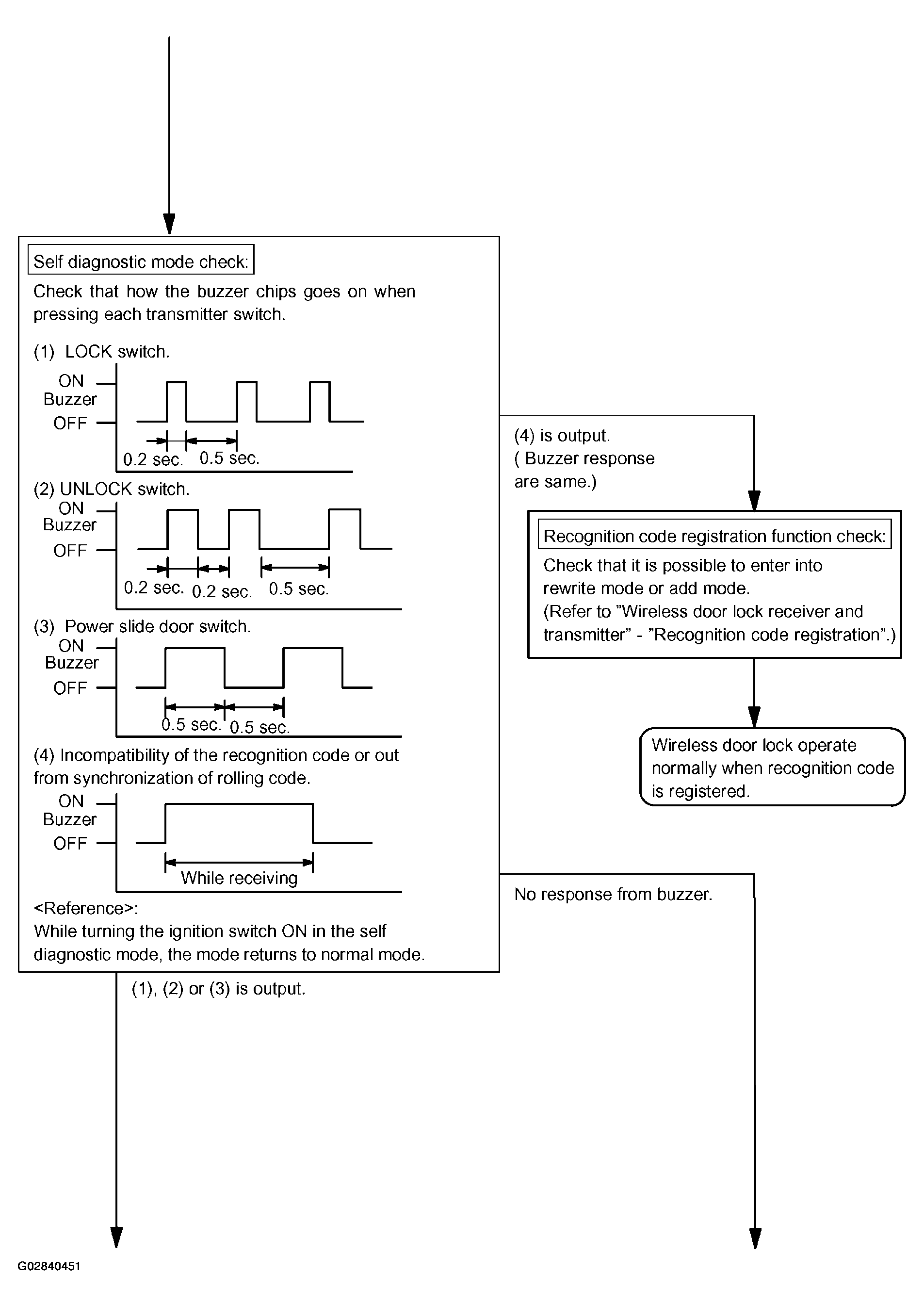

Fig 3: Diagnosis Flow Chart Wireless Door Lock Control System (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

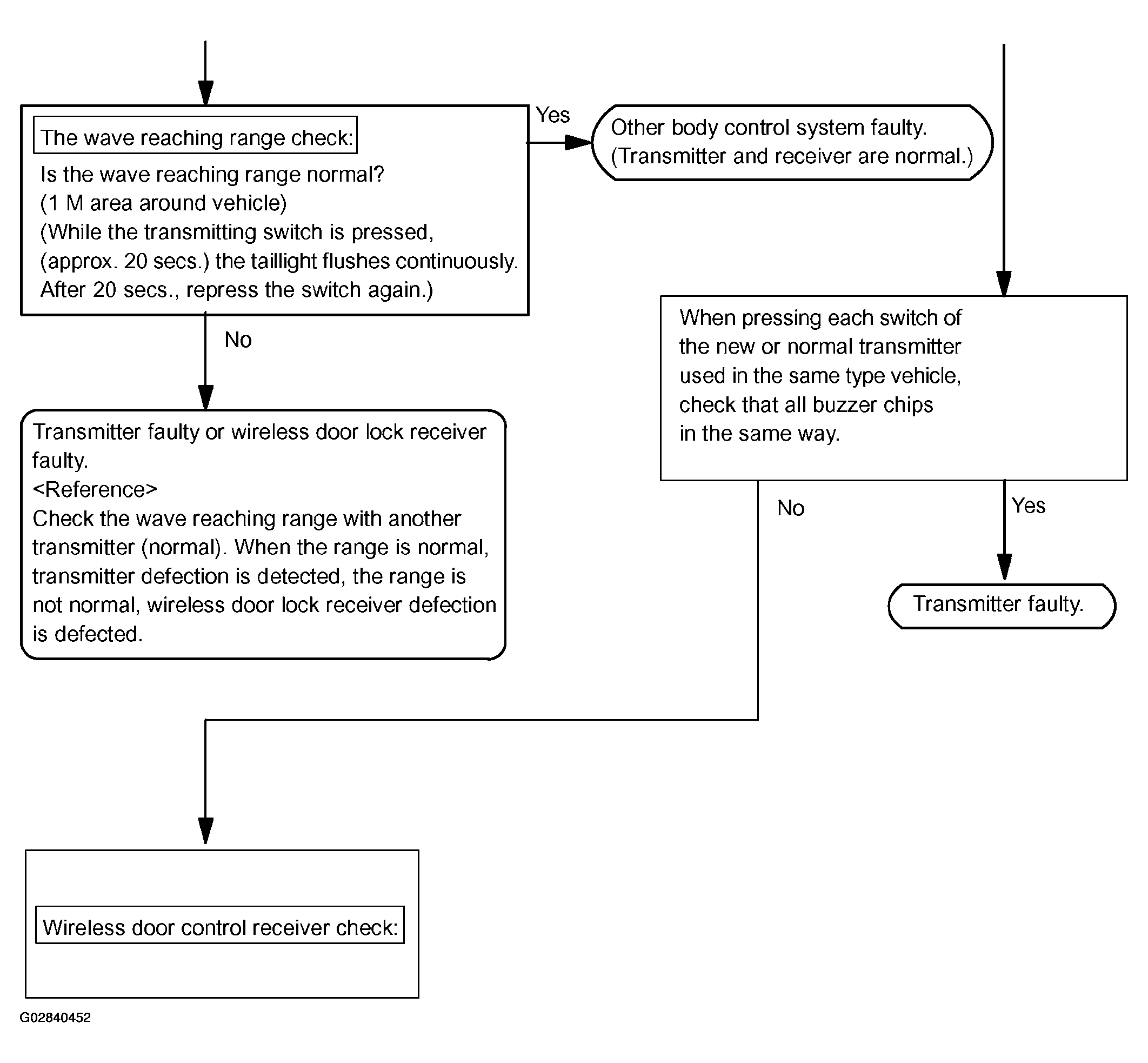

Fig 4: Diagnosis Flow Chart Wireless Door Lock Control System (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
