Engine Mechanical Cylinder Block: Components

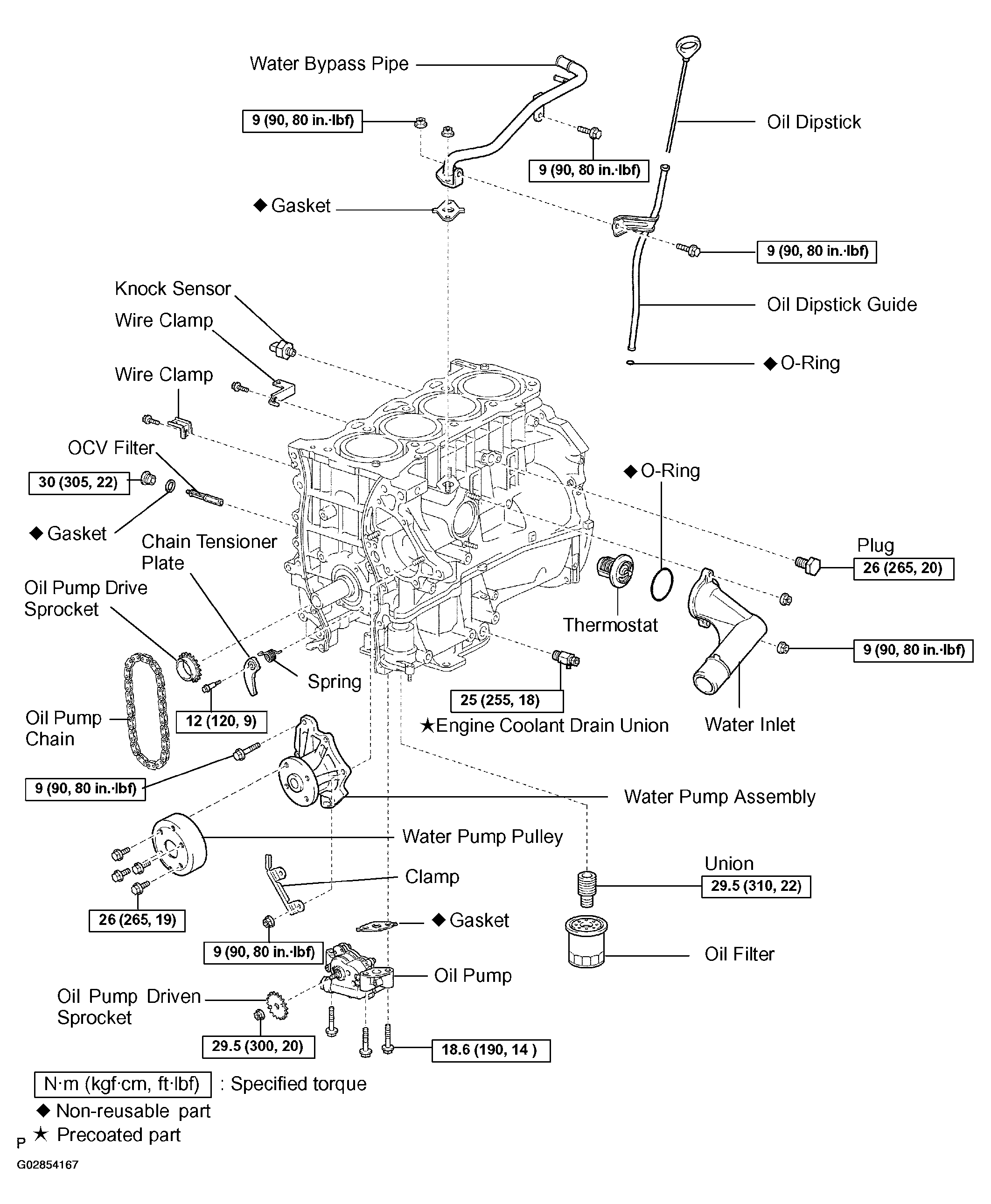

Fig 1: Exploded View Of Cylinder Block Components (1 Of 2)
G02854167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

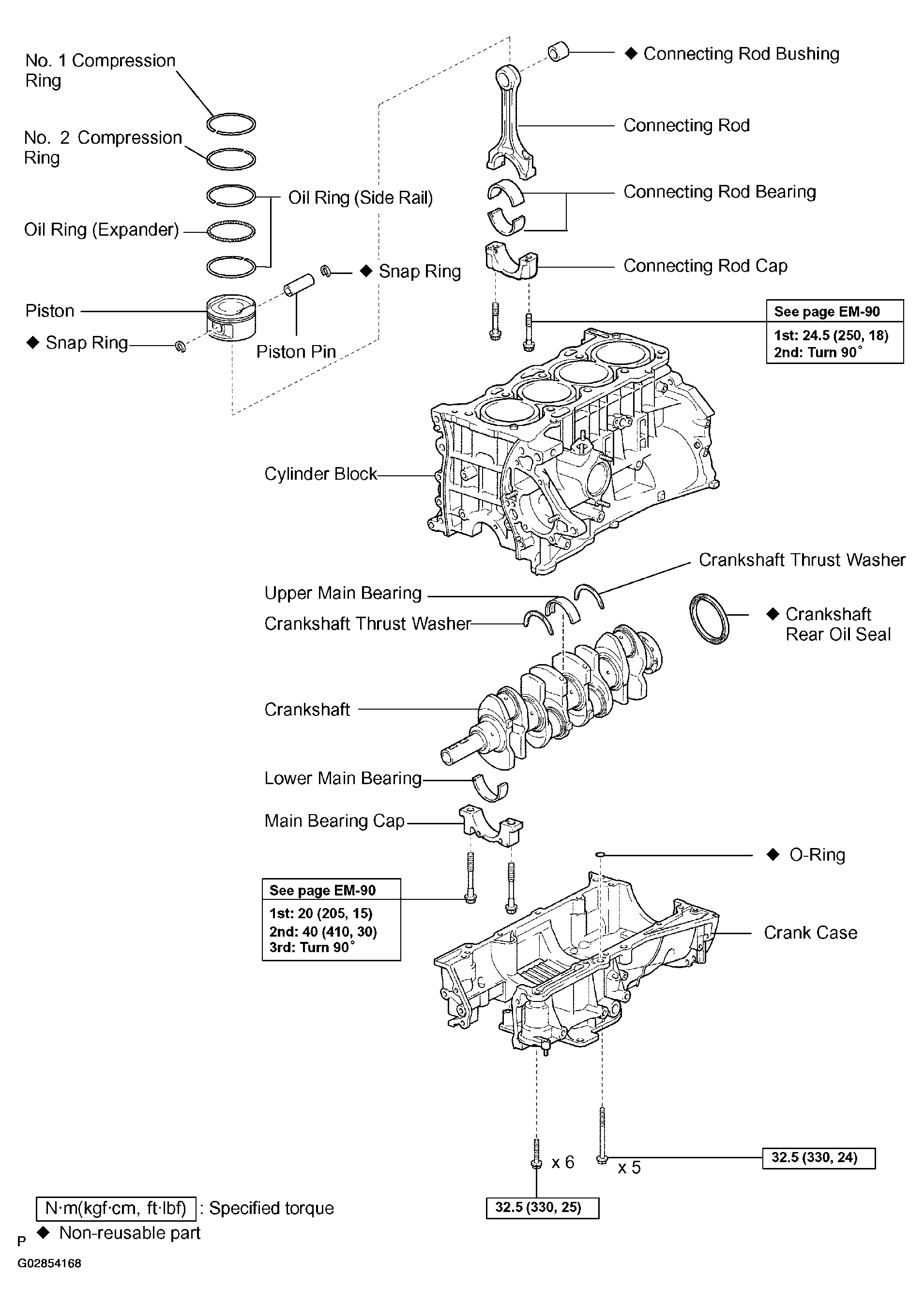

Fig 2: Exploded View Of Cylinder Block Components (2 Of 2)
G02854168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
