Diagnostic Procedure

For wiring diagram, see Fig 1. For testing procedures, see Fig 2.

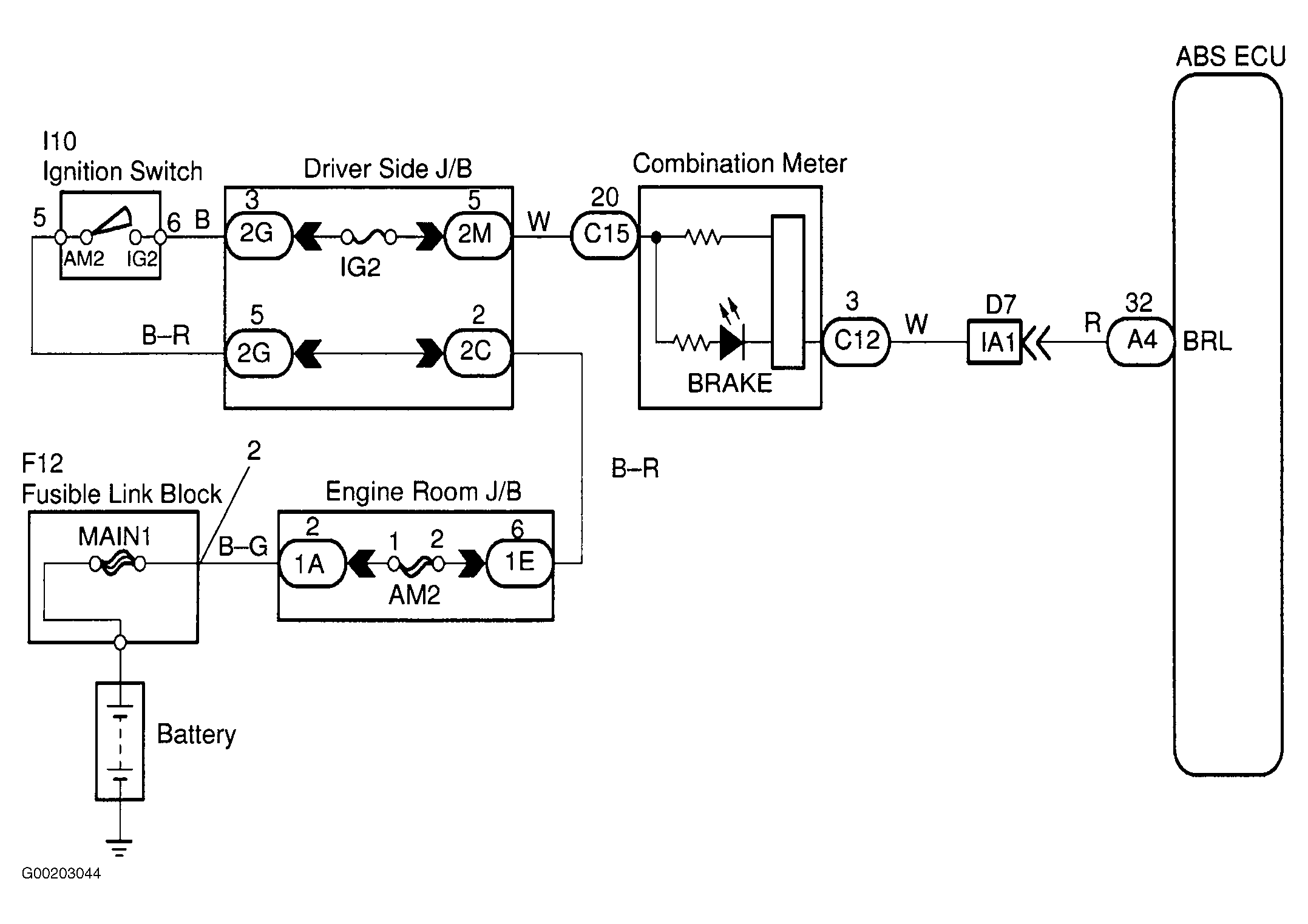

Fig 1: Brake Warning Light Wiring Diagram
G00203044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

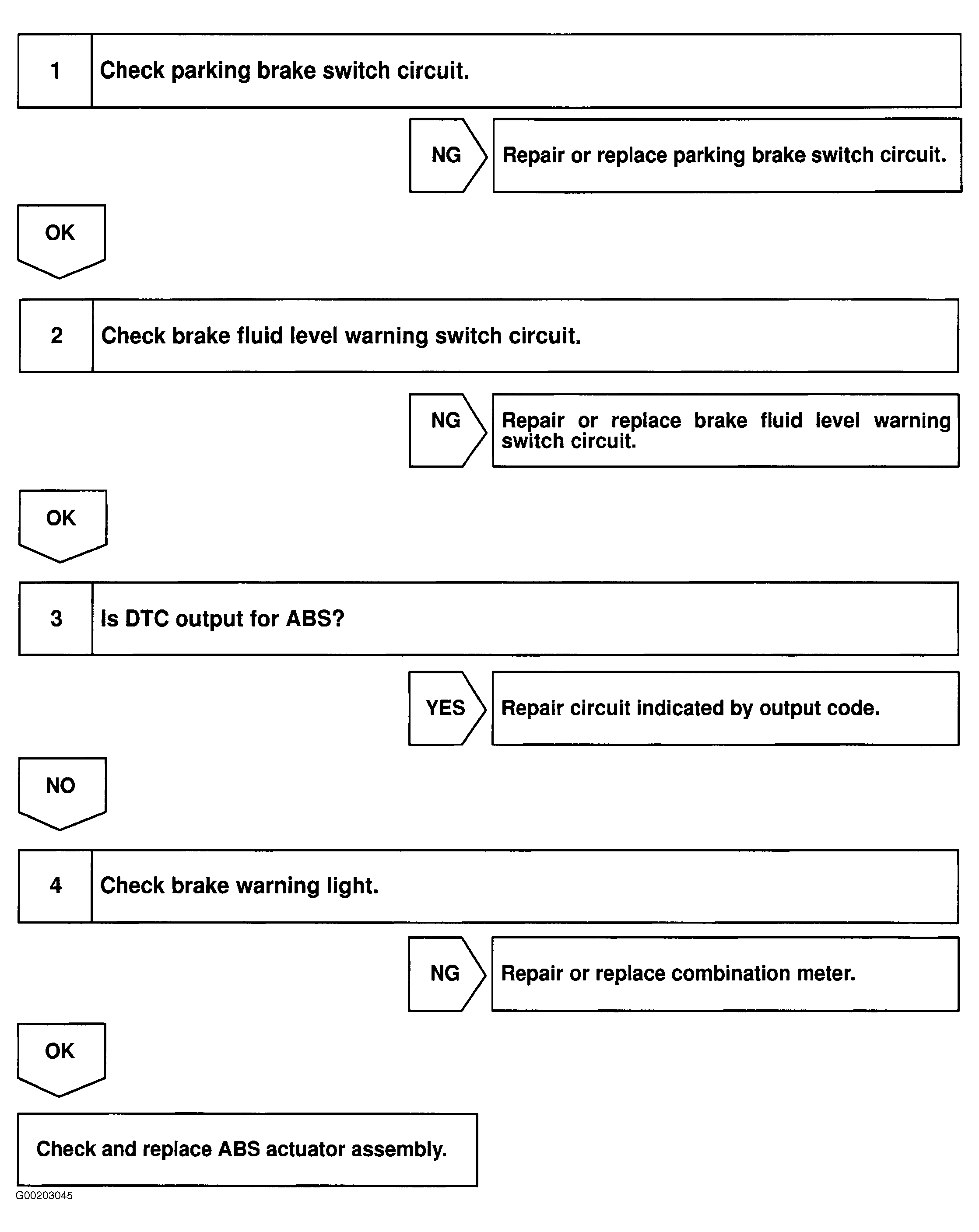

Fig 2: Brake Warning Light Testing Procedures
G00203045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
