Terminals Of Ecu

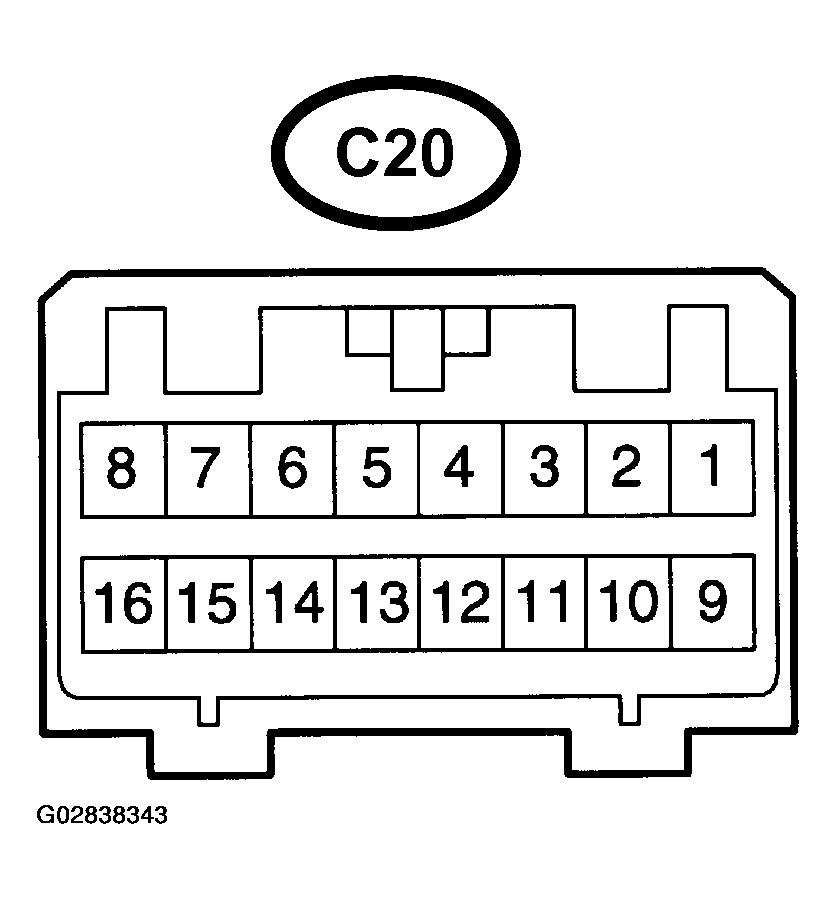

Fig 1: Identifying ECU Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

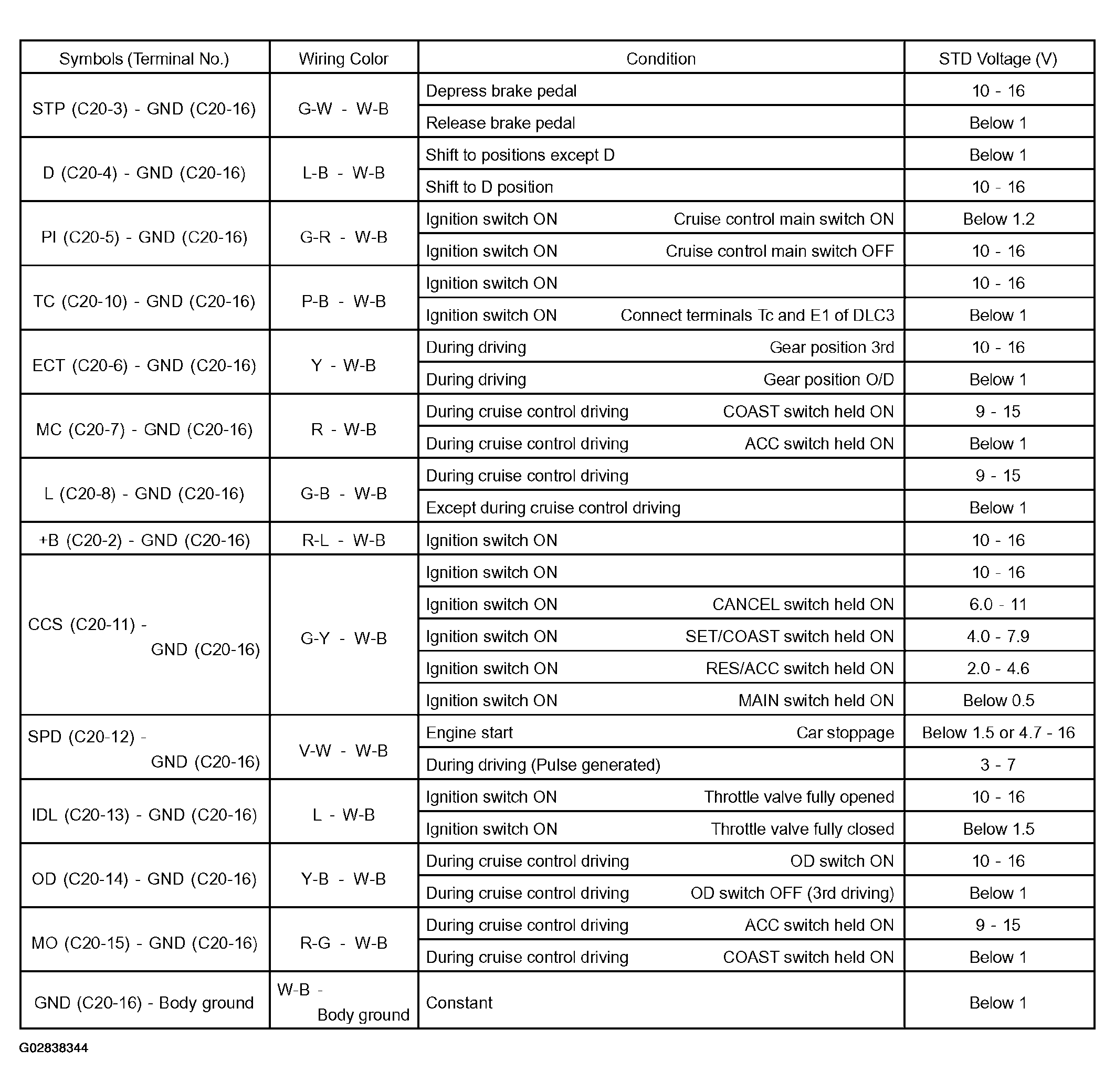

Fig 2: Voltage Specifications
