Fuse Block

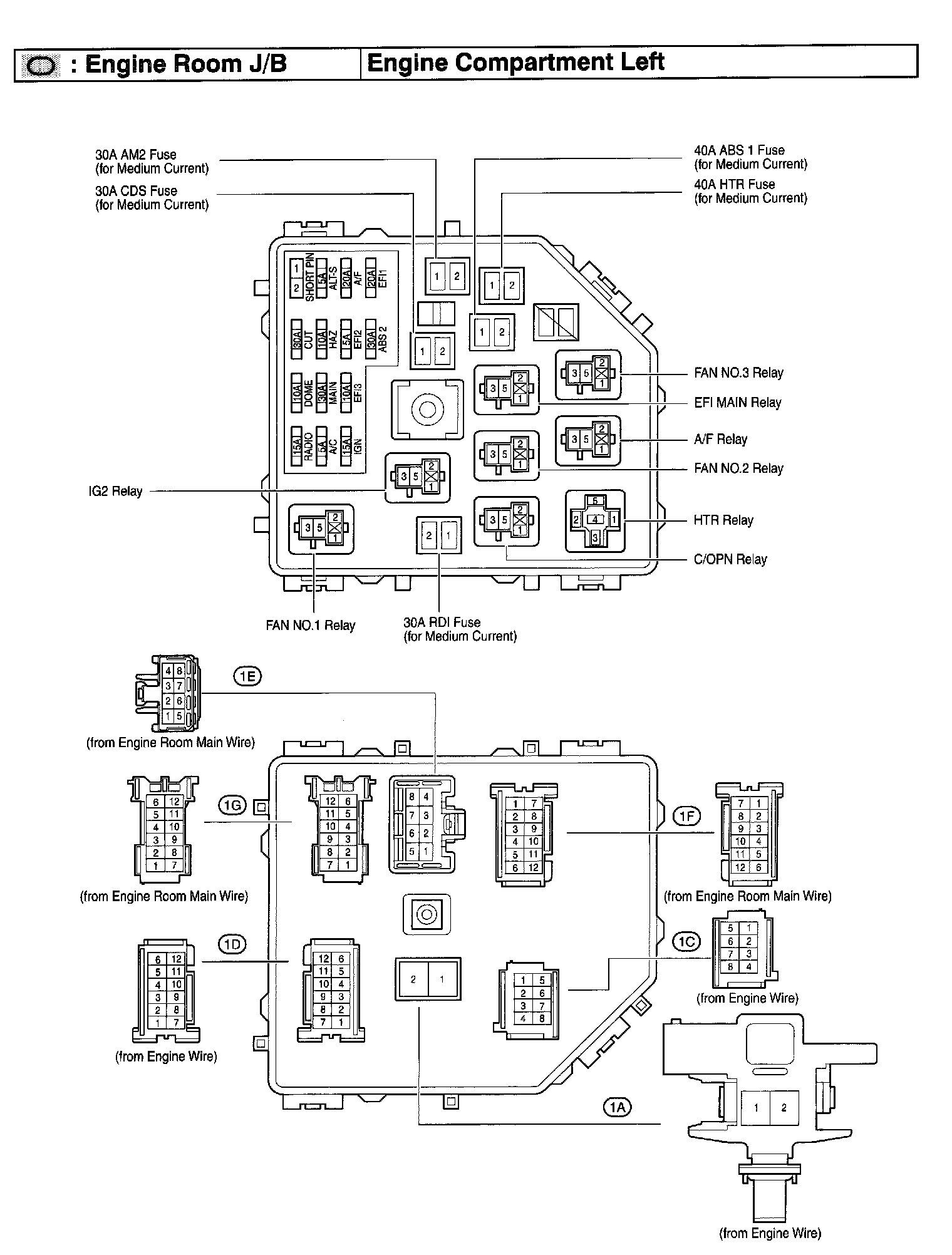

Engine Room J/B - Engine Compartment Left:

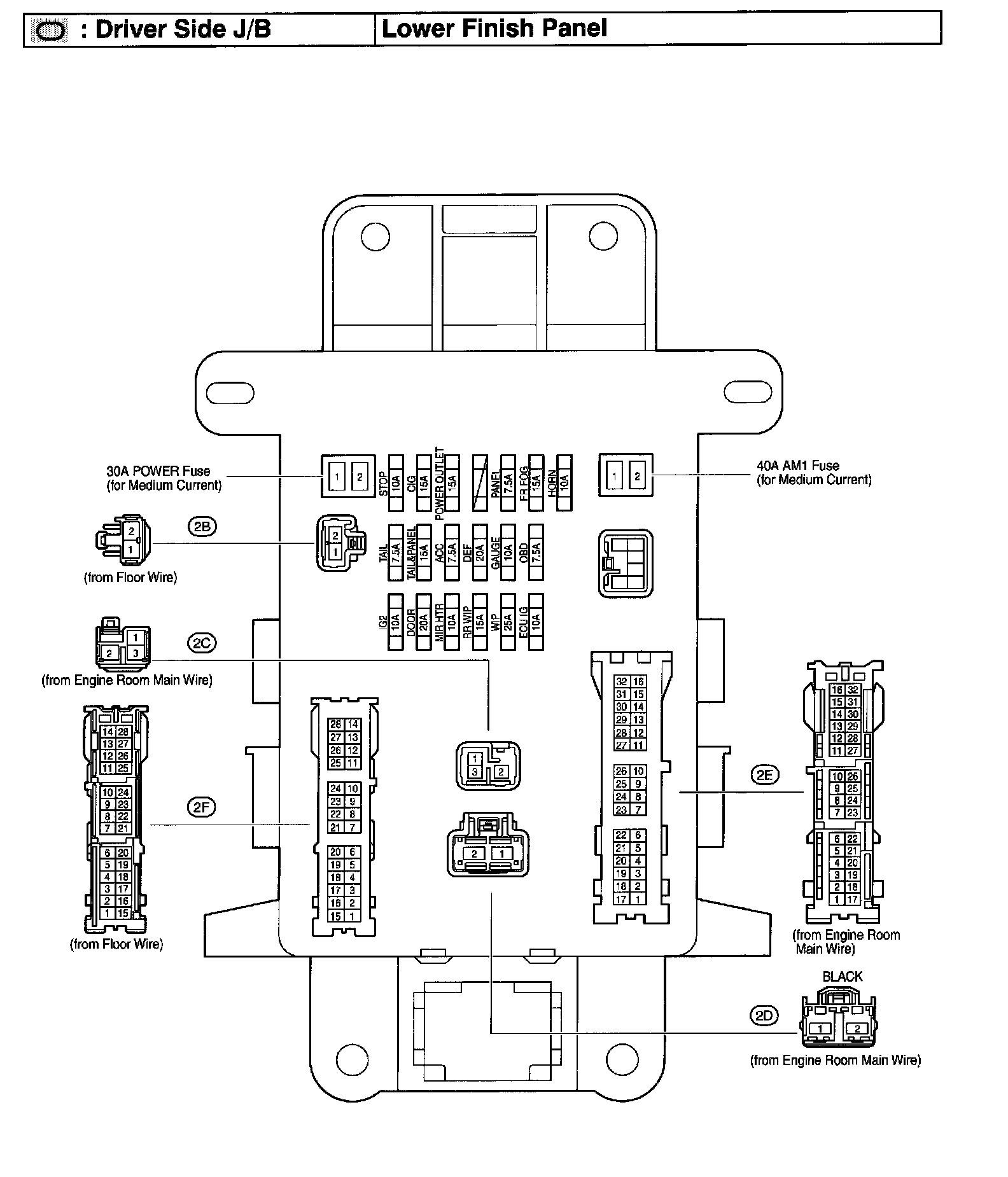

Driver Side J/B - Lower Finish Panel:
Driver Side J/B - Lower Finish Panel:

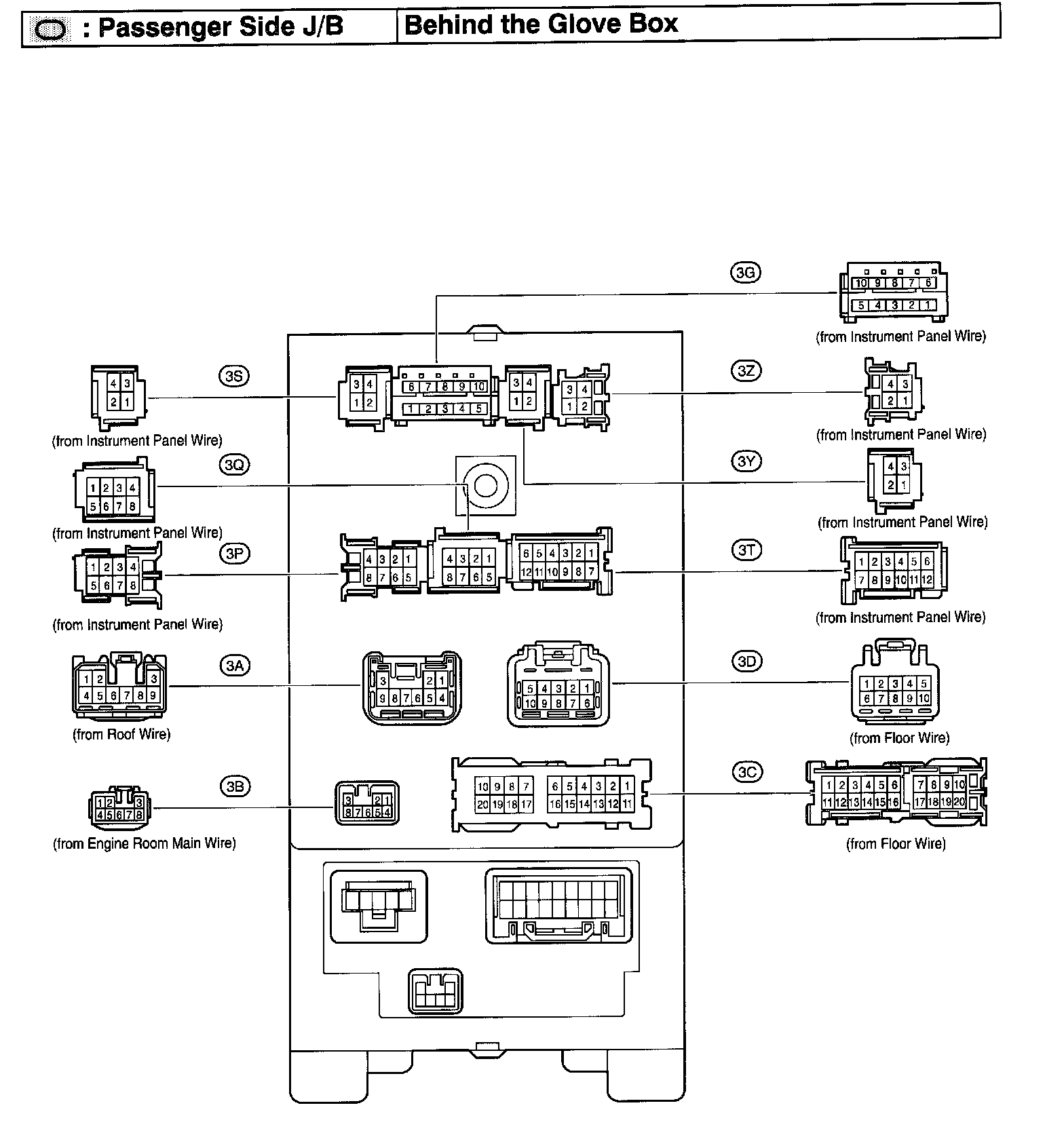

Passenger Side J/B - Behind The Glove Box:
