Shift Lock System: Location

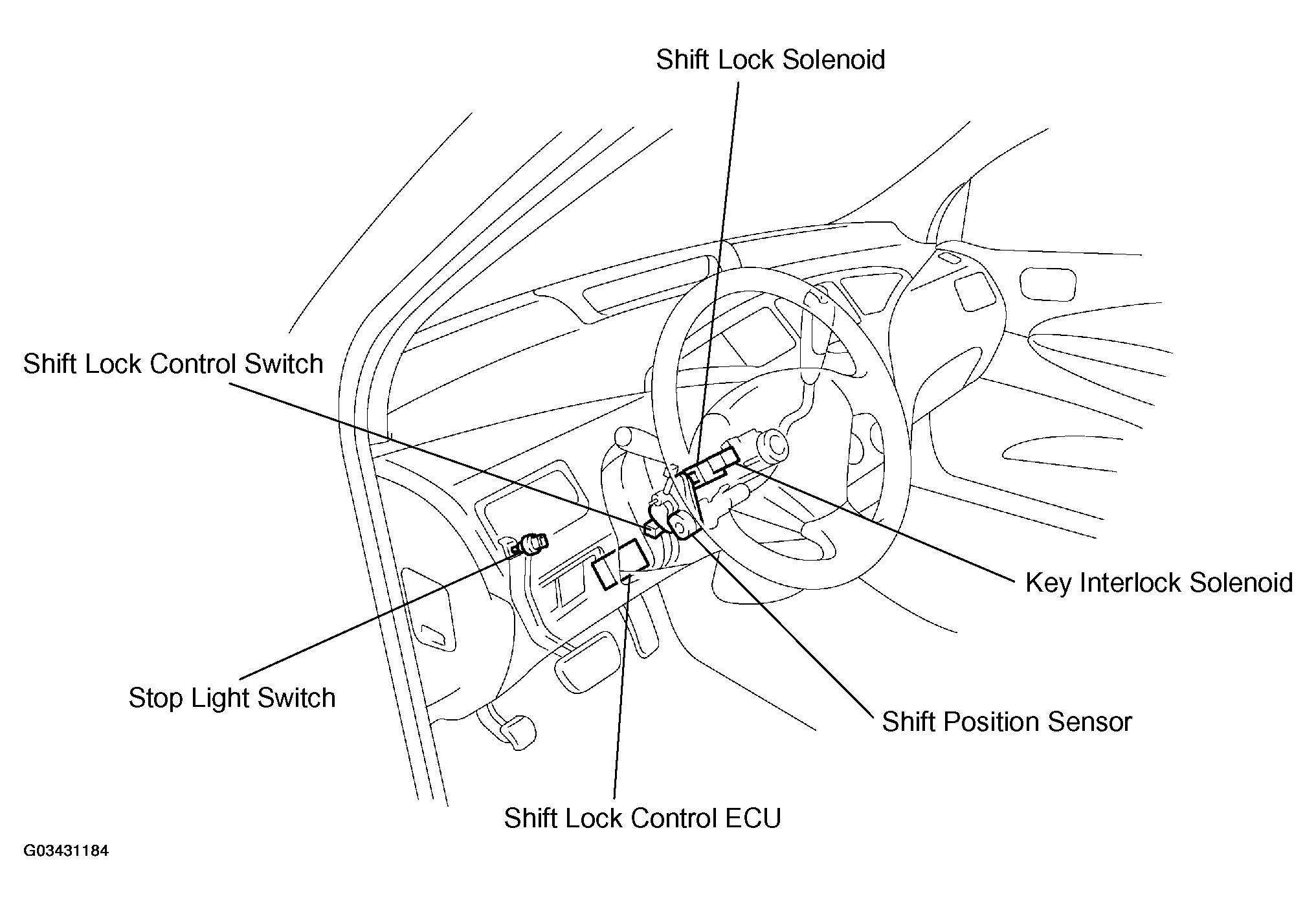

Fig 1: Identifying Shift Lock System Components Location
G03431184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
