Tilt Steering Column: Components

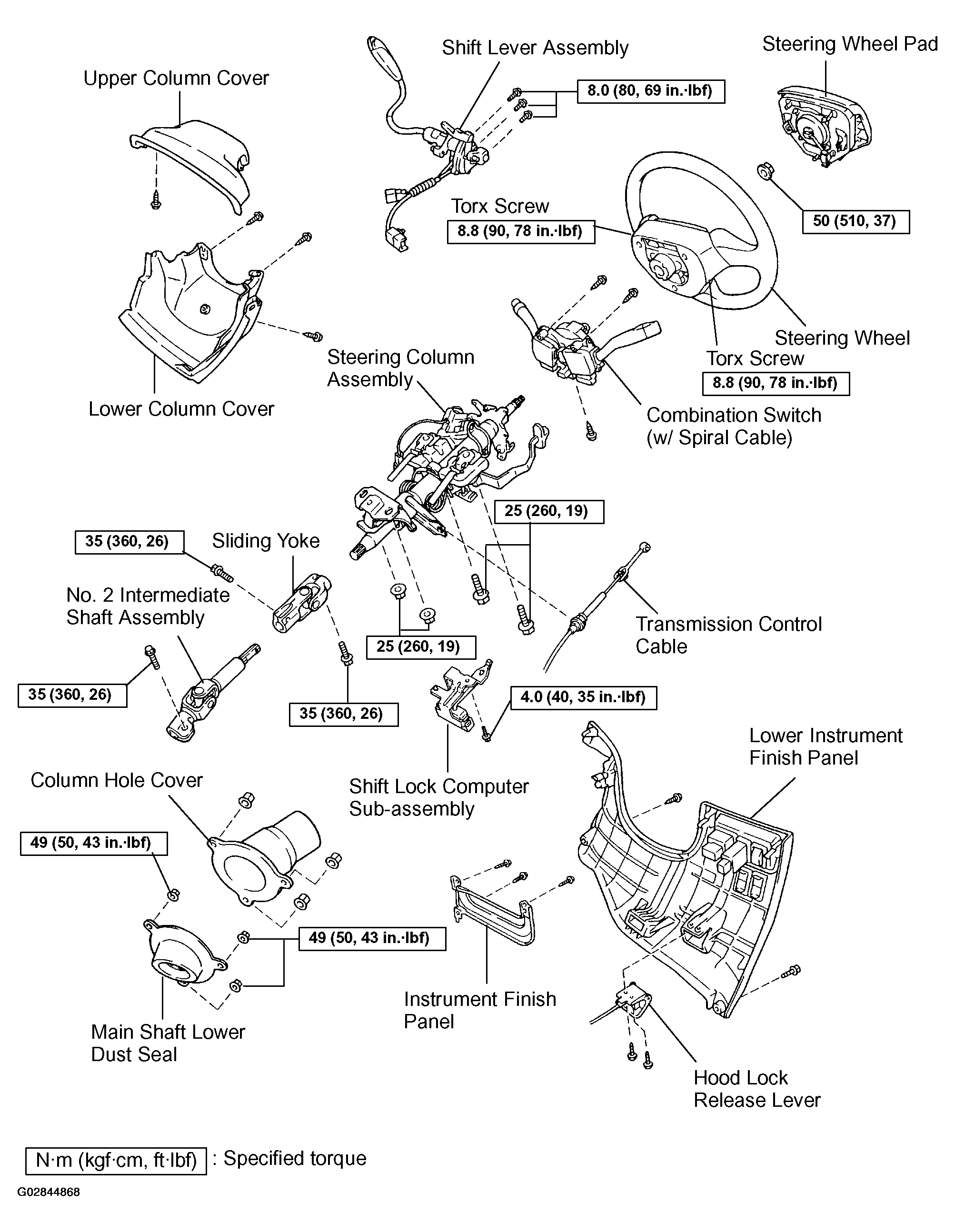

Fig 1: Identifying Tilt Steering Column Components (1 Of 2)
G02844868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

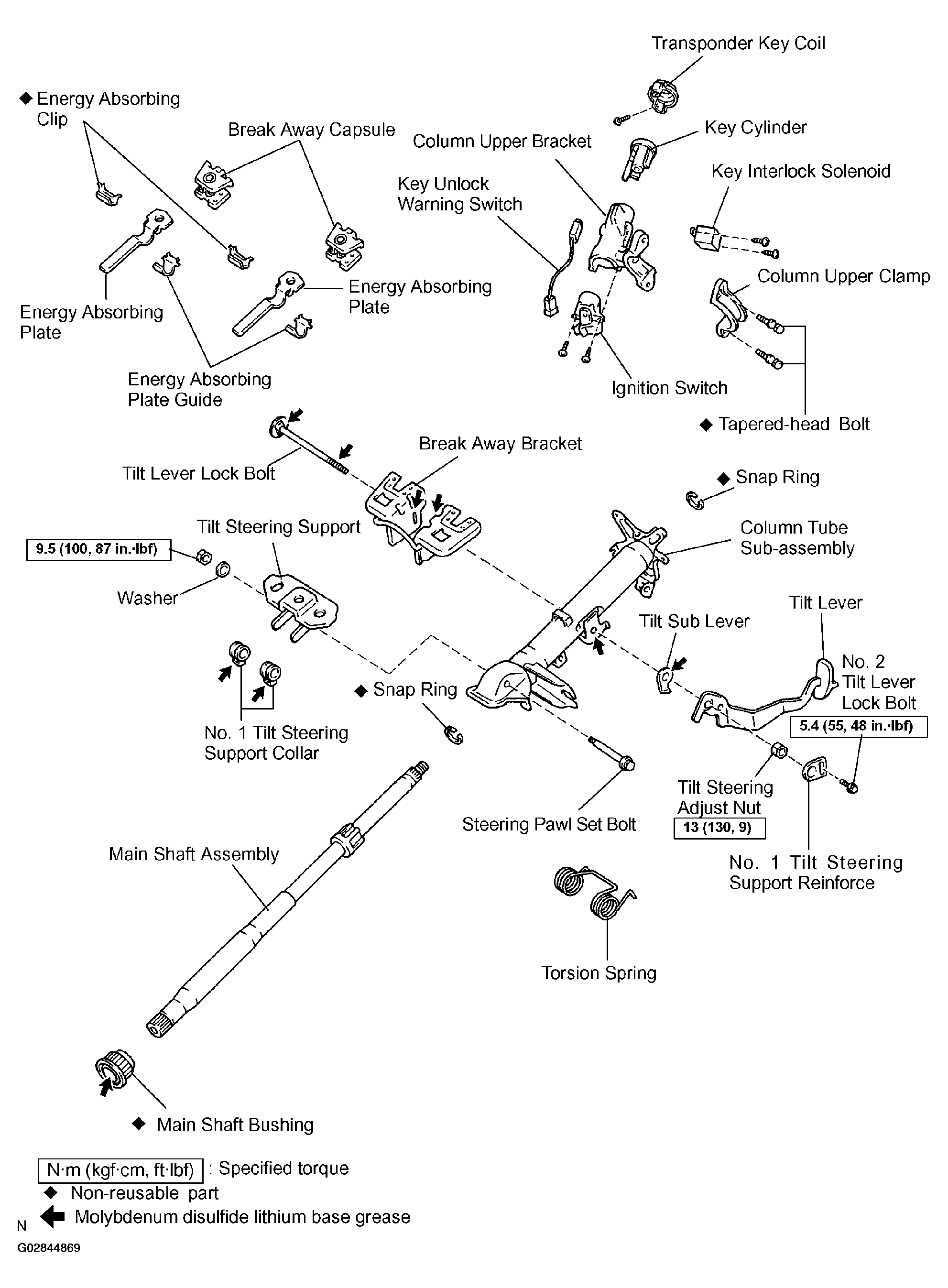

Fig 2: Identifying Tilt Steering Column Components (2 Of 2)
G02844869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
