Seat Belt: Components

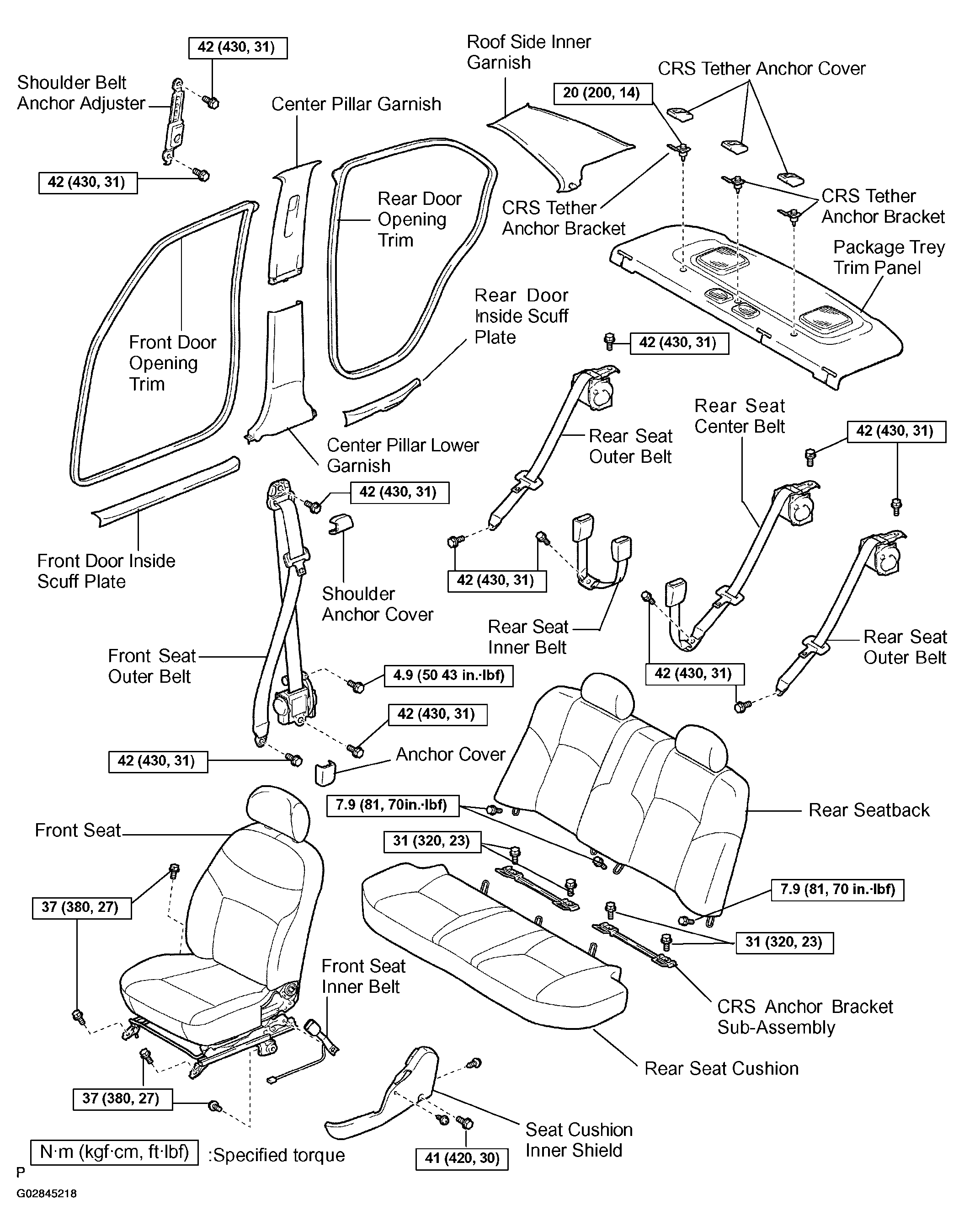

Fig 1: Exploded View Of Components For Seat Belt Removal
G02845218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
