Confirmation Driving Pattern

For confirmation driving pattern procedure, see Fig 1.

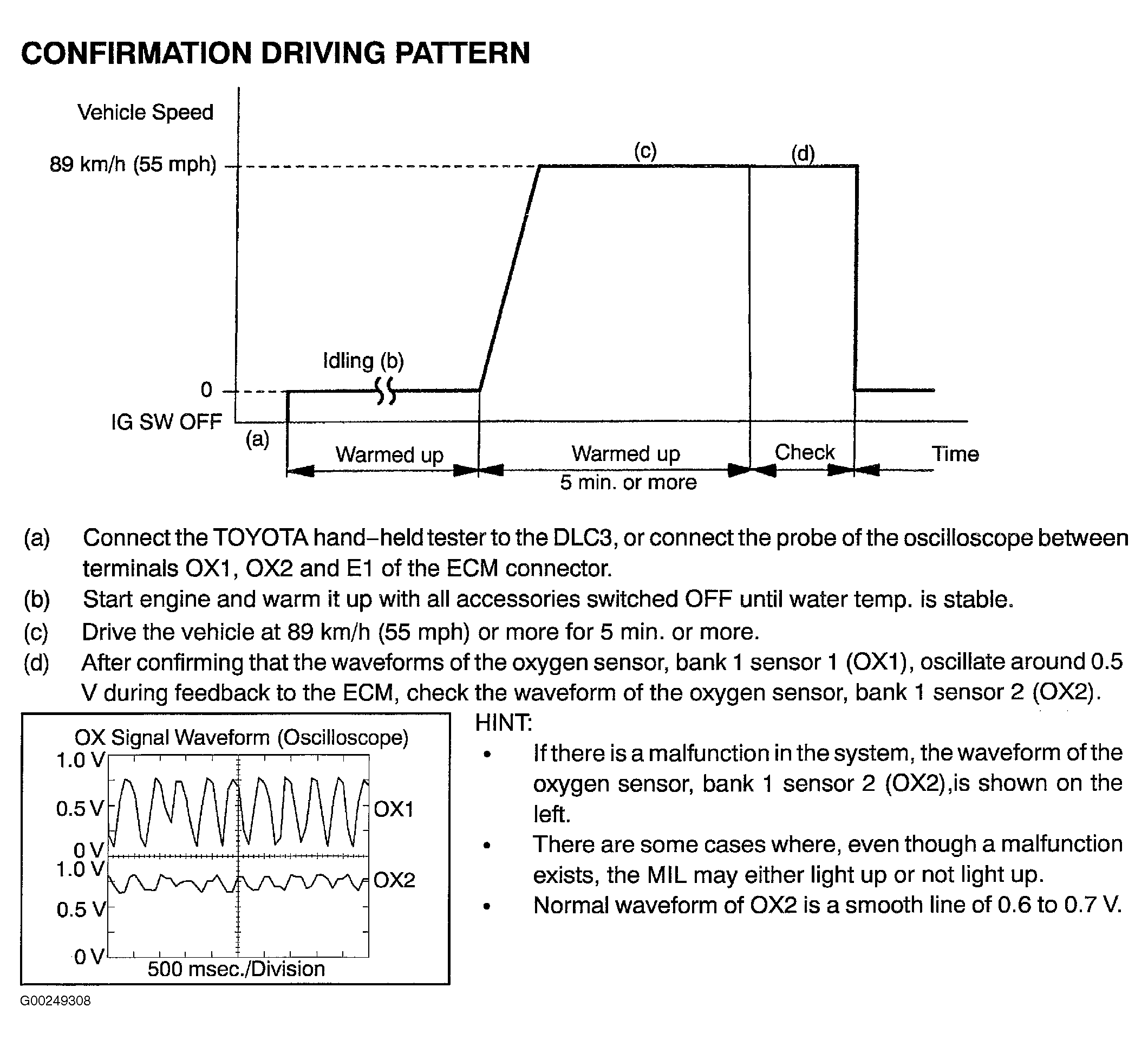

Fig 1: Confirmation Driving Pattern
G00249308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
