Circuit Description & Possible Causes

For circuit description, DTC detection conditions and possible causes, see Fig 1.

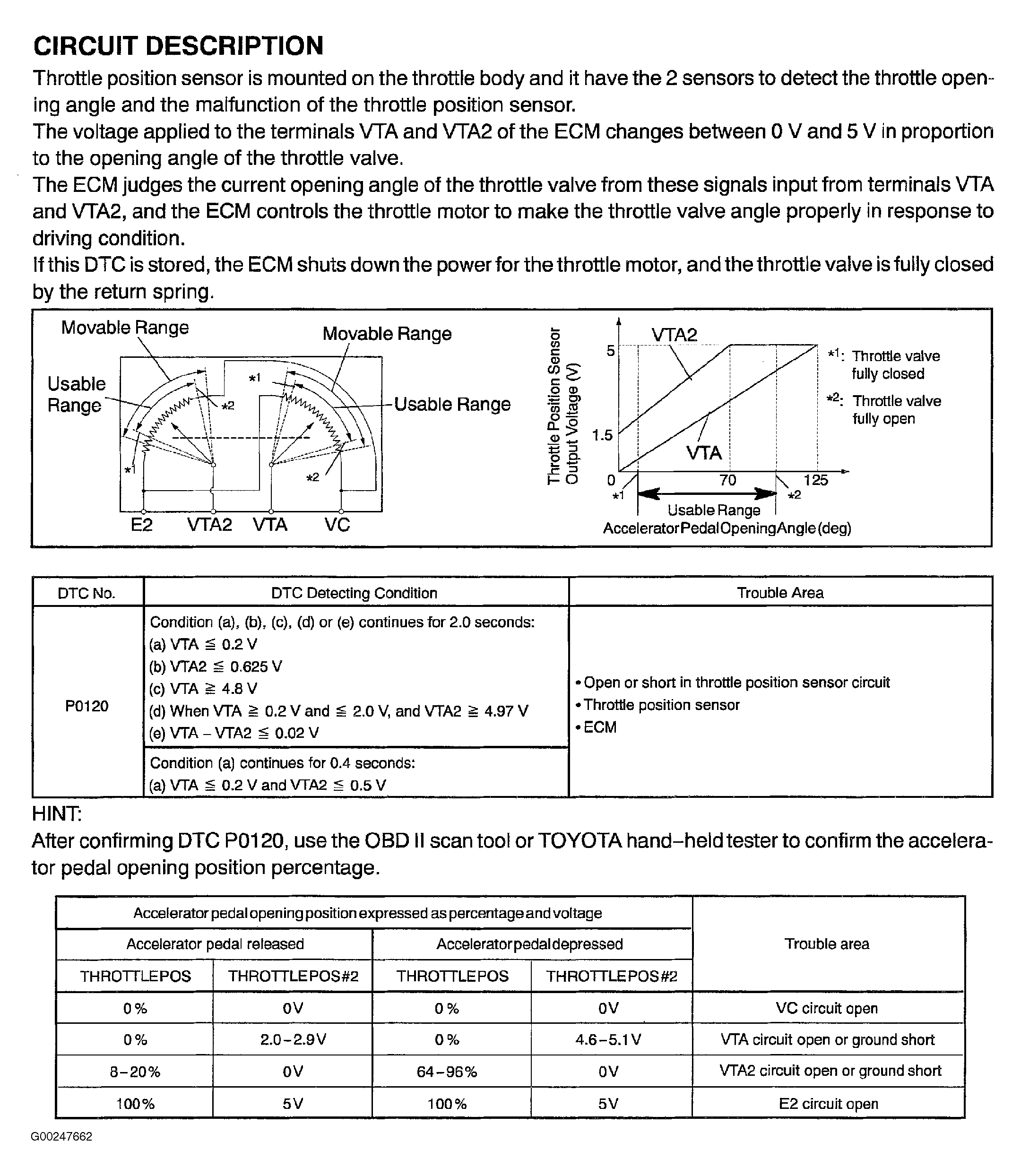

Fig 1: Circuit Description, DTC Detection Conditions & Possible Causes
G00247662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
