Output Shaft ASSY (C60): Components

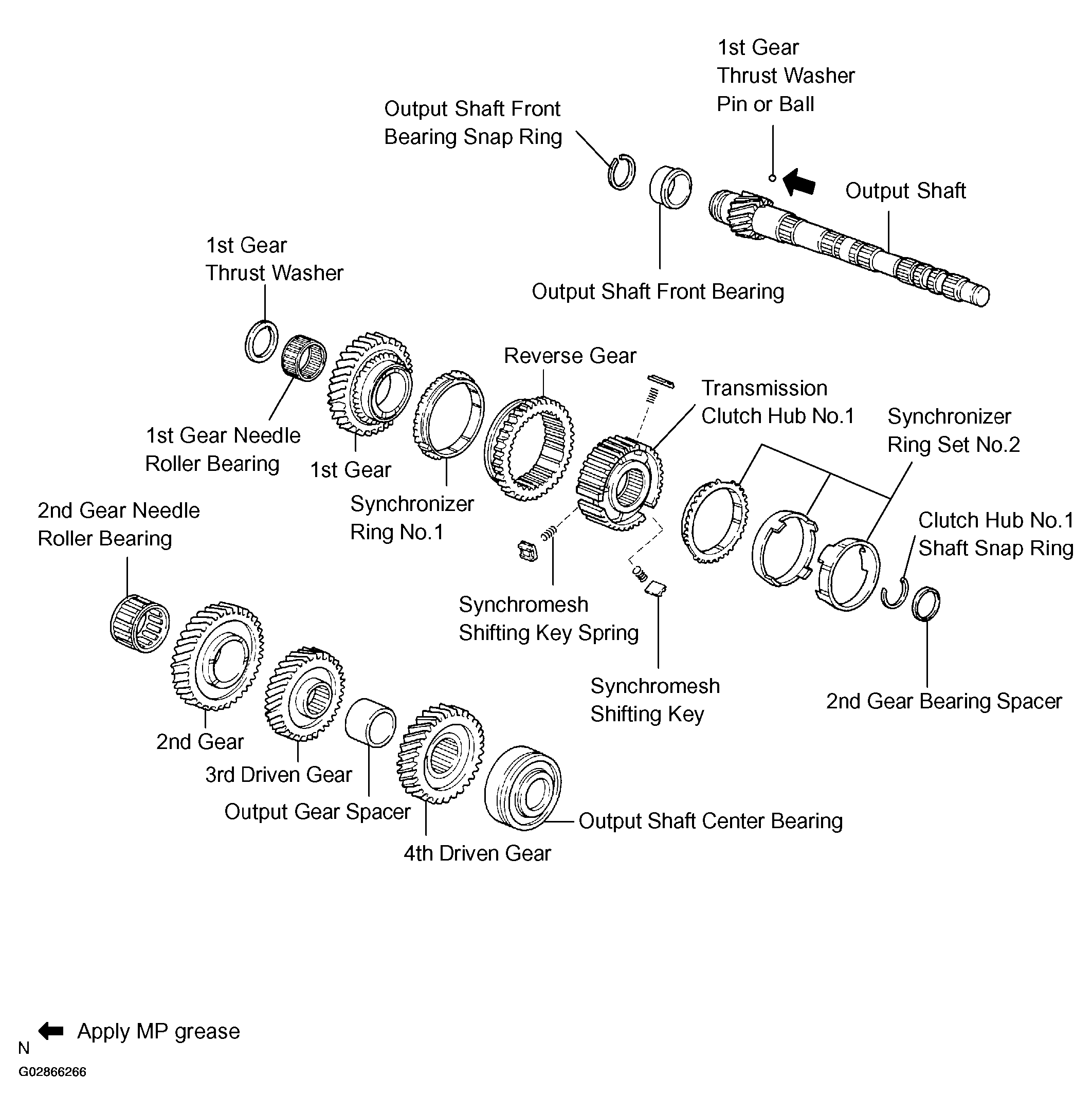

Fig 1: Exploded View Of Output Shaft Assembly (C60)
G02866266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
