Input Shaft ASSY (C59): Components

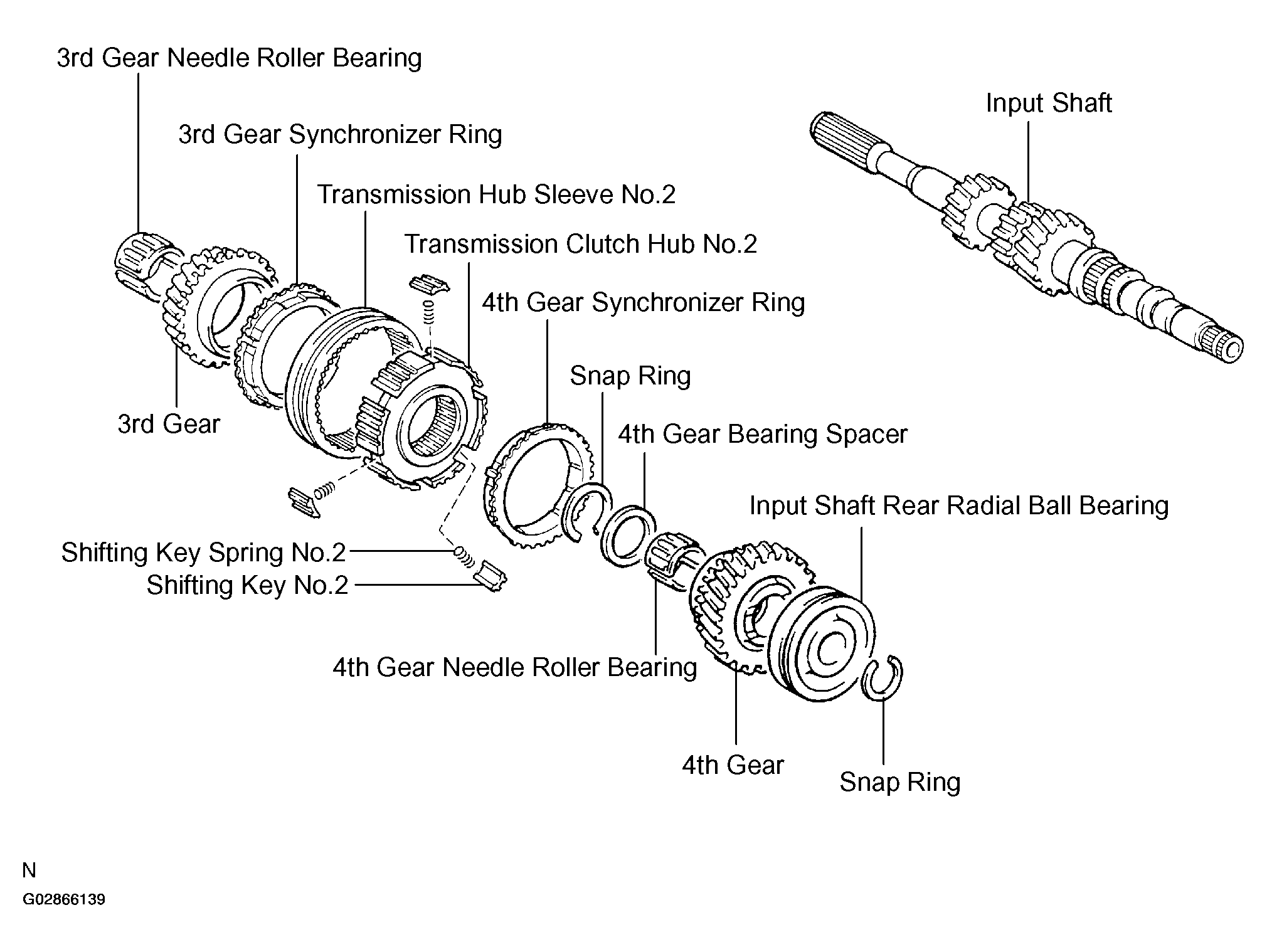

Fig 1: Exploded View Of Input Shaft Assembly (C59)
G02866139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
