Vehicle Speed Sensor: Echo

For testing procedures of Vehicle Speed Sensor (VSS), see Fig 1.

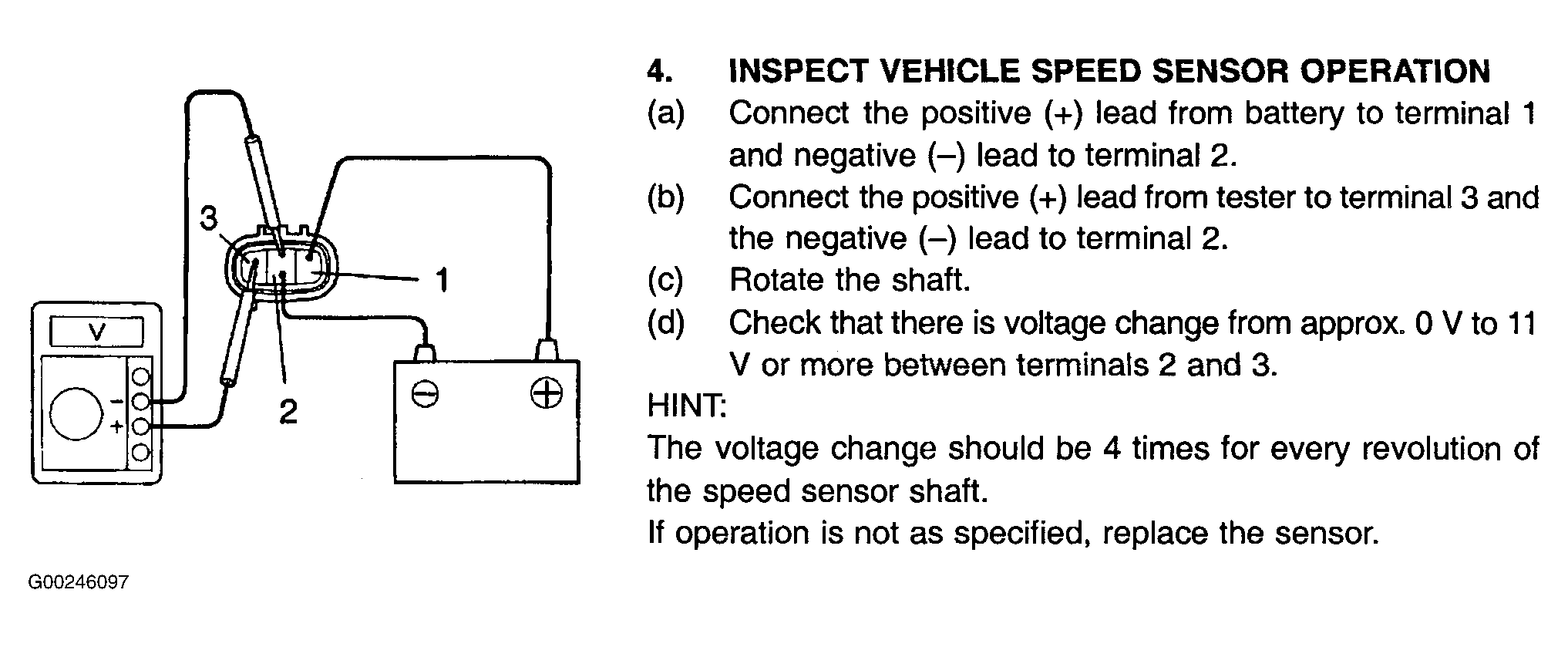

Fig 1: Testing Vehicle Speed Sensor (ECHO)
G00246097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
